LF DriverROSSO series
SB Audience
SB Audience ROSSO-15SW800
SB Audience ROSSO-15SW800 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 45Hz, Qts 0.46, Vas 87.6L, Xmax 11.3mm, sensitivity 94.2dB, plus 959cm³ Vd and 94 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £176.66.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
94.2dB
EBP
94
Either alignment
Vd
959cm³
T/S Parameters
Valid
Fs45Hz
Qts0.46
Qes0.48
Qms10.0
Vas87.6L
Re5.2Ω
Le1.18mH
BL21.1Tm
Sd850cm²
Mms144g
Xmax11.3mm
SPL94dB
Power800W
Impedance8Ω
Min Impedance5.2Ω
F Low45Hz
F High4600Hz
Voice Coil99mm
Flux Density1.03T
Pricing & availability
Price definitionsPrice movement
Best current price
£176.66
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

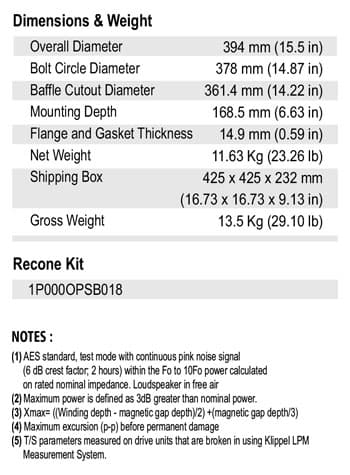

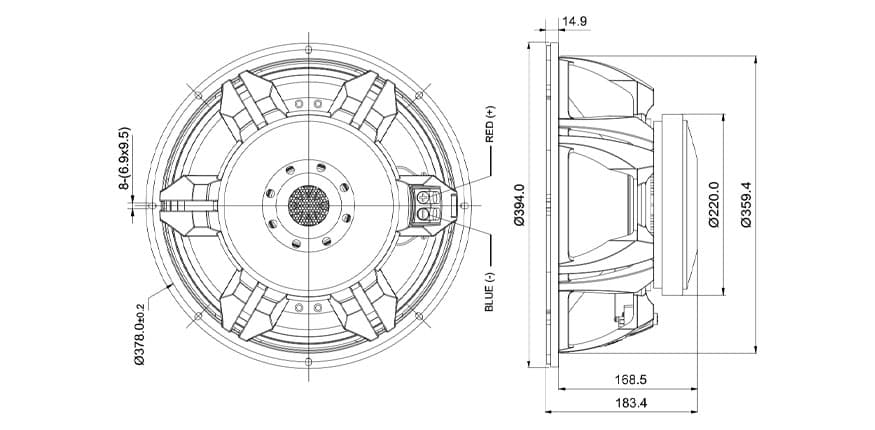

Dimensions & Physical
Weight11.6kg
Diameter394.0mm
Cutout Diameter361.4mm
Bolt Circle Diameter378.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
SB Audience
ROSSO-15SW800
15"
Best current price
£176.66
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
47%
Similarity
47% cheaper£93.10
SB Audience
BIANCO-15W200
15"
Lower price
Xmax8.5mm-24%
Qts0.54+17%
BL17Tm-19%
Vas123.5L+41%
Qes0.57+19%
76%
Similarity
28% cheaper£126.45
SB Audience
BIANCO-15SW400
15"
Lower price
Xmax9.2mm-18%
Qts0.48+4%
BL19.8Tm-6%
Vas111.5L+27%
Qes0.49+2%
57%
Similarity
15% cheaper£149.39
Beyma
15MCS500
15"
Lower price
Xmax8mm-29%
Qts0.48+4%
BL17.6Tm-17%
Vas134L+53%
Qes0.5+4%
62%
Similarity
8% cheaper£161.93
FaitalPRO
15HP1010
15"
Lower price
Xmax9.8mm-14%
Qts0.37-20%
BL22Tm+4%
Vas107.5L+23%
Qes0.38-21%
60%
Similarity
2% cheaper£173.88
Beyma
15MC500
15"
Lower price
Xmax8mm-29%
Qts0.45-2%
BL18.3Tm-13%
Vas134L+53%
Qes0.47-2%
80%
Similarity
2% cheaper£173.94
BishopSound
BDP15
15"
Lower price
Xmax12.2mm+8%
Qts0.42-9%
BL21.3Tm+1%
Vas103.4L+18%
Qes0.44-8%
61%
Similarity
2% more£179.68
PRV Audio
15SW2000
15"
Higher price
Xmax12.5mm+11%
Qts0.55+20%
BL23.2Tm+10%
Vas61.5L-30%
Qes0.57+19%
67%
Similarity
3% more£181.46
B&C
15FW88
15"
Higher price
Xmax8mm-29%
Qts0.43-7%
BL19.3Tm-9%
Vas103.7L+18%
Qes0.45-6%
73%
Similarity
7% more£189.00
B&C
15PS100
15"
Higher price
Xmax8mm-29%
Qts0.43-7%
BL21.2Tm0%
Vas103L+18%
Qes0.47-2%
80%
Similarity
15% more£203.94
BishopSound
BWP15/4/V2
15"
Higher price
Xmax10.3mm-9%
Qts0.42-9%
BL21.3Tm+1%
Vas102.3L+17%
Qes0.44-8%
80%
Similarity
15% more£203.94
BishopSound
BWP15/8/V2
15"
Higher price
Xmax10.3mm-9%
Qts0.42-9%
BL21.3Tm+1%
Vas102.3L+17%
Qes0.44-8%
64%
Similarity
28% more£226.15
CIARE
15.00SW
15"
Higher price
Xmax13.5mm+20%
Qts0.41-11%
BL18.4Tm-13%
Vas113L+29%
Qes0.44-8%
