15-inch LF driver · HP series · 700 W
FaitalPRO 15HP1010 8Ω
8 Ω · 40–2500 Hz
£161.93
SteadyBlue Aran · 1 in stock · All 8 offers
- Fs
- 40Hz
- Xmax
- 9.8mm
- SPL
- 95dB
- Pe
- 700W
- BL
- 22T·m
- Vd
- 801cm³
- Qts
- 0.37
- Vas
- 108L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
151 plotted pointsMedium confidence491 selected pixels of 1,222 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,194 selected pixels of 1,194 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,473 selected pixels of 1,473

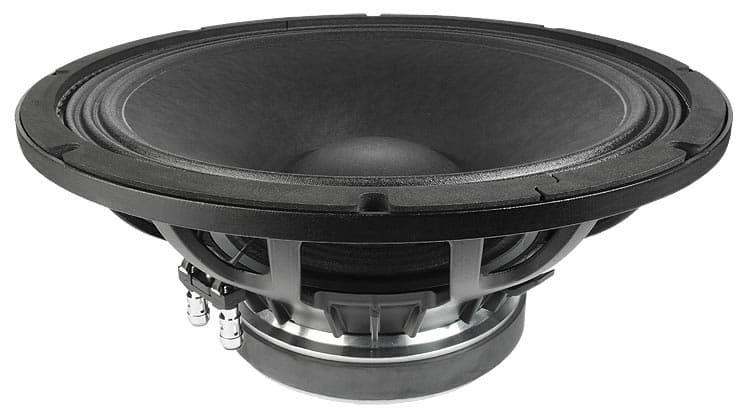

FaitalPRO 15HP1010 is a 15-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.37, Vas 107.5 L, Xmax 9.8 mm, sensitivity 94.6 dB, plus 801 cm³ Vd and 105 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £161.93.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.37
- Qes
- 0.38
- Qms
- 10
- Vas
- 107.5L
- Re
- 5.3Ω
- Le
- 1.80mH
Motor and cone
- BL
- 22T·m
- Sd
- 822cm²
- Mms
- 139g
- Xmax
- 9.8mm
- Vd †
- 801cm³
Power and response
- Sensitivity †
- 94.6dB
- Manufacturer sensitivity
- 96dB
- Power
- 700W
- Impedance
- 8Ω
- Range
- 40–2500Hz
- EBP †
- 105 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 183mm
- Weight
- 9.8kg
Other published values
- Cms
- 0.11mm/N
- Rms
- 3.50kg/s
- Power Program
- 1400
Sensitivity shows 94.6 dB, calculated from the T/S values. FaitalPRO publishes 96.0 dB, 1.4 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 15″
- BL
- 22T·m
- Fs
- 40Hz
- Le
- 1.80mH
- Re
- 5.3Ω
- Sd
- 822cm²
- Cms
- 0.11mm/N
- Mms
- 139g
- Qes
- 0.38
- Qms
- 10
- Qts
- 0.37
- Rms
- 3.50kg/s
- SPL
- 94.6dB
- Vas
- 107.5L
- Xmax
- 9.8mm
- Power
- 700W
- Impedance
- 8Ω
- Sensitivity
- 96dB
- Low limit
- 40Hz
- Power Program
- 1400
- Calculated sensitivity †
- 94.6dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 96dB
- Weight
- 9.8kg
- Diameter
- 393mm
- Depth
- 183mm
- Cutout
- 354mm
- Bolt circle
- 374mm
02
