Overview
LF DriverFTR15 series
Celestion

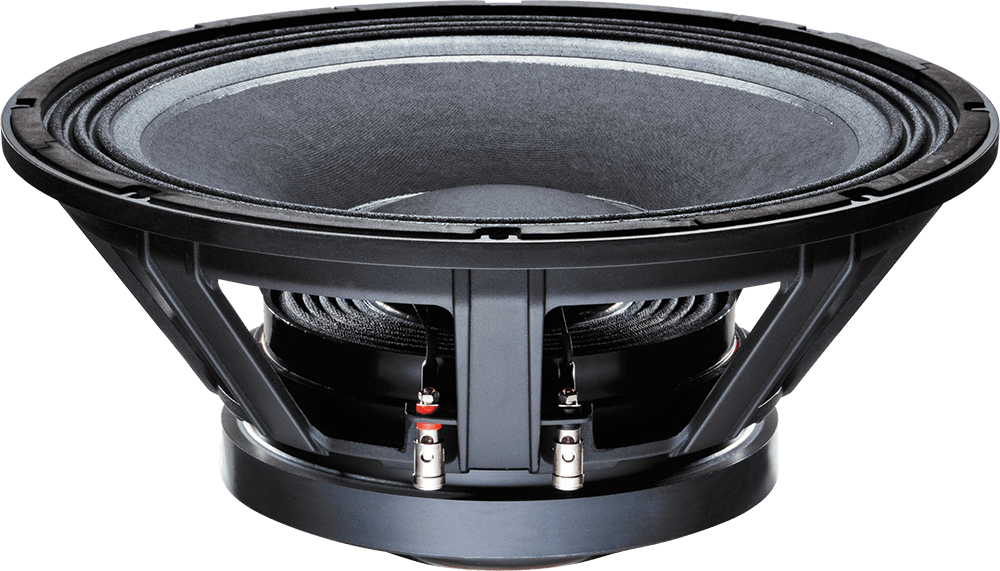

Celestion FTR15-4080HDX
Celestion FTR15-4080HDX is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 40Hz, Qts 0.32, Vas 111.2L, Xmax 10.1mm, sensitivity 95dB, plus 864cm³ Vd and 112 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £229.00.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.0dB
96.0dBmanufacturer; using T/S-derived value (1.0dB delta).
EBP
112
Vented alignment
Vd
864cm³

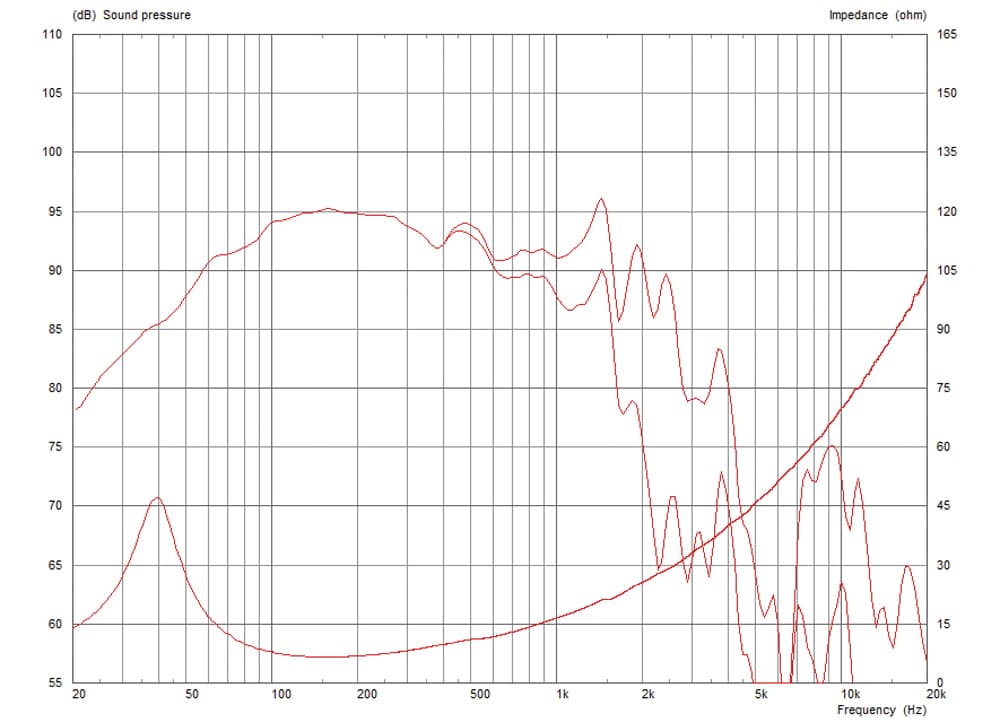

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence229 selected pixels of 405
T/S Parameters
Valid
Fs40Hz
Qts0.32
Qes0.36
Qms3.1
Vas111.2L
Re5.1Ω
Le1.73mH
BL23.1Tm
Sd855cm²
Mms147g
Xmax10.1mm
SPL95dB
Power1000W
Impedance8Ω
Voice Coil100mm
Pricing & availability
Price definitionsPrice movement
Other offers
2 vendorsleanaudio
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£175.00
inc VAT
Out of stock
leanbusiness
Updated 17 May 2026
Source: inc VAT · 20%
£245.00
inc VAT
Best current price
Updated 11 Sept 2026
leanaudio
£229.00
Avg £237.00£8.00 below avg (-3.4%)
inc VAT·1 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.7kg
Diameter385.0mm
Overall Depth180.0mm
Cutout Diameter351.0mm
Bolt Circle Diameter375.0mm
