BMS 15S330 8Ω
8 Ω · 35–2500 Hz
£194.97
SteadyLean Audio · 2 in stock · All 1 offer
- Fs
- 39Hz
- Xmax
- 8mm
- SPL
- 96dB
- Pe
- 600W
- BL
- 23T·m
- Vd
- 704cm³
- Qts
- 0.32
- Vas
- 152L
BMS 15S330 is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.32, Vas 152 L, Xmax 8 mm, sensitivity 96.3 dB, plus 704 cm³ Vd and 115 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £194.97.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.32
- Qes
- 0.34
- Qms
- 6.6
- Vas
- 152L
- Re
- 6Ω
- Le
- 0.72mH
Motor and cone
- BL
- 23T·m
- Sd
- 880cm²
- Mms
- 121g
- Xmax
- 8mm
- Vd †
- 704cm³
- Voice coil
- 77mm
Power and response
- Sensitivity †
- 96.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 600W
- Impedance
- 8Ω
- Range
- 35–2500Hz
- EBP †
- 115 · Leans vented

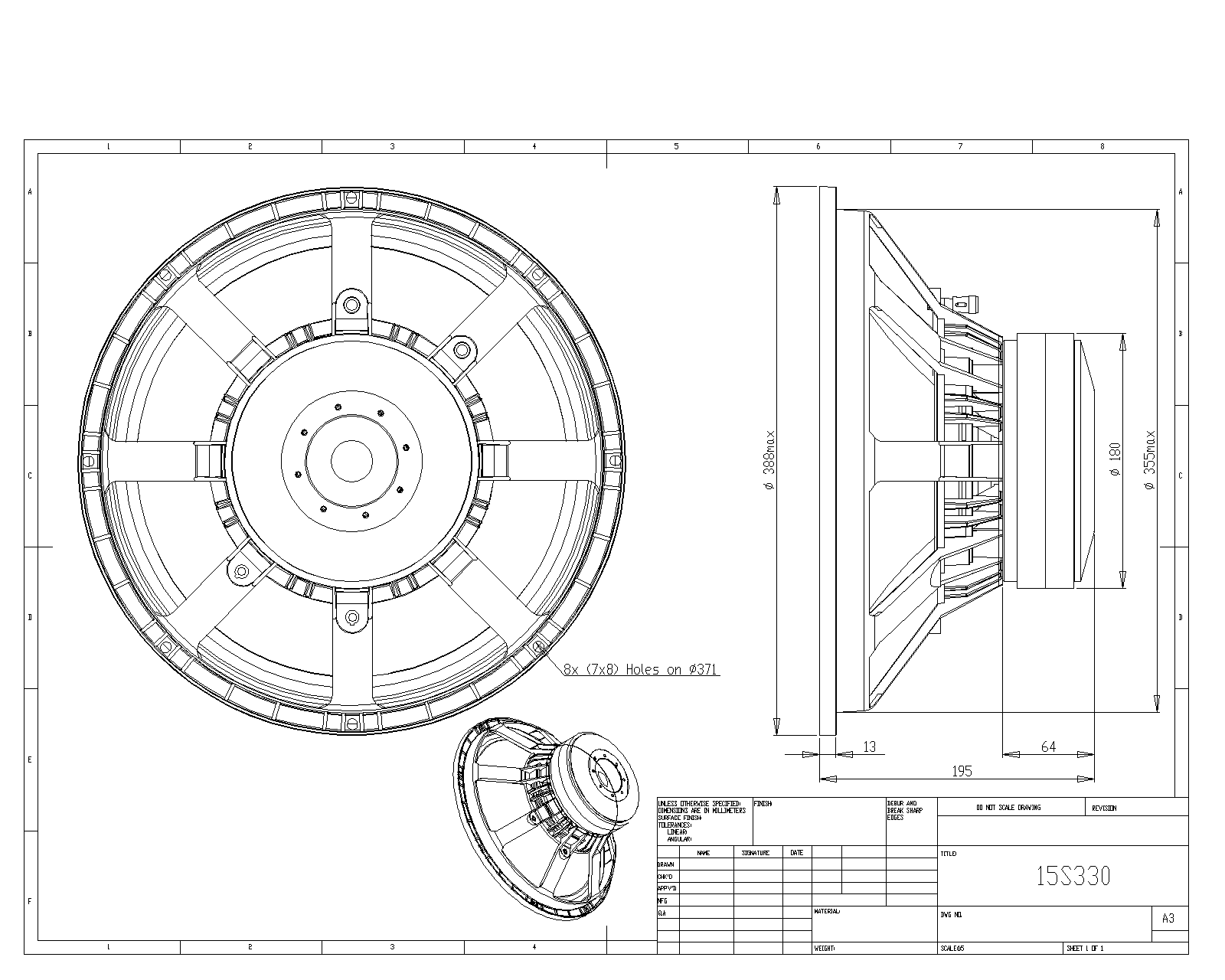

Size and mounting
- Diameter
- 388mm
- Cutout
- 358mm
- Bolt circle
- 371mm
- Depth
- 195mm
- Weight
- 9.6kg
Other published values
- Cms
- 0.14mm/N
Sensitivity shows 96.3 dB, calculated from the T/S values. BMS publishes 98.0 dB, 1.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 23T·m
- Fs
- 39Hz
- Le
- 0.72mH
- Re
- 6Ω
- Sd
- 880cm²
- Cms
- 0.14mm/N
- Mms
- 121g
- Qes
- 0.34
- Qms
- 6.6
- Qts
- 0.32
- SPL
- 96.3dB
- Vas
- 152L
- Xmax
- 8mm
- Power
- 600W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 35Hz
- Calculated sensitivity †
- 96.3dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 77mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 23 Tesla m
- 1. application
- Subwoofer
- 18. moving mass
- Mms 0.121 kg
- 13. dc resistance
- Re 6 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 152 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 35 – 2500 Hz
- 6. voice coil diameter
- 77 (3″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 39 Hz
- 14. mechanical q factor
- Qms 6.6
- 15. electrical q factor
- Qes 0.34
- 16. total quality factor
- Qts 0.32
- 19. mechanical complience
- Cms 0.14 mm / N
- 21. effective piston area
- Sd 0.088 m²
- 22. max. linear excursion
- Xmax +/- 8 mm
- 23. voice coil inductance
- Le1k 0.72 mH
- 4. sensitivity (1 w / 1 m)
- 98 dB
- 3. power handling aes noise
- 600 W
- 8. voice coil winding depth
- 26 mm
- 11. effect. diaphragm diameter d
- 335 mm
02
