LF Driver
Eighteen Sound
Eighteen Sound 15NCX910
Eighteen Sound 15NCX910 is a 15" 8 ohm LF driver. The validated T/S data includes Fs 55Hz, Qts 0.33, Vas 107L, Xmax 7mm, sensitivity 99.2dB, plus 617cm³ Vd and 162 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £497.18.
Size
15"
Impedance
8Ω
Sensitivity
99.2dB
EBP
162
Vented alignment
Vd
617cm³

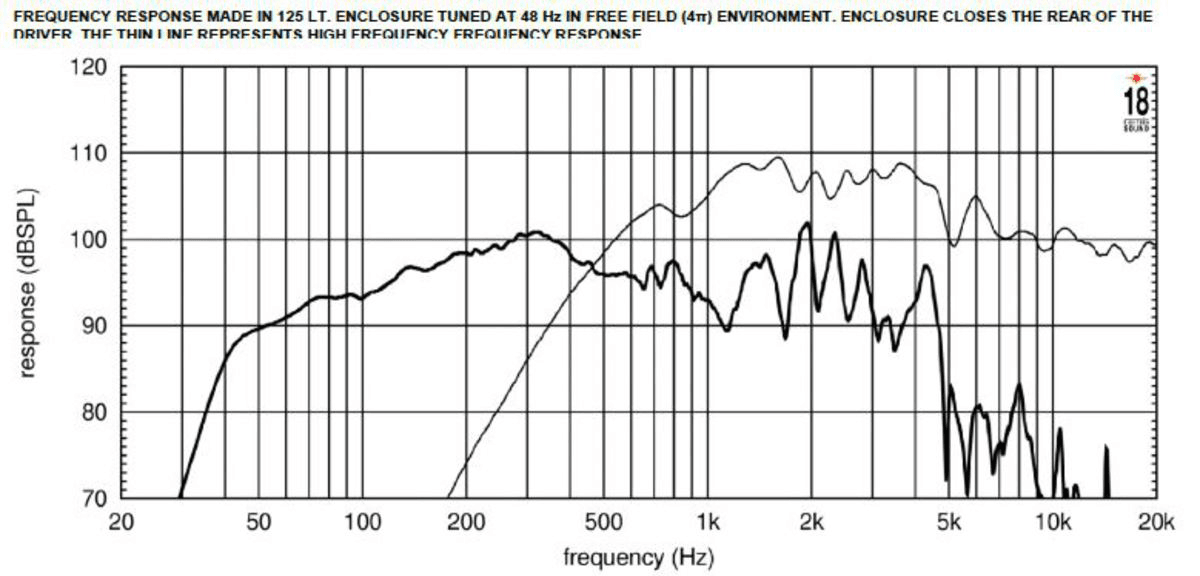

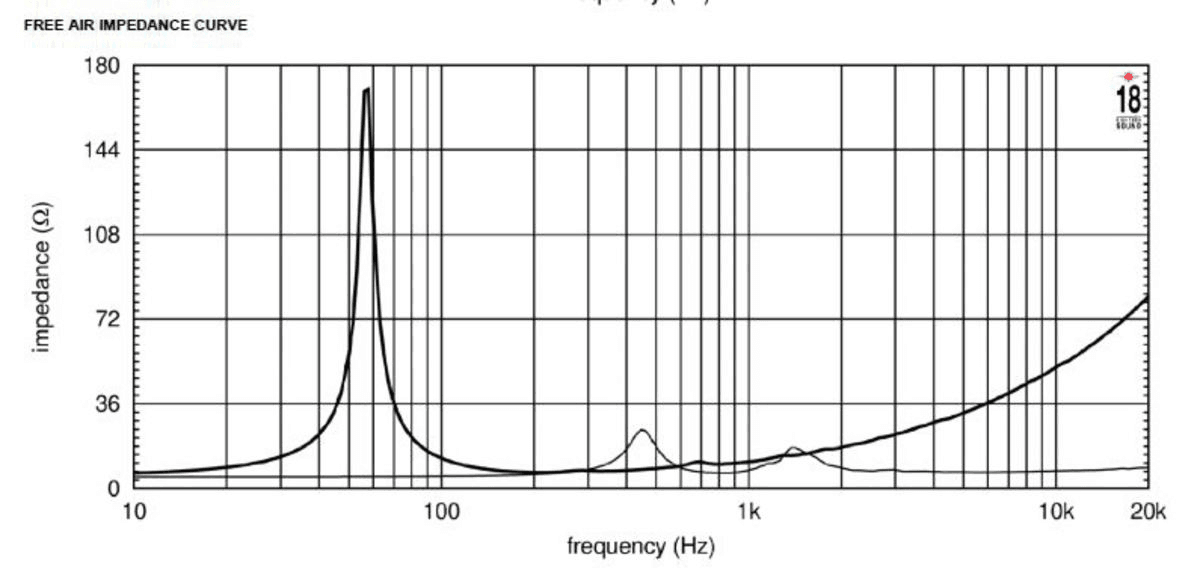

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,373 selected pixels of 2,381
T/S Parameters
Valid
Fs55Hz
Qts0.33
Qes0.34
Qms8.2
Vas107.0L
Re5.0Ω
Le1.10mH
BL21.0Tm
Sd881cm²
Mms86g
Xmax7.0mm
SPL99dB
Impedance8Ω
F Low50Hz
F High4000Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£497.18
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight6.5kg
Diameter393.0mm
Overall Depth205.0mm
Cutout Diameter360.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15NCX910
15"
Best current price
£497.18
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
93%
Similarity
72% cheaper£138.54
B&C
15CL76
15"
Lower price
Xmax7mm0%
Qts0.330%
BL21Tm0%
Vas135L+26%
Qes0.340%
62%
Similarity
69% cheaper£152.00
B&C
15CL76
15"
Lower price
Xmax7mm0%
Qts0.25-24%
BL19.1Tm-9%
Vas140L+31%
Qes0.27-21%
76%
Similarity
69% cheaper£152.08
RCF
L15P540
15"
Lower price
Xmax7mm0%
Qts0.39+18%
BL21.4Tm+2%
Vas100L-7%
Qes0.41+21%
56%
Similarity
69% cheaper£155.00
Celestion
FTR15-3070E
15"
Lower price
Xmax7.8mm+11%
Qts0.38+15%
BL17.9Tm-15%
Vas145.8L+36%
Qes0.43+25%
50%
Similarity
67% cheaper£162.00
Eminence
KAPPA-15LFA
15"
Lower price
Xmax5.5mm-21%
Qts0.38+15%
BL18.6Tm-11%
Vas159L+49%
Qes0.41+21%
79%
Similarity
65% cheaper£173.91
SB Audience
ROSSO-15MW500
15"
Lower price
Xmax8.4mm+20%
Qts0.330%
BL23.2Tm+10%
Vas121.3L+13%
Qes0.35+3%
69%
Similarity
65% cheaper£175.00
Eminence
KAPPALITE 3015
15"
Lower price
Xmax5.9mm-16%
Qts0.34+3%
BL18.6Tm-11%
Vas153L+43%
Qes0.36+6%
42%
Similarity
63% cheaper£182.15
RCF
LF15G401
15"
Lower price
Xmax9mm+29%
Qts0.26-21%
BL24.6Tm+17%
Vas150L+40%
Qes0.27-21%
41%
Similarity
61% cheaper£191.58
B&C
15PLB76
15"
Lower price
Xmax5mm-29%
Qts0.25-24%
BL22.1Tm+5%
Vas164L+53%
Qes0.26-24%
74%
Similarity
61% cheaper£194.97
BMS
15S330
15"
Lower price
Xmax8mm+14%
Qts0.32-3%
BL23Tm+10%
Vas152L+42%
Qes0.340%
67%
Similarity
60% cheaper£197.38
RCF
MB15N301
15"
Lower price
Xmax6mm-14%
Qts0.37+12%
BL19.2Tm-9%
Vas134L+25%
Qes0.39+15%
67%
Similarity
60% cheaper£199.99
B&C
15PZB100
15"
Lower price
Xmax8mm+14%
Qts0.29-12%
BL25.8Tm+23%
Vas110L+3%
Qes0.3-12%
