Overview
LF Driver
Eighteen Sound
Eighteen Sound 15MB1000
Eighteen Sound 15MB1000 is a 15" 8 ohm LF driver rated at 850W RMS. The validated T/S data includes Fs 48Hz, Qts 0.31, Vas 132.5L, Xmax 6mm, sensitivity 98.6dB, plus 510cm³ Vd and 150 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £259.50.
Size
15"
Impedance
8Ω
RMS Power
850W
Sensitivity
98.6dB
EBP
150
Vented alignment
Vd
510cm³

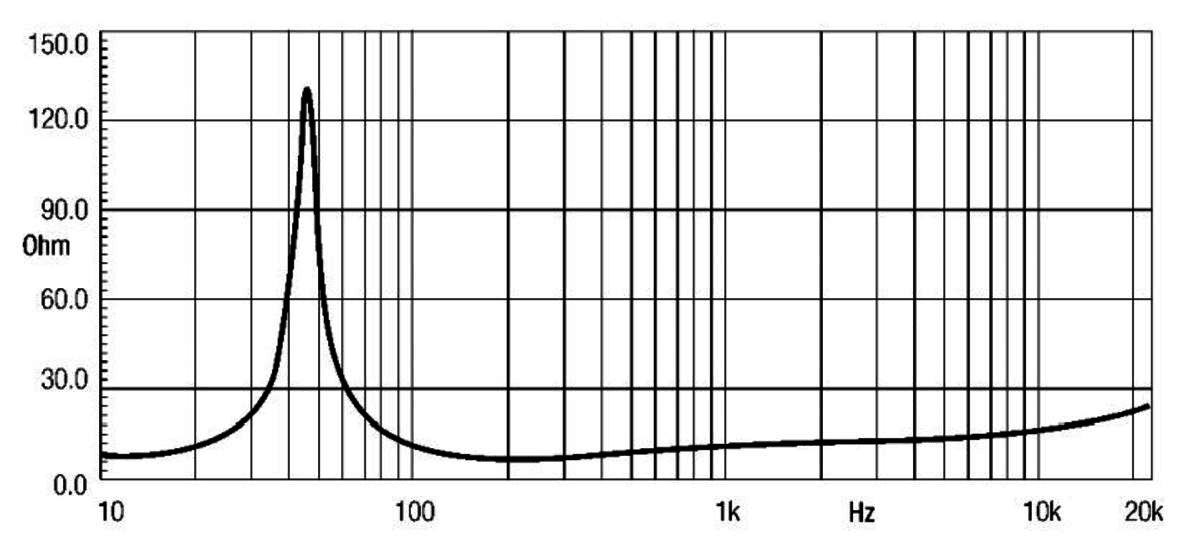

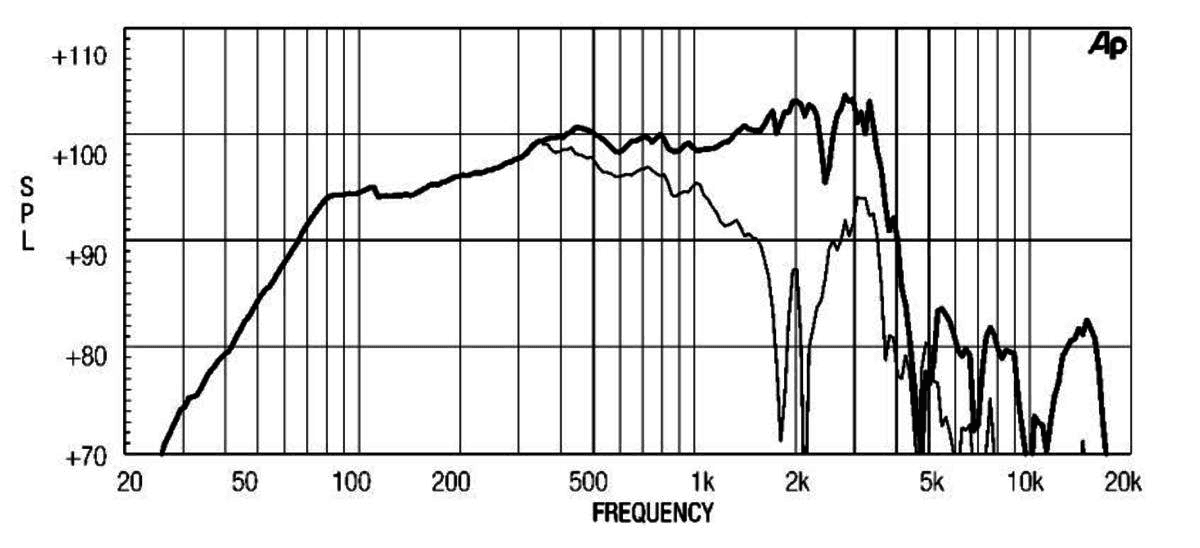

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence2,189 selected pixels of 2,361
T/S Parameters
Valid
Fs48Hz
Qts0.31
Qes0.32
Qms6.0
Vas132.5L
Re5.5Ω
Le1.50mH
BL21.0Tm
Sd850cm²
Mms85g
Xmax6.0mm
SPL99dB
Power850W
Power Nominal850W
Impedance8Ω
F Low45Hz
F High5100Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£259.50
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.4kg
Diameter387.0mm
Overall Depth156.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15MB1000
15"
Best current price
£259.50
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
63%
Similarity
52% cheaper£125.00
Celestion
TF1530E
15"
Lower price
Xmax6.5mm+8%
Qts0.33+6%
BL17Tm-19%
Vas191.6L+45%
Qes0.37+17%
83%
Similarity
47% cheaper£138.54
B&C
15CL76
15"
Lower price
Xmax7mm+17%
Qts0.33+6%
BL21Tm0%
Vas135L+2%
Qes0.34+6%
66%
Similarity
41% cheaper£152.00
B&C
15CL76
15"
Lower price
Xmax7mm+17%
Qts0.25-19%
BL19.1Tm-9%
Vas140L+6%
Qes0.27-16%
76%
Similarity
41% cheaper£153.86
Eminence
KAPPA PRO-15LF
15"
Lower price
Xmax6.7mm+12%
Qts0.3-3%
BL21.6Tm+3%
Vas198.8L+50%
Qes0.320%
46%
Similarity
40% cheaper£155.00
Celestion
FTR15-3070E
15"
Lower price
Xmax7.8mm+29%
Qts0.38+22%
BL17.9Tm-15%
Vas145.8L+10%
Qes0.43+33%
58%
Similarity
38% cheaper£162.00
Eminence
KAPPA-15LFA
15"
Lower price
Xmax5.5mm-8%
Qts0.38+23%
BL18.6Tm-11%
Vas159L+20%
Qes0.41+28%
46%
Similarity
35% cheaper£169.00
Celestion
FTR15-3070C
15"
Lower price
Xmax5.5mm-8%
Qts0.38+23%
BL17.3Tm-17%
Vas187.6L+42%
Qes0.43+34%
80%
Similarity
34% cheaper£170.21
B&C
15CLA76
15"
Lower price
Xmax5.5mm-8%
Qts0.3-3%
BL19.8Tm-6%
Vas176L+33%
Qes0.31-3%
68%
Similarity
33% cheaper£173.41
Eighteen Sound
15MB700
15"
Lower price
Xmax5.5mm-8%
Qts0.29-6%
BL17.6Tm-16%
Vas202L+52%
Qes0.31-3%
78%
Similarity
33% cheaper£175.00
Eminence
KAPPALITE 3015
15"
Lower price
Xmax5.9mm-2%
Qts0.34+10%
BL18.6Tm-11%
Vas153L+15%
Qes0.36+12%
61%
Similarity
26% cheaper£191.58
B&C
15PLB76
15"
Lower price
Xmax5mm-17%
Qts0.25-19%
BL22.1Tm+5%
Vas164L+24%
Qes0.26-19%
74%
Similarity
24% cheaper£197.38
RCF
MB15N301
15"
Lower price
Xmax6mm0%
Qts0.37+19%
BL19.2Tm-9%
Vas134L+1%
Qes0.39+22%
