B&C15CLA76
£165.40Fs40 Hz –
Qts0.30 +3%
Vas176 L +17%, worse
BL19.8 T·m −12%, worse
Xmax5.5 mm −15%, worse
Sensitivity97.6 dB –
15-inch LF driver · 800 W
Fane COLOSSUS 15SB 8Ω
8 Ω · 40–3000 Hz
No current price
- Fs
- 41Hz
- Xmax
- 6.5mm
- SPL
- 97dB
- Pe
- 800W
- BL
- 22.5T·m
- Vd
- 563cm³
- Qts
- 0.29
- Vas
- 151L

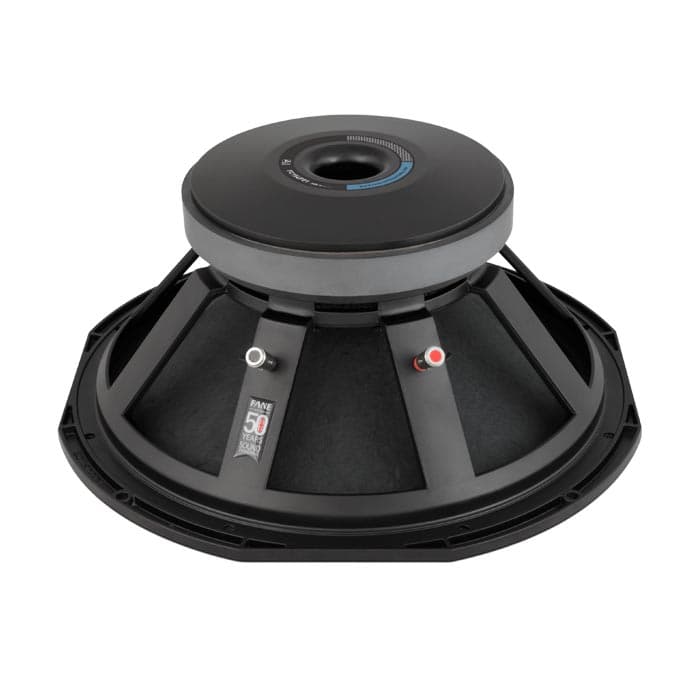

Fane COLOSSUS 15SB is a 15-inch 8 ohm LF driver rated at 800 W RMS. The validated T/S data includes Fs 41 Hz, Qts 0.29, Vas 151 L, Xmax 6.5 mm, sensitivity 97.4 dB, plus 563 cm³ Vd and 137 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 41Hz
- Qts
- 0.29
- Qes
- 0.30
- Qms
- 6.8
- Vas
- 151L
- Re
- 5.4Ω
- Le
- 2.15mH
Motor and cone
- BL
- 22.5T·m
- Sd
- 866cm²
- Mms
- 106g
- Xmax
- 6.5mm
- Vd †
- 563cm³
Power and response
- Sensitivity †
- 97.4dB
- Manufacturer sensitivity
- 99dB
- Power
- 800W
- Impedance
- 8Ω
- Range
- 40–3000Hz
- EBP †
- 137 · Leans vented
Size and mounting
- Diameter
- 406.4mm
- Depth
- 165.1mm
- Weight
- 10.2kg
Other published values
- Cms
- 0.14mm/N
- Power Peak
- 3200
- Power Program
- 1600
Sensitivity shows 97.4 dB, calculated from the T/S values. Fane publishes 99.0 dB, 1.6 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 15″
- BL
- 22.5T·m
- Fs
- 41Hz
- Le
- 2.15mH
- Re
- 5.4Ω
- Sd
- 866cm²
- Cms
- 0.14mm/N
- Mms
- 106g
- Qes
- 0.30
- Qms
- 6.8
- Qts
- 0.29
- SPL
- 97.4dB
- Vas
- 151L
- Xmax
- 6.5mm
- Power
- 800W
- Impedance
- 8Ω
- Power Peak
- 3200
- Sensitivity
- 99dB
- Low limit
- 40Hz
- Power Program
- 1600
- Calculated sensitivity †
- 97.4dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 99dB
- Weight
- 10.2kg
- Diameter
- 406.4mm
- Depth
- 165.1mm
02
Compare
Same-size drivers, compared with the COLOSSUS 15SB. Clear differences are green when better and red when worse.
This driverCOLOSSUS 15SB
Best price
–
Fs
41 Hz
Qts
0.29
Vas
151 L
BL
22.5 T·m
Xmax
6.5 mm
Sensitivity
97.4 dB
Power
800 W
EminenceKAPPA PRO-15LF
£166.34Fs35 Hz −15%, better
Qts0.30 +3%
Vas198.8 L +32%, worse
BL21.6 T·m −4%
Xmax6.7 mm +3%
Sensitivity96.3 dB −1.1
B&C15PS76
£185.00Fs38 Hz −7%
Qts0.26 −10%, better
Vas164 L +9%
BL22.1 T·m –
Xmax7.5 mm +15%, better
Sensitivity97.1 dB –
BMS15S320
£208.72Fs41 Hz –
Qts0.28 −3%
Vas154 L –
BL23.3 T·m +4%
Xmax4.5 mm −31%, worse
Sensitivity97.7 dB –
Beyma15MC700ND
£228.54Fs49 Hz +20%, worse
Qts0.31 +7%
Vas105 L −30%, better
BL22.6 T·m –
Xmax7 mm +8%
Sensitivity97.6 dB –
Beyma14MC700ND
£229.73Fs51 Hz +24%, worse
Qts0.28 −3%
Vas78 L −48%, better
BL22 T·m –
Xmax7 mm +8%
Sensitivity97.4 dB –
RCFMB15X351
£238.26Fs46 Hz +12%, worse
Qts0.31 +7%
Vas114 L −25%, better
BL22.8 T·m –
Xmax7 mm +8%
Sensitivity97.3 dB –
FaitalPRO15FX560
£245.00Fs38 Hz −7%
Qts0.30 +3%
Vas159 L +5%
BL21.5 T·m −4%
Xmax9.4 mm +45%, better
Sensitivity96.5 dB −0.9
Eighteen Sound15MB1000
£259.50Fs48 Hz +17%, worse
Qts0.31 +7%
Vas132.5 L −12%, better
BL21 T·m −7%
Xmax6 mm −8%
Sensitivity98.6 dB +1.2
Sica15 K 3 PL
£274.26Fs40 Hz –
Qts0.27 −7%
Vas166.1 L +10%
BL21.4 T·m −5%
Xmax6.5 mm –
Sensitivity97.8 dB –
Eighteen Sound15ND730
£274.61Fs44 Hz +7%
Qts0.29 –
Vas156 L +3%
BL21 T·m −7%
Xmax6.5 mm –
Sensitivity98.5 dB +1.1
Eighteen Sound15NMB420
£291.65Fs42 Hz –
Qts0.29 –
Vas225 L +49%, worse
BL19 T·m −16%, worse
Xmax6.5 mm –
Sensitivity99.5 dB +2.1, better
BMS15S435
£319.83Fs38 Hz −7%
Qts0.28 −3%
Vas129 L −15%, better
BL24.4 T·m +8%
Xmax8 mm +23%, better
Sensitivity95.9 dB −1.5
MonacorFTX1530/8
£358.63Fs43 Hz +4%
Qts0.28 −5%
Vas172.1 L +14%, worse
BL20.2 T·m −10%, worse
Xmax6 mm −8%
Sensitivity98.5 dB +1.1
FaitalPRO15HX500
£429.54Fs40 Hz –
Qts0.28 −3%
Vas150.1 L –
BL22.2 T·m –
Xmax9.4 mm +45%, better
Sensitivity97.2 dB –
Oberton15B450 / 15B450A / 15B450A2
No current priceFs45 Hz +10%
Qts0.29 –
Vas146.8 L –
BL20.4 T·m −9%
Xmax6.8 mm +4%
Sensitivity98.6 dB +1.2
Eighteen Sound15W600
No current priceFs38 Hz −7%
Qts0.29 –
Vas183 L +21%, worse
BL20.5 T·m −9%
Xmax6.5 mm –
Sensitivity97.3 dB –
No photo
PHL Audio5021M
No current priceFs32 Hz −22%, better
Qts0.30 +3%
Vas169 L +12%, worse
BL24 T·m +7%
Xmax7 mm +8%
Sensitivity94.4 dB −3, worse
CelestionFTX1530
No current priceFs43 Hz +4%
Qts0.28 −5%
Vas172.1 L +14%, worse
BL20.2 T·m −10%, worse
Xmax6 mm −8%
Sensitivity98.5 dB +1.1
Oberton15B500
No current priceFs38 Hz −7%
Qts0.27 −8%
Vas145.8 L −3%
BL22.9 T·m –
Xmax7.3 mm +12%, better
Sensitivity96.8 dB −0.6
Oberton15NMB500
No current priceFs45 Hz +9%
Qts0.29 –
Vas128.0 L −15%, better
BL21.3 T·m −5%
Xmax7.8 mm +19%, better
Sensitivity97.9 dB +0.5
RCFMB15N405
No current priceFs46 Hz +12%, worse
Qts0.27 −7%
Vas124 L −18%, better
BL23.5 T·m +4%
Xmax7 mm +8%
Sensitivity98.4 dB +1
Oberton15NB451
No current priceFs40 Hz −3%
Qts0.26 −11%, better
Vas145.2 L −4%
BL22.9 T·m –
Xmax7 mm +8%
Sensitivity97.4 dB –
Oberton15NSW600
No current priceFs37 Hz −11%, better
Qts0.29 –
Vas148.4 L –
BL23.4 T·m +4%
Xmax14.3 mm +119%, better
Sensitivity95.8 dB −1.6
BMS15N830V2
No current priceFs37 Hz −10%
Qts0.27 −7%
Vas159 L +5%
BL22.4 T·m –
Xmax8 mm +23%, better
Sensitivity96.5 dB −0.9
Eighteen Sound15NTLW2500
No current priceFs45 Hz +10%
Qts0.30 +3%
Vas143 L −5%
BL21.2 T·m −6%
Xmax8 mm +23%, better
Sensitivity98.3 dB +0.9
No current price
Fs45 Hz +10%
Qts0.27 −7%
Vas127 L −16%, better
BL24.5 T·m +9%
Xmax7.5 mm +15%, better
Sensitivity98 dB +0.6
CelestionFTR15-4080FD
No current priceFs35 Hz −14%, better
Qts0.28 −4%
Vas164.3 L +9%
BL23.1 T·m –
Xmax8.5 mm +31%, better
Sensitivity95.9 dB −1.5
No photo
PHL Audio5011MNDU
No current priceFs38 Hz −7%
Qts0.26 −10%, better
Vas169 L +12%, worse
BL23.7 T·m +5%
Xmax7.5 mm +15%, better
Sensitivity97.2 dB –

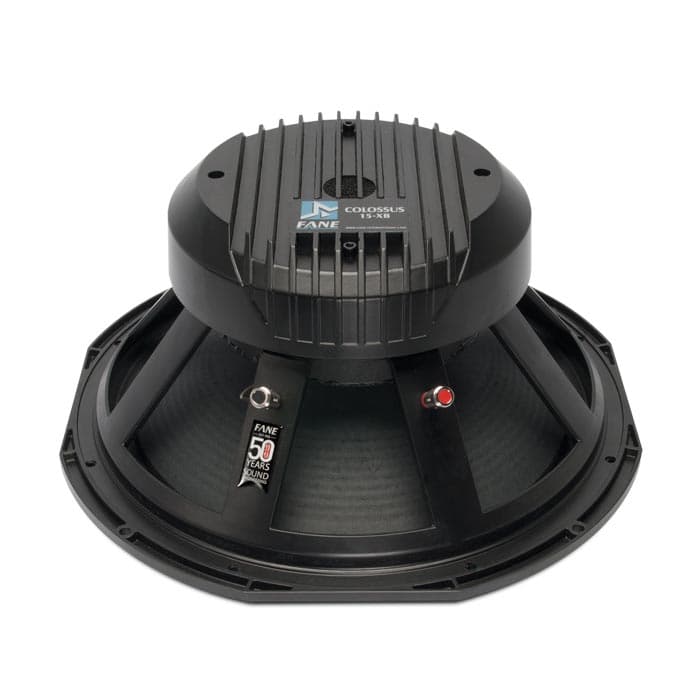

FaneCOLOSSUS 15XB
No current priceFs38 Hz −7%
Qts0.32 +10%, worse
Vas168 L +11%, worse
BL22.1 T·m –
Xmax7.5 mm +15%, better
Sensitivity96.4 dB −1
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
