Oberton 15B500 8Ω
8 Ω · 38–2500 Hz
No current price
- Fs
- 38Hz
- Xmax
- 7.3mm
- SPL
- 97dB
- Pe
- 500W
- BL
- 22.9T·m
- Vd
- 601cm³
- Qts
- 0.27
- Vas
- 146L

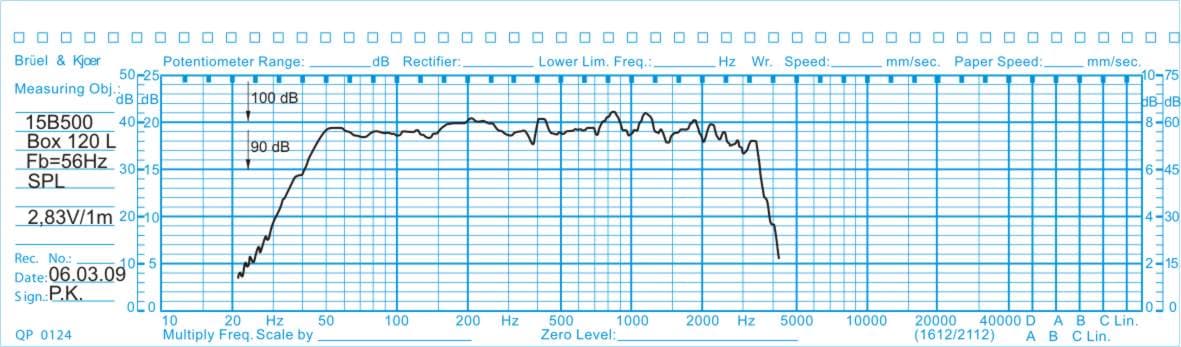

Published graphs
Oberton 15B500 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.27, Vas 145.8 L, Xmax 7.3 mm, sensitivity 96.8 dB, plus 601 cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.27
- Qes
- 0.27
- Qms
- 12.1
- Vas
- 145.8L
- Re
- 5.2Ω
- Le
- 1.25mH
Motor and cone
- BL
- 22.9T·m
- Sd
- 830cm²
- Mms
- 114g
- Xmax
- 7.3mm
- Vd †
- 601cm³
- Voice coil
- 77mm
- Flux density
- 1.20T
Power and response
- Sensitivity †
- 96.8dB
- Manufacturer sensitivity
- 60dB
- Power
- 500W
- Impedance
- 8Ω
- Min. impedance
- 6.4Ω
- Range
- 38–2500Hz
- EBP †
- 139 · Leans vented

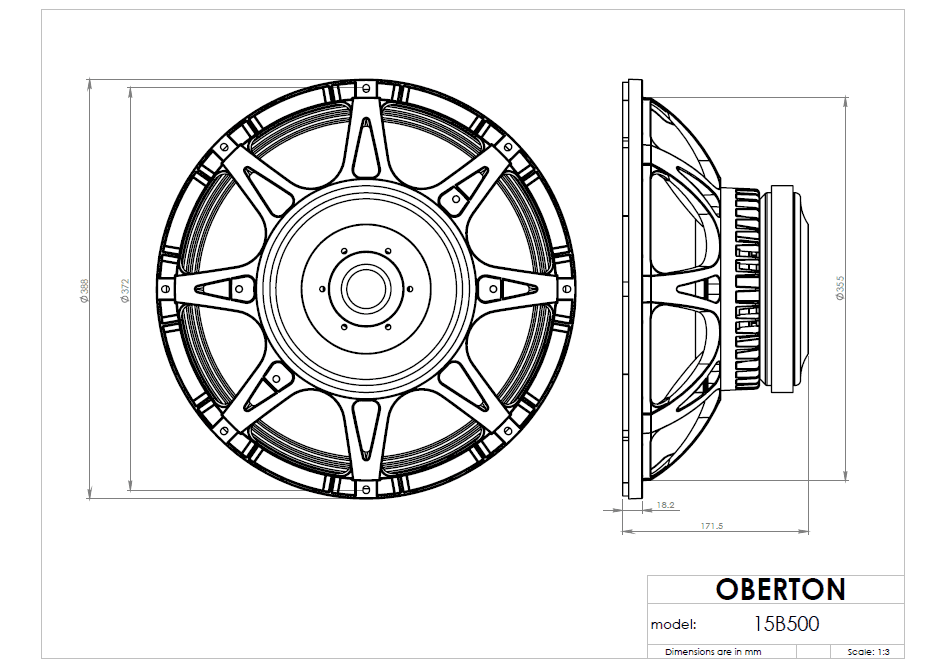

Size and mounting
- Diameter
- 388mm
- Cutout
- 355mm
- Bolt circle
- 372mm
- Depth
- 171.5mm
- Weight
- 7.8kg
Other published values
- Cms
- 0.15mm/N
- Power Program
- 1000
Sensitivity shows 96.8 dB, calculated from the T/S values. Oberton publishes 60.0 dB, 36.8 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 15″
- BL
- 22.9T·m
- Fs
- 38Hz
- Le
- 1.25mH
- Re
- 5.2Ω
- Sd
- 830cm²
- Cms
- 0.15mm/N
- Mms
- 114g
- Qes
- 0.27
- Qms
- 12.1
- Qts
- 0.27
- SPL
- 96.8dB
- Vas
- 145.8L
- Xmax
- 7.3mm
- Power
- 500W
- Impedance
- 8Ω
- Flux density
- 1.20T
- Sensitivity
- 60dB
- Low limit
- 38Hz
- Power Program
- 1000
- Calculated sensitivity †
- 96.8dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 60dB
- Min. impedance
- 6.4Ω
- Voice coil
- 77mm
- Weight
- 7.8kg
- Diameter
- 388mm
- Depth
- 171.5mm
- Cutout
- 355mm
- Bolt circle
- 372mm
