Overview
LF Driver15NB series
Oberton
Oberton 15NB500
Oberton 15NB500 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 43Hz, Qts 0.26, Vas 121.5L, Xmax 7.3mm, sensitivity 97.7dB, plus 601cm³ Vd and 165 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
97.7dB
60.0dBmanufacturer; using T/S-derived value (37.7dB delta).
EBP
165
Vented alignment
Vd
601cm³
T/S Parameters
Valid
Fs43Hz
Qts0.26
Qes0.26
Qms12.0
Vas121.5L
Re5.2Ω
Le1.14mH
BL24.3Tm
Sd830cm²
Mms110g
Xmax7.3mm
SPL98dB
Power500W
Impedance8Ω
Min Impedance6.7Ω
F Low42Hz
F High2500Hz
Voice Coil77mm
Flux Density1.20T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

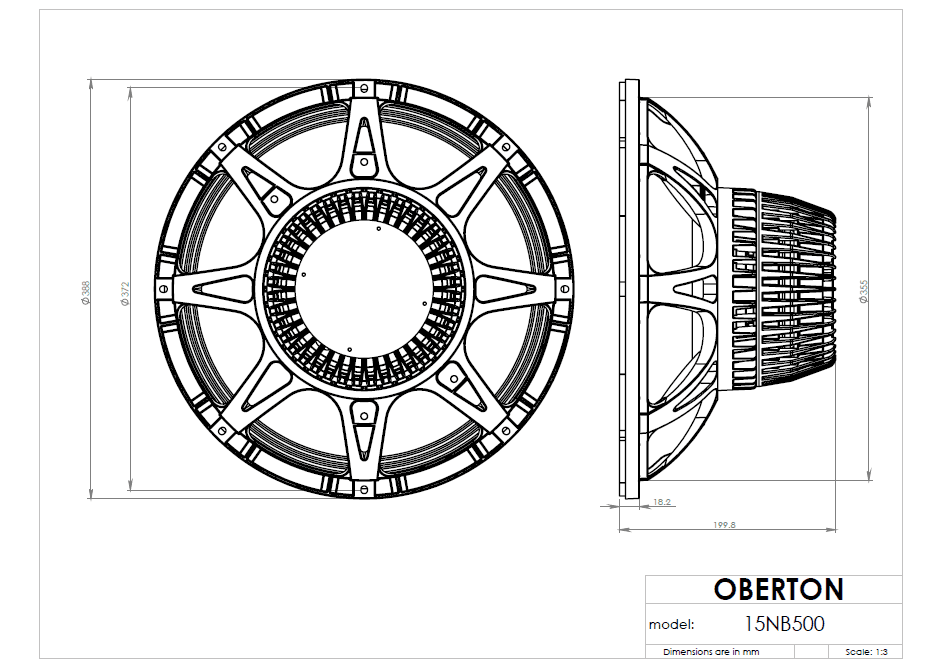

Dimensions & Physical
Weight5.4kg
Diameter388.0mm
Overall Depth200.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
