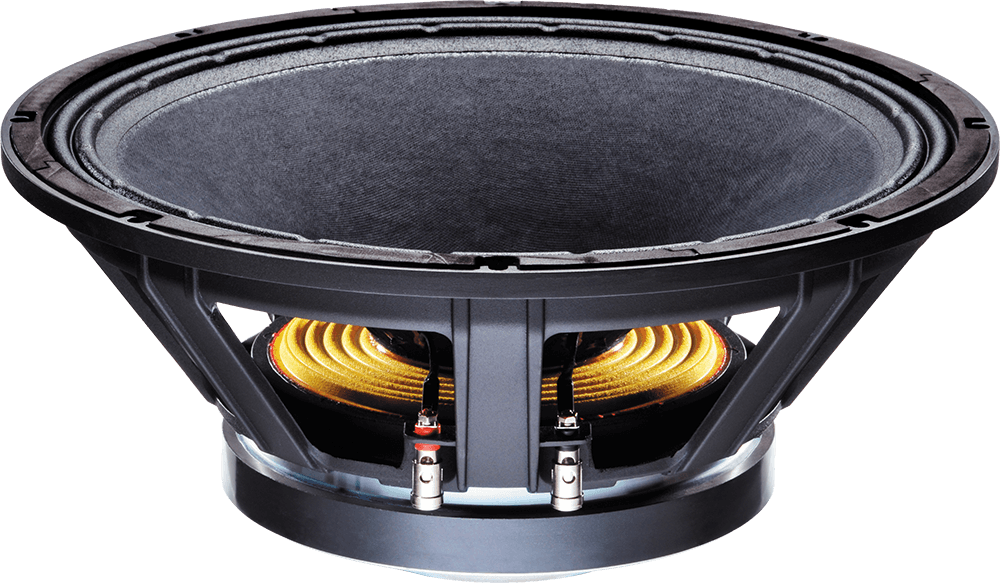

Celestion FTR15-4080F 8Ω
8 Ω · 35–3000 Hz
No price for delivery to the UK
- Fs
- 38Hz
- Xmax
- 8.5mm
- SPL
- 97dB
- Pe
- 600W
- BL
- 23.5T·m
- Vd
- 727cm³
- Qts
- 0.25
- Vas
- 163L

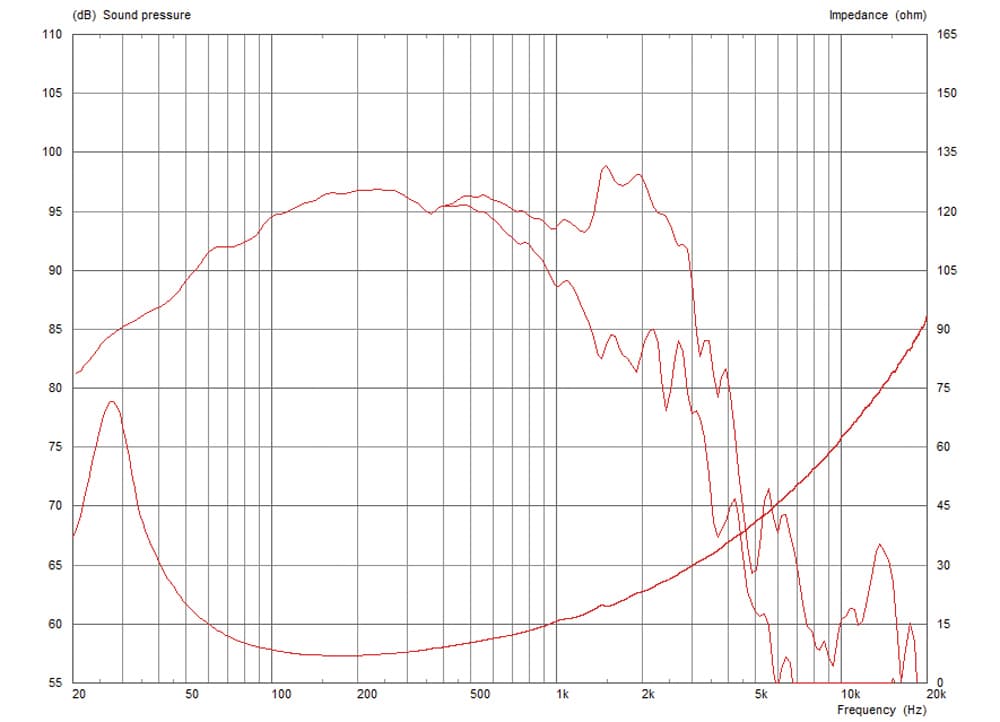

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence203 selected pixels of 368
Published graphs
Celestion FTR15-4080F is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.25, Vas 163.1 L, Xmax 8.5 mm, sensitivity 97.2 dB, plus 727 cm³ Vd and 139 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.25
- Qes
- 0.27
- Qms
- 2.9
- Vas
- 163.1L
- Re
- 5.7Ω
- Le
- 1.48mH
Motor and cone
- BL
- 23.5T·m
- Sd
- 855cm²
- Mms
- 112g
- Xmax
- 8.5mm
- Vd †
- 727cm³
- Voice coil
- 100mm
Power and response
- Sensitivity †
- 97.2dB
- Manufacturer sensitivity
- 97dB
- Power
- 600W
- Impedance
- 8Ω
- Range
- 35–3000Hz
- EBP †
- 139 · Leans vented
Size and mounting
- Diameter
- 385mm
- Cutout
- 351mm
- Bolt circle
- 375mm
- Depth
- 170mm
- Weight
- 9.4kg
Other published values
- Cms
- 0.16mm/N
- Rms
- 9.34kg/s
- Power Program
- 1200
† Calculated by bits from the published values
What this validation status means
Everything else Celestion lists
LF · Primary · 15″
- BL
- 23.5T·m
- Fs
- 38Hz
- Le
- 1.48mH
- Re
- 5.7Ω
- Sd
- 855cm²
- Cms
- 0.16mm/N
- Mms
- 112g
- Qes
- 0.27
- Qms
- 2.9
- Qts
- 0.25
- Rms
- 9.34kg/s
- SPL
- 97.2dB
- Vas
- 163.1L
- Xmax
- 8.5mm
- Power
- 600W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 35Hz
- Power Program
- 1200
- Calculated sensitivity †
- 97.2dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 100mm
- Weight
- 9.4kg
- Diameter
- 385mm
- Depth
- 170mm
- Cutout
- 351mm
- Bolt circle
- 375mm
