BMS 15N820 8Ω
8 Ω · 40–2500 Hz
No price for delivery to the UK
- Fs
- 39Hz
- Xmax
- 4.5mm
- SPL
- 98dB
- Pe
- 900W
- BL
- 24.2T·m
- Vd
- 396cm³
- Qts
- 0.26
- Vas
- 159L
BMS 15N820 is a 15-inch 8 ohm LF driver rated at 900 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.26, Vas 159 L, Xmax 4.5 mm, sensitivity 97.5 dB, plus 396 cm³ Vd and 145 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 4.5
- Vas
- 159L
- Re
- 5.7Ω
- Le
- 0.81mH
Motor and cone
- BL
- 24.2T·m
- Sd
- 880cm²
- Mms
- 114g
- Xmax
- 4.5mm
- Vd †
- 396cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 97.5dB
- Manufacturer sensitivity
- 98dB
- Power
- 900W
- Impedance
- 8Ω
- Range
- 40–2500Hz
- EBP †
- 145 · Leans vented

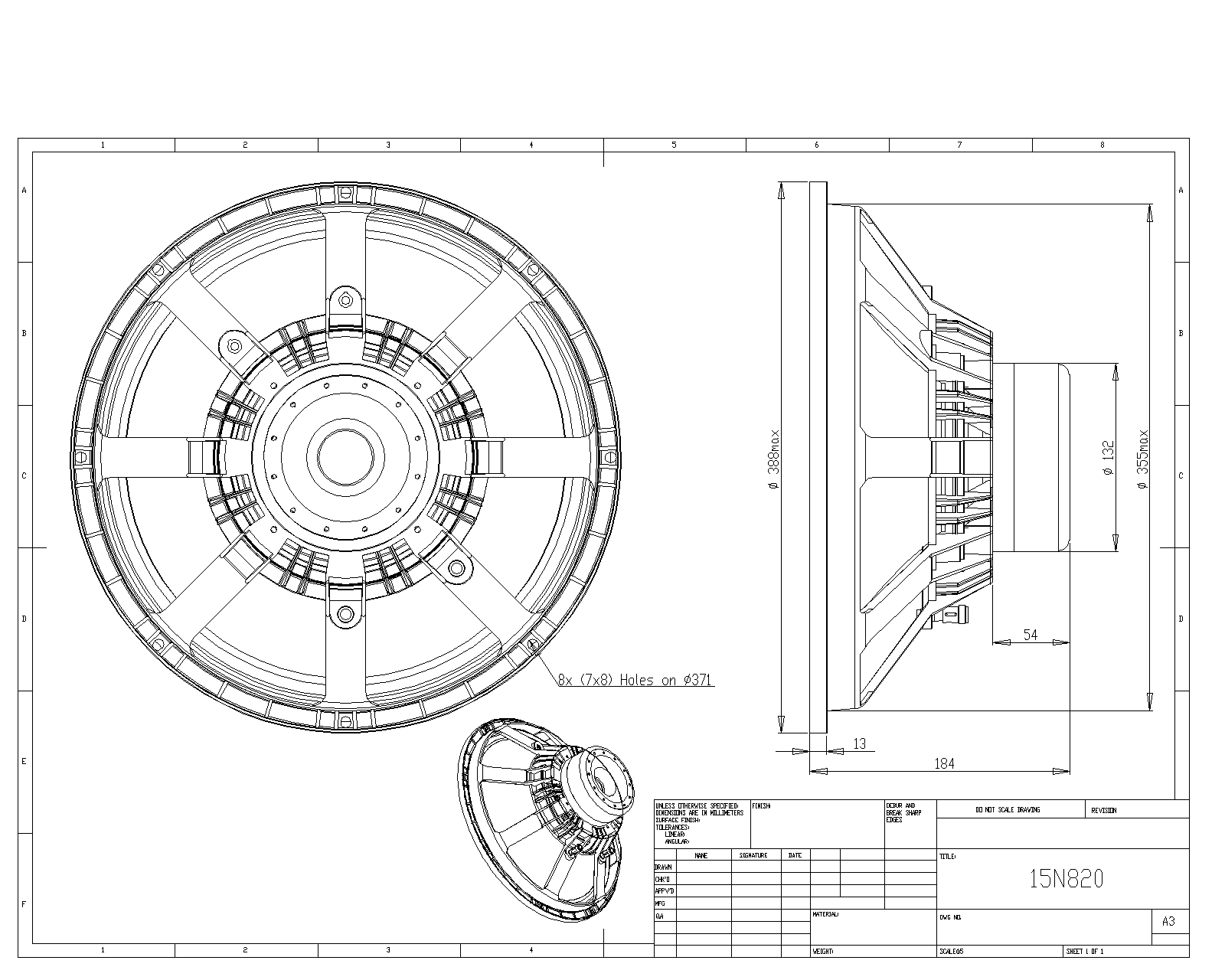

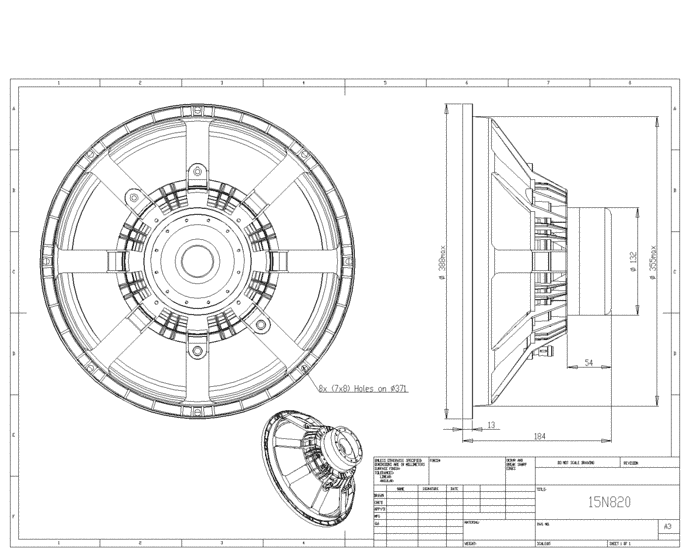

Size and mounting
- Diameter
- 388mm
- Cutout
- 358mm
- Bolt circle
- 371mm
- Depth
- 184mm
- Weight
- 5.7kg
Other published values
- Cms
- 0.14mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 24.2T·m
- Fs
- 39Hz
- Le
- 0.81mH
- Re
- 5.7Ω
- Sd
- 880cm²
- Cms
- 0.14mm/N
- Mms
- 114g
- Qes
- 0.27
- Qms
- 4.5
- Qts
- 0.26
- SPL
- 97.5dB
- Vas
- 159L
- Xmax
- 4.5mm
- Power
- 900W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 40Hz
- Calculated sensitivity †
- 97.5dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 98dB
- Voice coil
- 102mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 24.2 Tesla m
- 1. application
- 2- or 3-way Systems
- 18. moving mass
- Mms 0.114 kg
- 13. dc resistance
- Re 5.7 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 159 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 40 – 2500 Hz
- 6. voice coil diameter
- 101.6 (4″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 39.2 Hz
- 14. mechanical q factor
- Qms 4.5
- 15. electrical q factor
- Qes 0.27
- 16. total quality factor
- Qts 0.26
- 19. mechanical complience
- Cms 0.144 mm / N
- 21. effective piston area
- Sd 0.0880 m²
- 22. max. linear excursion
- Xmax +/- 4.5 mm
- 23. voice coil inductance
- Le1k 0.81 mH
- 4. sensitivity (1 w / 1 m)
- 98 dB
- 3. power handling aes noise
- 900 W
- 8. voice coil winding depth
- 19 mm
- 11. effect. diaphragm diameter d
- 335 mm
