B&C15CL76
£125.02 · 37% less, betterFs42 Hz +20%, worse
Qts0.25 −4%
Vas140 L −27%, better
BL19.1 T·m −9%
Xmax7 mm −24%, worse
Sensitivity97.9 dB +1
15-inch LF driver · FH series · 500 W
FaitalPRO 15FH510 8Ω
8 Ω · 35–3150 Hz
£203.83
16%17% below the average of 3 shops
Audio Video Parts · In stock · Ships from Italy · All 9 offers
- Fs
- 35Hz
- Xmax
- 9.3mm
- SPL
- 97dB
- Pe
- 500W
- BL
- 21T·m
- Vd
- 783cm³
- Qts
- 0.26
- Vas
- 192L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
162 plotted pointsMedium confidence479 selected pixels of 866 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,166 selected pixels of 1,166 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,279 selected pixels of 1,279

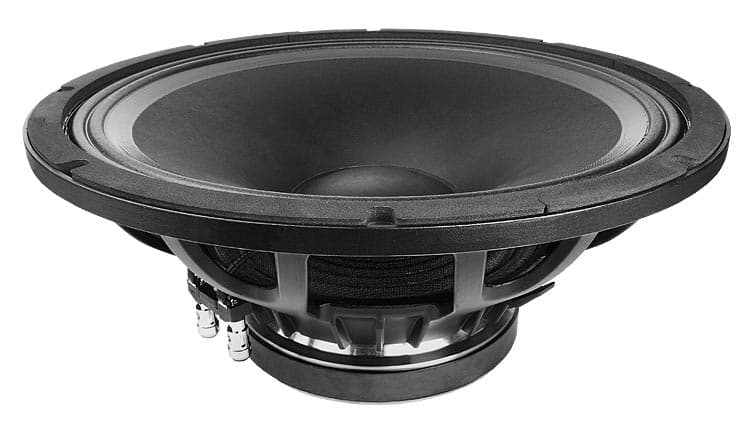

FaitalPRO 15FH510 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 35 Hz, Qts 0.26, Vas 191.8 L, Xmax 9.3 mm, sensitivity 96.9 dB, plus 783 cm³ Vd and 130 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £199.28.
The published T/S values agree with each other
Thiele/Small
- Fs
- 35Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 10.7
- Vas
- 191.8L
- Re
- 5.1Ω
- Le
- 1.40mH
Motor and cone
- BL
- 21T·m
- Sd
- 847cm²
- Mms
- 108g
- Xmax
- 9.3mm
- Vd †
- 783cm³
Power and response
- Sensitivity †
- 96.9dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 35–3150Hz
- EBP †
- 130 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 180mm
- Weight
- 8.4kg
Other published values
- Cms
- 0.19mm/N
- Rms
- 2.20kg/s
- Power Program
- 1000
Sensitivity shows 96.9 dB, calculated from the T/S values. FaitalPRO publishes 98.0 dB, 1.1 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 15″
- BL
- 21T·m
- Fs
- 35Hz
- Le
- 1.40mH
- Re
- 5.1Ω
- Sd
- 847cm²
- Cms
- 0.19mm/N
- Mms
- 108g
- Qes
- 0.27
- Qms
- 10.7
- Qts
- 0.26
- Rms
- 2.20kg/s
- SPL
- 96.9dB
- Vas
- 191.8L
- Xmax
- 9.3mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 35Hz
- Power Program
- 1000
- Calculated sensitivity †
- 96.9dB
- High limit
- 3150Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 8.4kg
- Diameter
- 393mm
- Depth
- 180mm
- Cutout
- 354mm
- Bolt circle
- 374mm
02
Compare
Same-size drivers, compared with the 15FH510. Clear differences are green when better and red when worse.
This driver15FH510
Best price
£199.28
Fs
35 Hz
Qts
0.26
Vas
191.8 L
BL
21 T·m
Xmax
9.3 mm
Sensitivity
96.9 dB
Power
500 W
B&C15PS76
£184.00 · 8% less, betterFs38 Hz +9%
Qts0.26 –
Vas164 L −14%, better
BL22.1 T·m +5%
Xmax7.5 mm −19%, worse
Sensitivity97.1 dB –
B&C15PLB76
£191.58 · 4% lessFs42 Hz +20%, worse
Qts0.25 −4%
Vas164 L −14%, better
BL22.1 T·m +5%
Xmax5 mm −46%, worse
Sensitivity98.7 dB +1.8
FaitalPRO15FH500
£208.49 · 5% moreFs35 Hz –
Qts0.31 +19%, worse
Vas199.2 L +4%
BL19.2 T·m −9%
Xmax9.3 mm –
Sensitivity96.3 dB −0.6
RCFL15P400
£214.72 · 8% more, worseFs36 Hz –
Qts0.25 −4%
Vas160 L −17%, better
BL24.8 T·m +18%, better
Xmax8 mm −14%, worse
Sensitivity96.4 dB −0.5
Dayton Audio15LF500-8
£217.66 · 9% more, worseFs26 Hz −27%, better
Qts0.26 –
Vas331.3 L +73%, worse
BL21.1 T·m –
Xmax9.3 mm –
Sensitivity95.1 dB −1.8
RCFLF15G401
£238.26 · 20% more, worseFs36 Hz –
Qts0.26 –
Vas150 L −22%, better
BL24.6 T·m +17%, better
Xmax9 mm –
Sensitivity96.2 dB −0.7
FaitalPRO15FX560
£245.00 · 23% more, worseFs38 Hz +9%
Qts0.30 +15%, worse
Vas159 L −17%, better
BL21.5 T·m –
Xmax9.4 mm –
Sensitivity96.5 dB –
Eighteen Sound15LW1401
£254.65 · 28% more, worseFs42 Hz +20%, worse
Qts0.27 +4%
Vas131 L −32%, better
BL24.2 T·m +15%, better
Xmax9 mm –
Sensitivity97.4 dB +0.5
FaitalPRO15HP1020
£263.08 · 32% more, worseFs40 Hz +14%, worse
Qts0.27 +4%
Vas126.6 L −34%, better
BL24.2 T·m +15%, better
Xmax9 mm –
Sensitivity96.6 dB –
Sica15 K 3 PL
£272.13 · 37% more, worseFs40 Hz +14%, worse
Qts0.27 +4%
Vas166.1 L −13%, better
BL21.4 T·m –
Xmax6.5 mm −30%, worse
Sensitivity97.8 dB +0.9
Eighteen Sound15NLW9401
£288.50 · 45% more, worseFs39 Hz +11%, worse
Qts0.26 –
Vas134 L −30%, better
BL25.4 T·m +21%, better
Xmax10 mm +8%
Sensitivity96.6 dB –
Eighteen Sound15LW1500
£315.00 · 58% more, worseFs34 Hz –
Qts0.28 +8%
Vas195 L –
BL22.1 T·m +5%
Xmax9 mm –
Sensitivity96.2 dB −0.7
Eighteen Sound15NLW9300
£315.00 · 58% more, worseFs39 Hz +11%, worse
Qts0.26 –
Vas170 L −11%, better
BL24.4 T·m +16%, better
Xmax8 mm −14%, worse
Sensitivity97.8 dB +0.9
FaitalPRO15HX500
£426.19 · 114% more, worseFs40 Hz +14%, worse
Qts0.28 +8%
Vas150.1 L −22%, better
BL22.2 T·m +6%
Xmax9.4 mm –
Sensitivity97.2 dB –
Eighteen Sound15ND940
No current priceFs38 Hz +9%
Qts0.28 +8%
Vas174 L −9%
BL21.9 T·m +4%
Xmax9.5 mm –
Sensitivity97.2 dB –
CelestionFTR15-4080F
No current priceFs38 Hz +9%
Qts0.25 −4%
Vas163.1 L −15%, better
BL23.5 T·m +12%, better
Xmax8.5 mm −8%
Sensitivity97.2 dB –
BMS15N830V2
No current priceFs37 Hz +6%
Qts0.27 +4%
Vas159 L −17%, better
BL22.4 T·m +7%
Xmax8 mm −14%, worse
Sensitivity96.5 dB –
No photo
PHL Audio5011MNDU
No current priceFs38 Hz +9%
Qts0.26 –
Vas169 L −12%, better
BL23.7 T·m +13%, better
Xmax7.5 mm −19%, worse
Sensitivity97.2 dB –
Eighteen Sound15MB650
No current priceFs40 Hz +14%, worse
Qts0.26 –
Vas210 L +9%
BL20 T·m −5%
Xmax4 mm −57%, worse
Sensitivity99 dB +2.1, better
CelestionFTR15-4080FD
No current priceFs35 Hz –
Qts0.28 +7%
Vas164.3 L −14%, better
BL23.1 T·m +10%
Xmax8.5 mm −8%
Sensitivity95.9 dB −1
CelestionCF1540F
No current priceFs29 Hz −17%, better
Qts0.23 −10%
Vas227.9 L +19%, worse
BL23.1 T·m +10%, better
Xmax8.6 mm −7%
Sensitivity95.7 dB −1.2
Oberton15B500
No current priceFs38 Hz +9%
Qts0.27 +3%
Vas145.8 L −24%, better
BL22.9 T·m +9%
Xmax7.3 mm −22%, worse
Sensitivity96.8 dB –
Oberton15NB451
No current priceFs40 Hz +13%, worse
Qts0.26 –
Vas145.2 L −24%, better
BL22.9 T·m +9%
Xmax7 mm −24%, worse
Sensitivity97.4 dB +0.5
Oberton15XL700
No current priceFs45 Hz +29%, worse
Qts0.28 +8%
Vas117.0 L −39%, better
BL23.1 T·m +10%
Xmax8.8 mm −5%
Sensitivity97.8 dB +0.9
Oberton15XL701
No current priceFs45 Hz +29%, worse
Qts0.28 +8%
Vas117.0 L −39%, better
BL23.1 T·m +10%
Xmax8.8 mm −5%
Sensitivity97.8 dB +0.9
No photo
PHL Audio6301MND
No current priceFs36 Hz –
Qts0.26 –
Vas140 L −27%, better
BL25.5 T·m +21%, better
Xmax10.5 mm +14%, better
Sensitivity95.7 dB −1.2
Oberton15MB701
No current priceFs44 Hz +26%, worse
Qts0.27 +3%
Vas100.2 L −48%, better
BL26.1 T·m +24%, better
Xmax9.3 mm –
Sensitivity97 dB –
BMS15S430V2
No current priceFs40 Hz +14%, worse
Qts0.26 –
Vas135 L −30%, better
BL25.0 T·m +19%, better
Xmax7.5 mm −19%, worse
Sensitivity97 dB –
Oberton15NXL701
No current priceFs43 Hz +24%, worse
Qts0.30 +15%, worse
Vas127.1 L −34%, better
BL21.7 T·m +3%
Xmax9.3 mm –
Sensitivity97.3 dB –
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Audio Video Parts Import VAT and duty may apply | £203.83, the lowest price | In stock | Visit shop at Audio Video Parts | |
Blue Aran 9-11 weeks | £198.42 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £198.42 | Back order | Visit shop at Lean Audio | |
Lean Business | £201.48 | Out of stock | Visit shop at Lean Business | |
SoundImports Import VAT and duty may apply | £242.78 | 19% above the lowest price | 2 in stock | Visit shop at SoundImports |
Parts Express Import VAT and duty may apply | £290.99 | 43% above the lowest price | 2 in stock | Visit shop at Parts Express |
Best price over time
Tracked since 1 Apr
