LF Driver15CL series
B&C
B&C 15CL76
B&C 15CL76 is a 15" 4 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 42Hz, Qts 0.25, Vas 140L, Xmax 7mm, sensitivity 97.9dB, plus 599cm³ Vd and 156 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £152.00.
Size
15"
Impedance
4Ω
RMS Power
400W
Sensitivity
97.9dB
EBP
156
Vented alignment
Vd
599cm³

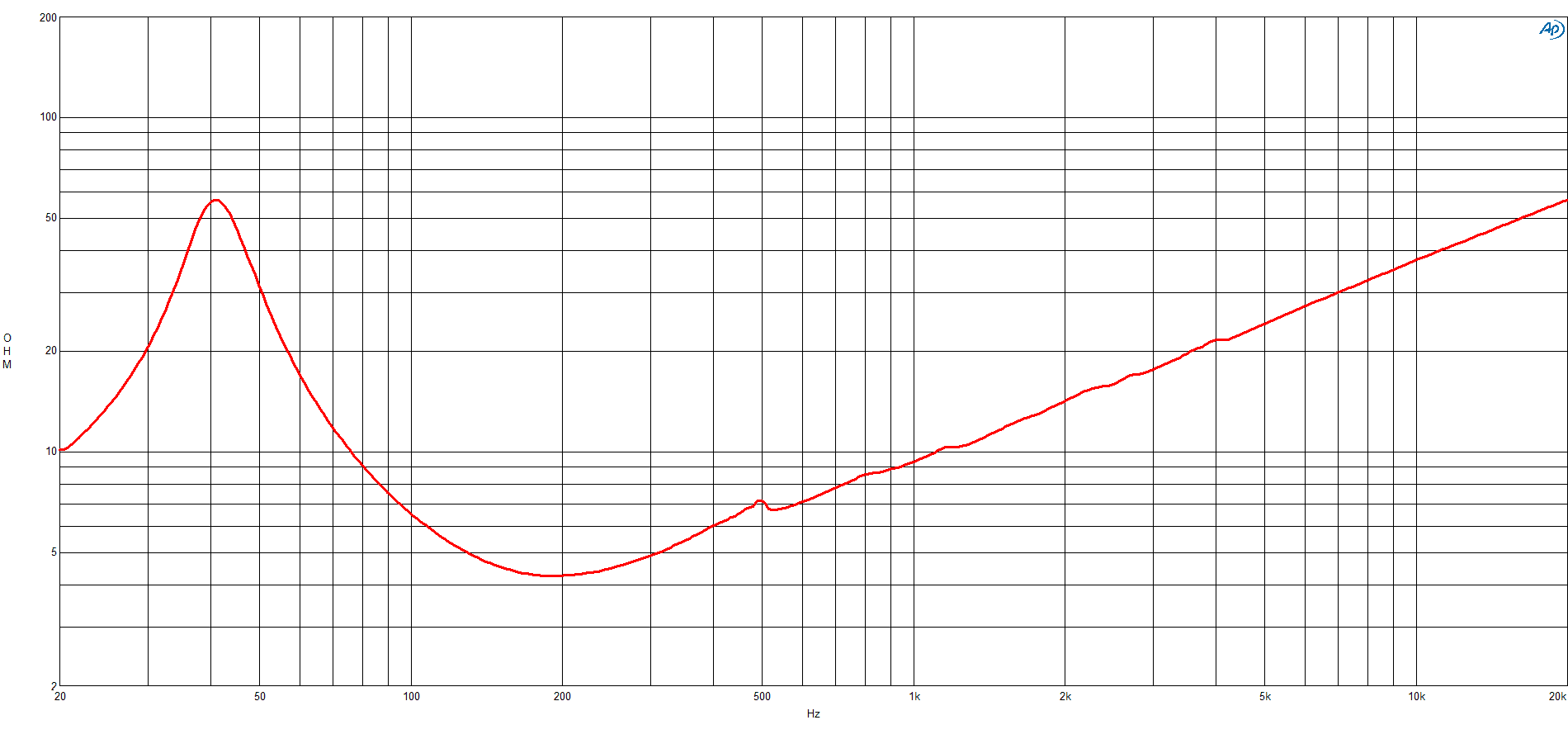

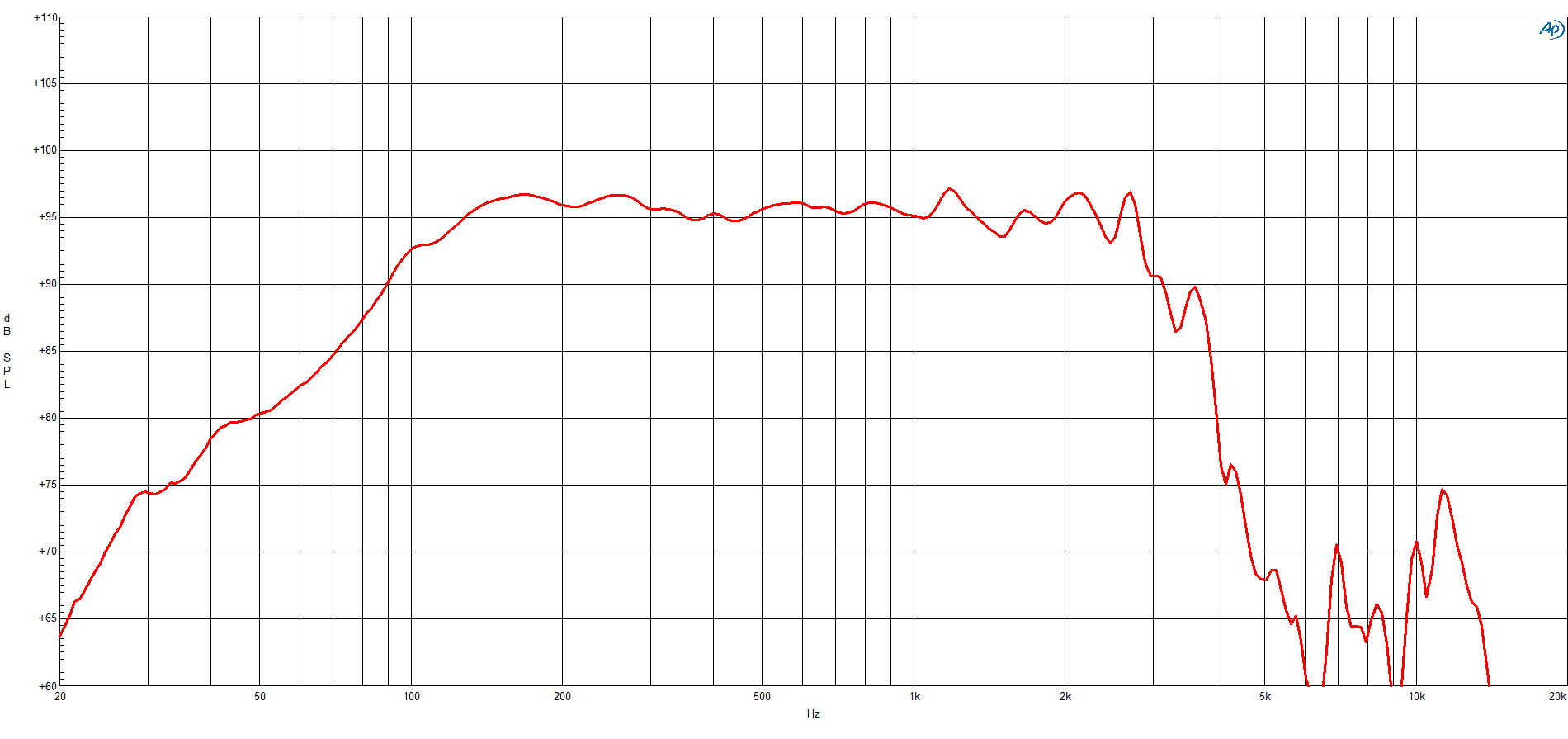

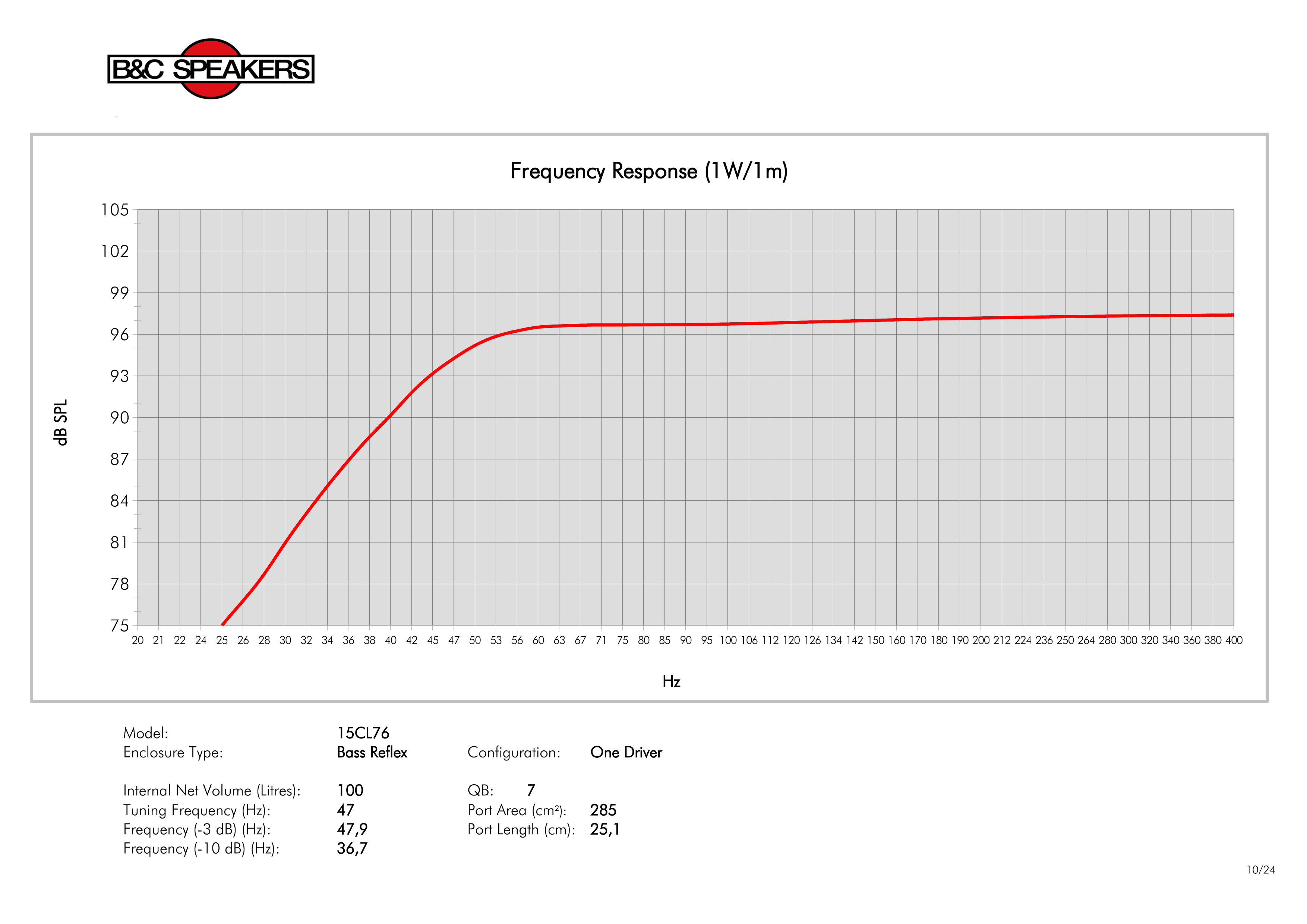

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs42Hz
Qts0.25
Qes0.27
Qms4.7
Vas140.0L
Re3.5Ω
Le1.00mH
BL19.1Tm
Sd855cm²
Mms107g
Xmax7.0mm
SPL98dB
Power400W
Power Nominal400W
Impedance4Ω
Min Impedance4.3Ω
F Low40Hz
F High3000Hz
Voice Coil76mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£152.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight3.8kg
Diameter389.0mm
Overall Depth171.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl19.1 Tm
Fs42 Hz
Le1 mH
Re3.5 Ω
Sd855 cm² (132.5 in²)
Ebp156 Hz
Mms106.5 g
Qes0.27
Qms4.7
Qts0.25
Vas140 dm³ (4.94 ft³)
η03.7 %
ConeRCK15CL764
Xmax7 mm
Xvar8 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth19 mm (0.75 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning47 Hz
Recommended LoadingVented Box
Bolt Circle Diameter374 mm (14.72 in)
Recommended Enclosure100 dm³ (3.53 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter353 mm (13.9 in)
Flange And Gasket Thickness11 mm (0.43 in)
Air Volume Occupied By Driver4.4 dm³ (0.15 ft³)
