Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespEighteen Sound 15ND930 4Ω
LF DriverMedia
Overview
LF Driver
Eighteen Sound

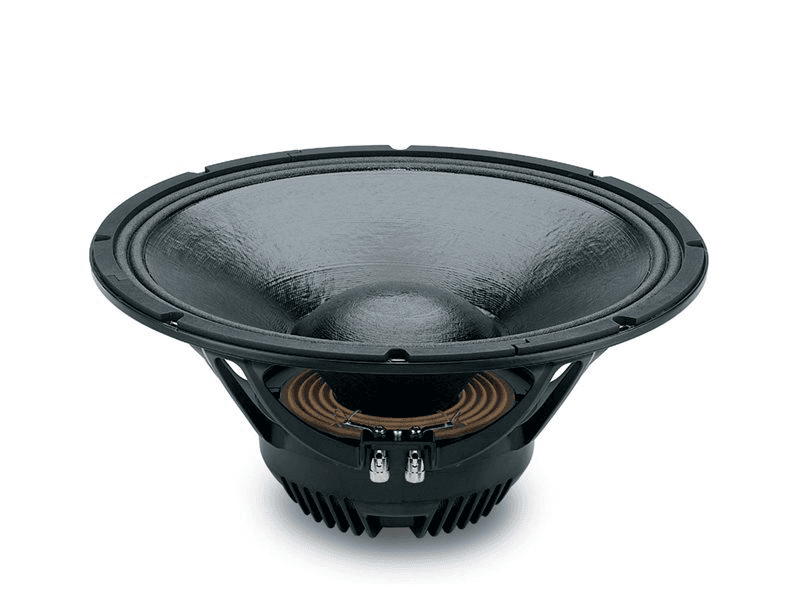

Eighteen Sound 15ND930
Eighteen Sound 15ND930 is a 15" 4 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 35Hz, Qts 0.24, Vas 182L, Xmax 7.5mm, sensitivity 97.1dB, plus 638cm³ Vd and 146 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
4Ω
RMS Power
500W
Sensitivity
97.1dB
EBP
146
Vented alignment
Vd
638cm³
T/S Parameters
Valid
Fs35Hz
Qts0.24
Qes0.24
Qms7.1
Vas182.0L
Re2.8Ω
Le0.52mH
BL17.0Tm
Sd850cm²
Mms113g
Xmax7.5mm
SPL97dB
Power500W
Power Nominal500W
Impedance4Ω
F Low40Hz
F High4100Hz
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter387.0mm
Overall Depth177.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15ND930
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
79%
Similarity

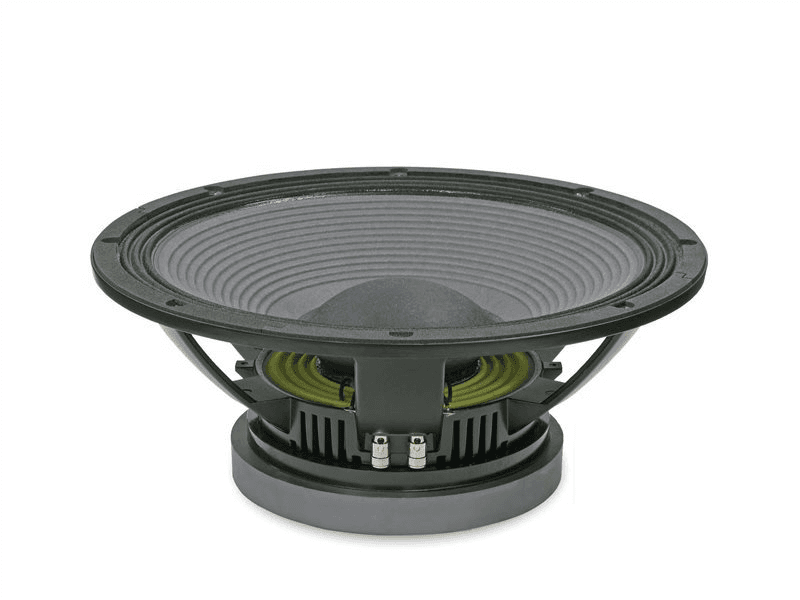

Eighteen Sound
15LW2400
15"
Xmax9.5mm+27%
Qts0.23-4%
BL18Tm+6%
Vas191L+5%
Qes0.240%
76%
Similarity
£153.00
B&C
15CL76
15"
Xmax7mm-7%
Qts0.25+4%
BL19.1Tm+12%
Vas140L-23%
Qes0.27+13%
73%
Similarity
£184.99
B&C
15NDL76
15"
Xmax7mm-7%
Qts0.22-8%
BL22.5Tm+32%
Vas195L+7%
Qes0.240%
72%
Similarity

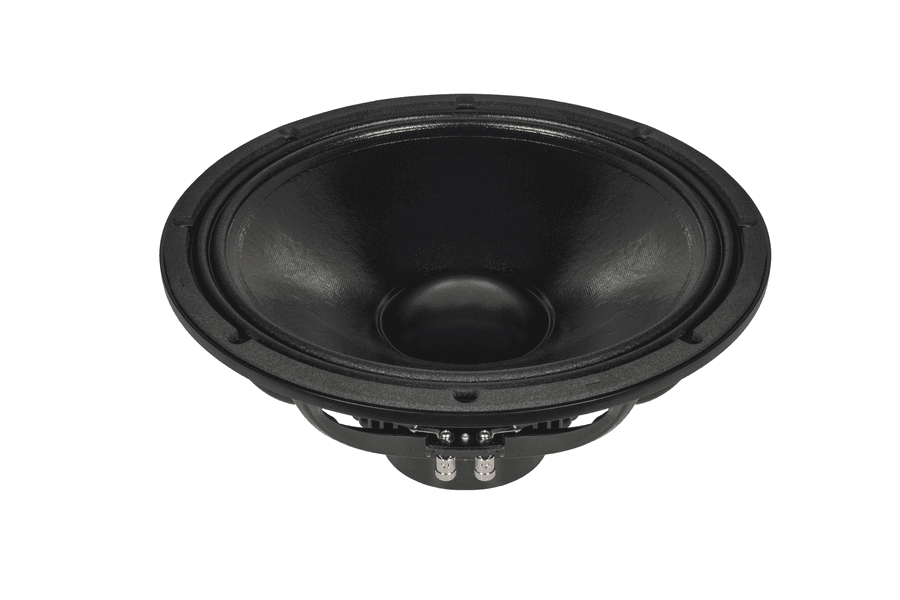

Eighteen Sound
15ND940
15"
Xmax9.5mm+27%
Qts0.26+8%
BL16.6Tm-2%
Vas170L-7%
Qes0.27+13%
71%
Similarity
£244.00
B&C
15NDL88
15"
Xmax8mm+7%
Qts0.28+17%
BL16.5Tm-3%
Vas154L-15%
Qes0.29+21%
70%
Similarity
Precision Devices
PD.153C002
15"
Xmax6.8mm-10%
Qts0.25+4%
BL18.9Tm+11%
Vas263L+45%
Qes0.27+10%
70%
Similarity
£193.05
Eighteen Sound
15W930
15"
Xmax7.5mm0%
Qts0.22-8%
BL22.1Tm+30%
Vas240L+32%
Qes0.23-4%
69%
Similarity
Eighteen Sound
15W700
15"
Xmax6.5mm-13%
Qts0.27+13%
BL14.7Tm-14%
Vas180L-1%
Qes0.29+21%
67%
Similarity
£233.82
B&C
15NW76
15"
Xmax8mm+7%
Qts0.21-12%
BL20.6Tm+21%
Vas143L-21%
Qes0.21-12%
66%
Similarity
£261.07
RCF
MB15N351
15"
Xmax6mm-20%
Qts0.22-8%
BL22.5Tm+32%
Vas191L+5%
Qes0.240%
66%
Similarity
Oberton
15NB451
15"
Xmax7mm-7%
Qts0.26+7%
BL22.9Tm+35%
Vas145.2L-20%
Qes0.26+10%
65%
Similarity
Oberton
15HCX
15"
Xmax7.8mm+3%
Qts0.3+25%
BL17.1Tm0%
Vas205.5L+13%
Qes0.32+32%
