Overview
LF Driver15PD series
Oberton
Oberton 15PD600
Oberton 15PD600 is a 15" 8 ohm LF driver. The validated T/S data includes Fs 38Hz, Qts 0.23, Vas 133.3L, Xmax 8.5mm, sensitivity 97.1dB, plus 705cm³ Vd and 165 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
Sensitivity
97.1dB
200.0dBmanufacturer; using T/S-derived value (102.9dB delta).
EBP
165
Vented alignment
Vd
705cm³
T/S Parameters
Valid
Fs38Hz
Qts0.23
Qes0.23
Qms13.4
Vas133.3L
Re6.3Ω
Le1.17mH
BL28.7Tm
Sd830cm²
Mms125g
Xmax8.5mm
SPL97dB
Impedance8Ω
Min Impedance8.0Ω
F Low38Hz
F High2500Hz
Voice Coil100mm
Flux Density1.38T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

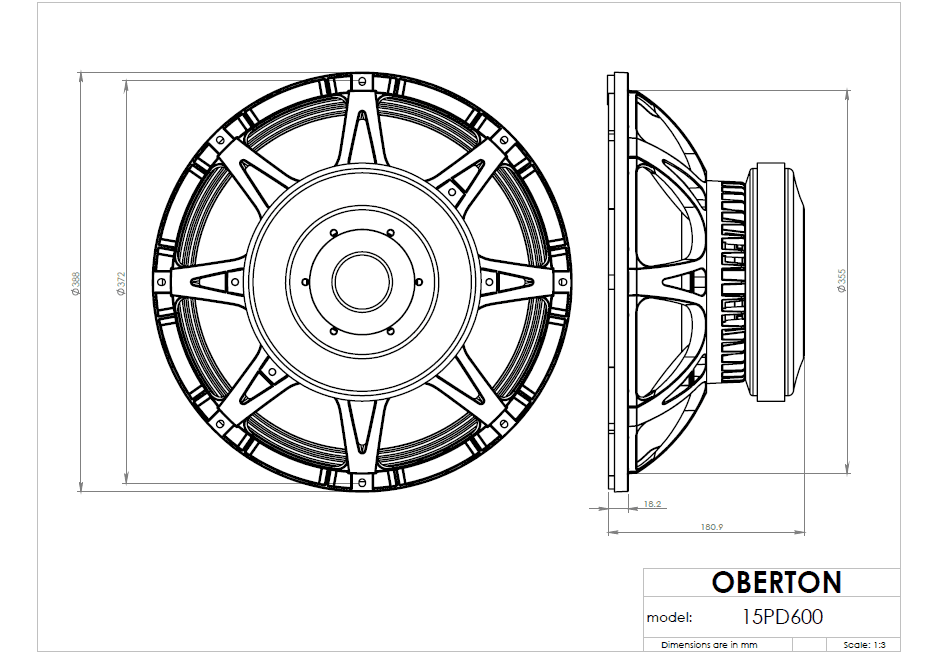

Dimensions & Physical
Weight11.8kg
Diameter388.0mm
Overall Depth181.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Oberton
15PD600
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
100%
Similarity
Oberton
15PD601
15"
Xmax8.5mm0%
Qts0.230%
BL28.7Tm0%
Vas133.3L0%
Qes0.230%
92%
Similarity
£259.00
B&C
15NW100
15"
Xmax9mm+6%
Qts0.22-4%
BL28Tm-2%
Vas139L+4%
Qes0.23-1%
88%
Similarity
£233.82
B&C
15NW76
15"
Xmax8mm-6%
Qts0.22-4%
BL25.5Tm-11%
Vas130L-2%
Qes0.23-1%
87%
Similarity
£259.00
B&C
15NW100
15"
Xmax9mm+6%
Qts0.23+1%
BL24.5Tm-14%
Vas126.1L-5%
Qes0.23-1%
87%
Similarity
£236.08
RCF
LF15N401
15"
Xmax9mm+6%
Qts0.22-4%
BL27.8Tm-3%
Vas160L+20%
Qes0.23-1%
78%
Similarity
£181.02
B&C
15FW76
15"
Xmax7mm-18%
Qts0.21-8%
BL26.2Tm-9%
Vas138L+4%
Qes0.22-5%
75%
Similarity
£285.89
Eighteen Sound
15NMB1000
15"
Xmax6.5mm-24%
Qts0.24+5%
BL25.2Tm-12%
Vas124L-7%
Qes0.24+3%
73%
Similarity
Precision Devices
PD.153C001
15"
Xmax7.7mm-9%
Qts0.22-2%
BL24.2Tm-16%
Vas196L+47%
Qes0.230%
72%
Similarity
£233.82
B&C
15NW76
15"
Xmax8mm-6%
Qts0.21-8%
BL20.6Tm-28%
Vas143L+7%
Qes0.21-9%
72%
Similarity
£225.00
Celestion
FTR15-4080F
15"
Xmax8.5mm0%
Qts0.25+9%
BL23.5Tm-18%
Vas163.1L+22%
Qes0.27+18%
72%
Similarity
£214.72
RCF
L15P400
15"
Xmax8mm-6%
Qts0.25+10%
BL24.8Tm-14%
Vas160L+20%
Qes0.27+16%
71%
Similarity
£254.65
Eighteen Sound
15LW1410
15"
Xmax8.5mm0%
Qts0.27+18%
BL24.1Tm-16%
Vas131L-2%
Qes0.28+21%
