Overview
LF Driver
RCF
RCF LF15N401

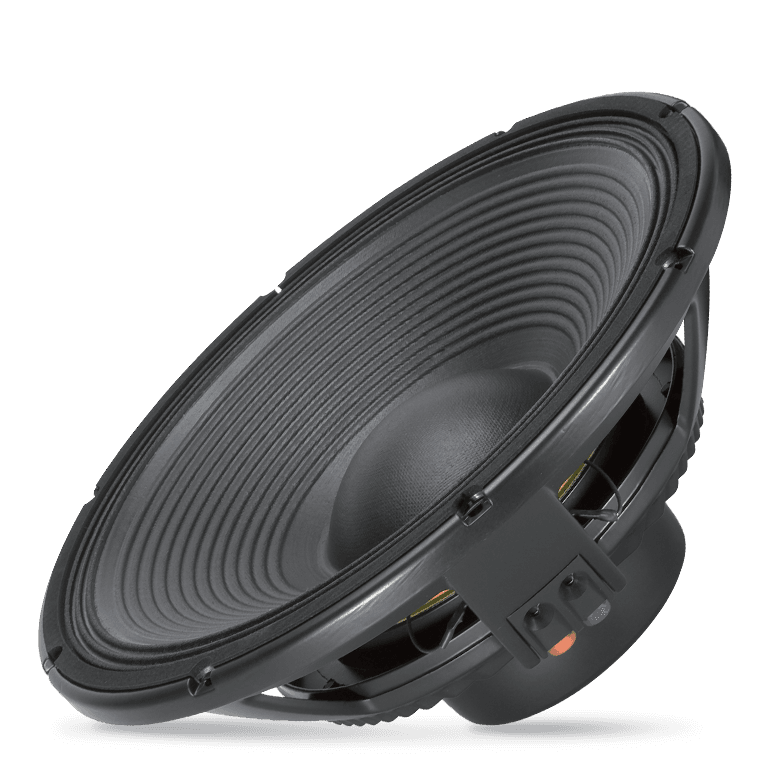

RCF LF15N401 is a 15" 8 ohm LF driver rated at 900W RMS. The validated T/S data includes Fs 34Hz, Qts 0.22, Vas 160L, Xmax 9mm, sensitivity 96.4dB, plus 810cm³ Vd and 148 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £236.08.
Size
15"
Impedance
8Ω
RMS Power
900W
Sensitivity
96.4dB
EBP
148
Vented alignment
Vd
810cm³
T/S Parameters
Valid
Fs34Hz
Qts0.22
Qes0.23
Qms5.8
Vas160.0L
Re5.1Ω
Le2.50mH
BL27.8Tm
Sd900cm²
Mms158g
Xmax9.0mm
SPL96dB
Power900W
Impedance8Ω
Min Impedance6.3Ω
F Low35Hz
F High1500Hz
Voice Coil102mm
Pricing & availability
Price definitionsPrice movement
Other offers
3 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£302.75
inc VAT
leanbusiness
Updated 17 May 2026· 8Ω
Source: inc VAT · 20%
£320.97
inc VAT
thomann
Updated 11 Sept 2026
Source: inc VAT · 20%
£339.00
inc VAT
In stock
Best current price
Updated 17 May 2026
leanbusiness
£236.08
Avg £299.70£63.62 below avg (-21.2%)
inc VAT
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.8kg
Diameter393.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter376.0mm
