Precision Devices PD.155NR1 8Ω
8 Ω · 45–2000 Hz
No current price
- Fs
- 37Hz
- Xmax
- 12mm
- SPL
- 97dB
- Pe
- 1000W
- BL
- 28.6T·m
- Vd
- 1074cm³
- Qts
- 0.23
- Vas
- 140L

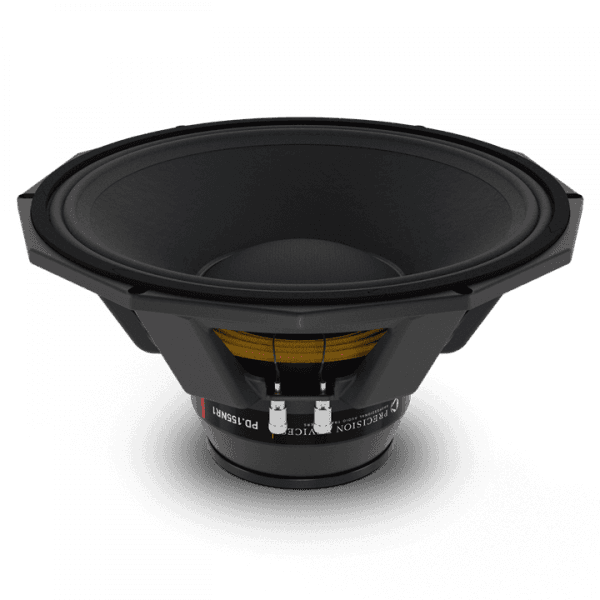

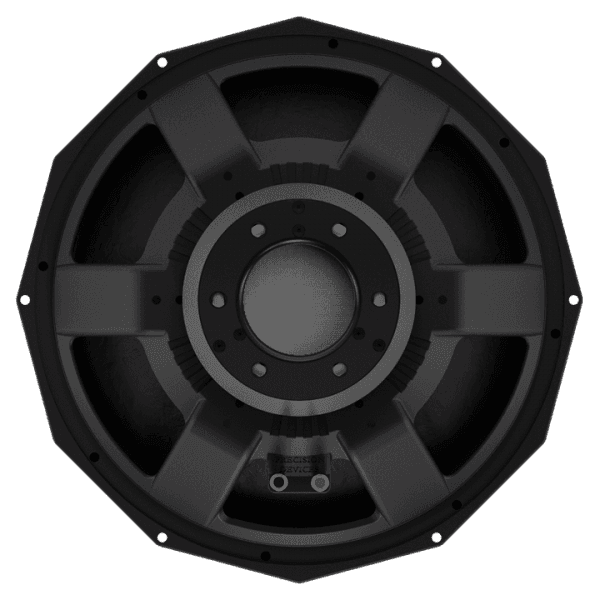

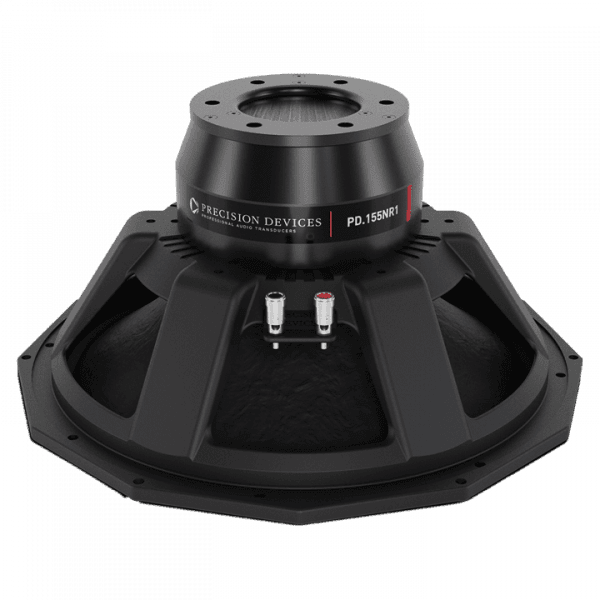

Precision Devices PD.155NR1 is a 15-inch 8 ohm LF driver rated at 1000 W RMS. The validated T/S data includes Fs 37 Hz, Qts 0.23, Vas 140 L, Xmax 12 mm, sensitivity 96.8 dB, plus 1074 cm³ Vd and 156 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 37Hz
- Qts
- 0.23
- Qes
- 0.24
- Qms
- 6.1
- Vas
- 140L
- Re
- 5.4Ω
- Le
- 2.35mH
Motor and cone
- BL
- 28.6T·m
- Sd
- 895cm²
- Mms
- 154g
- Xmax
- 12mm
- Vd †
- 1074cm³
- Voice coil
- 127mm
- Flux density
- 1.18T
Power and response
- Sensitivity †
- 96.8dB
- Manufacturer sensitivity
- 98.5dB
- Power
- 1000W
- Impedance
- 8Ω
- Range
- 45–2000Hz
- EBP †
- 156 · Leans vented
Size and mounting
- Diameter
- 408.3mm
- Cutout
- 356mm
- Bolt circle
- 395mm
- Depth
- 190mm
- Weight
- 11.5kg
Other published values
- Cms
- 0.12mm/N
- Power Peak
- 4000
Sensitivity shows 96.8 dB, calculated from the T/S values. Precision Devices publishes 98.5 dB, 1.7 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Precision Devices lists
LF · Primary · 15″
- BL
- 28.6T·m
- Fs
- 37Hz
- Le
- 2.35mH
- Re
- 5.4Ω
- Sd
- 895cm²
- Cms
- 0.12mm/N
- Mms
- 154g
- Qes
- 0.24
- Qms
- 6.1
- Qts
- 0.23
- SPL
- 96.8dB
- Vas
- 140L
- Xmax
- 12mm
- Power
- 1000W
- Impedance
- 8Ω
- Power Peak
- 4000
- Flux density
- 1.18T
- Sensitivity
- 98.5dB
- Low limit
- 45Hz
- Calculated sensitivity †
- 96.8dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 98.5dB
- Voice coil
- 127mm
- Weight
- 11.5kg
- Diameter
- 408.3mm
- Depth
- 190mm
- Cutout
- 356mm
- Bolt circle
- 395mm
