LF Driver15SW series
B&C
B&C 15SW115
B&C 15SW115 is a 15" 8 ohm LF driver rated at 1700W RMS. The validated T/S data includes Fs 35Hz, Qts 0.24, Vas 110L, Xmax 13.5mm, sensitivity 94.8dB, plus 1154cm³ Vd and 140 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £390.95.
Size
15"
Impedance
8Ω
RMS Power
1700W
Sensitivity
94.8dB
96.0dBmanufacturer; using T/S-derived value (1.2dB delta).
EBP
140
Vented alignment
Vd
1154cm³

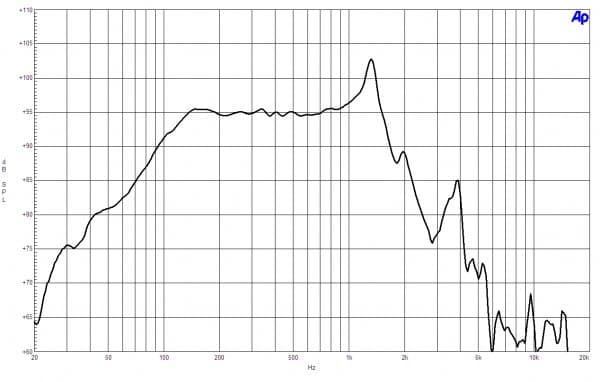

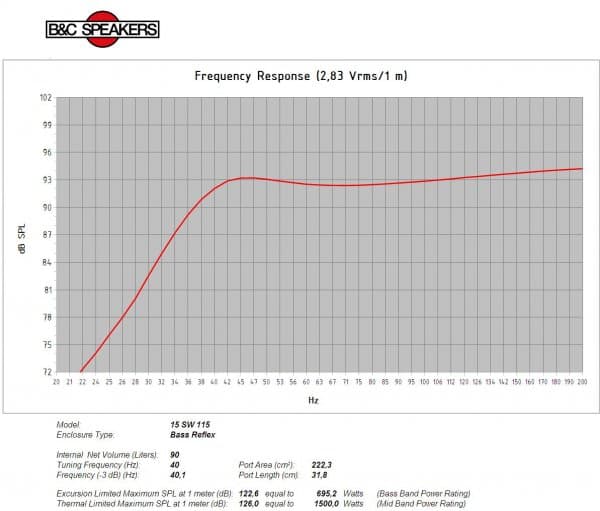

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs35Hz
Qts0.24
Qes0.25
Qms4.4
Vas110.0L
Re5.2Ω
Le1.80mH
BL30.0Tm
Sd855cm²
Mms200g
Xmax13.5mm
SPL95dB
Power1700W
Power Nominal1700W
Impedance8Ω
Min Impedance6.5Ω
F Low35Hz
F High1500Hz
Voice Coil116mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Best current price
£390.95
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.1kg
Diameter393.0mm
Overall Depth193.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl30 Tm
Fs35 Hz
Le1.8 mH
Re5.2 Ω
Sd855 cm² (132.5 in²)
Ebp140 Hz
Mms200 g
Qes0.25
Qms4.4
Qts0.24
Vas110 dm³ (3.9 ft³)
η01.8 %
ConeRCK15SW1158
Xmax13.5 mm
Xvar13 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth34 mm (1.33 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth14 mm (0.55 in)
Recommended Tuning40 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure90 dm³ (3.2 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter353 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.63 in)
Air Volume Occupied By Driver7 dm³ (0.25 ft³)
