Overview
LF DriverXL series
FaitalPRO

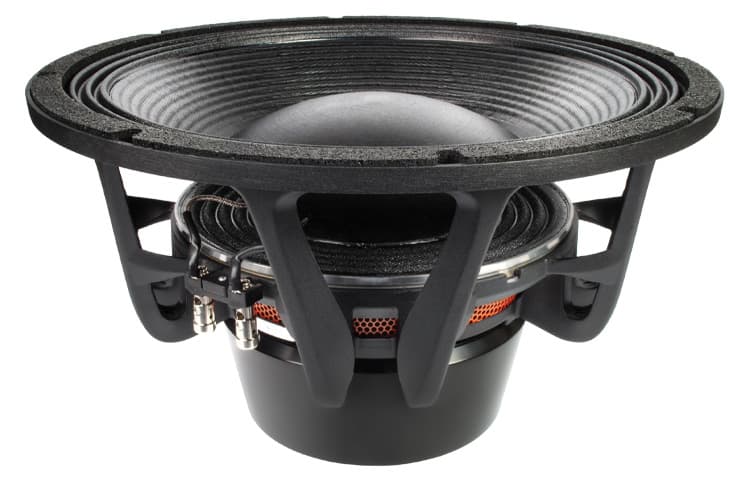

FaitalPRO 15XL2400
FaitalPRO 15XL2400 is a 15" 8 ohm LF driver rated at 2200W RMS. The validated T/S data includes Fs 32Hz, Qts 0.21, Vas 113.9L, Xmax 17.7mm, sensitivity 94.5dB, plus 1498cm³ Vd and 152 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
2200W
Sensitivity
94.5dB
96.0dBmanufacturer; using T/S-derived value (1.5dB delta).
EBP
152
Vented alignment
Vd
1498cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
0 degrees200 ptsp1medium
45 degrees240 ptsp1medium
Curve provenanceInspect 3 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
200 plotted pointsMedium confidence924 selected pixels of 1,592 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,686 selected pixels of 1,686 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,492 selected pixels of 1,492
T/S Parameters
Valid
Fs32Hz
Qts0.21
Qes0.21
Qms15.4
Vas113.9L
Re6.3Ω
Le1.40mH
BL36.0Tm
Sd848cm²
Mms218g
Xmax17.7mm
SPL95dB
Power2200W
Impedance8Ω
F Low30Hz
F High1500Hz
Pricing & availability
Price definitionsUse this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight15.7kg
Diameter393.0mm
Overall Depth237.5mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
