LF Driver15DS series
B&C

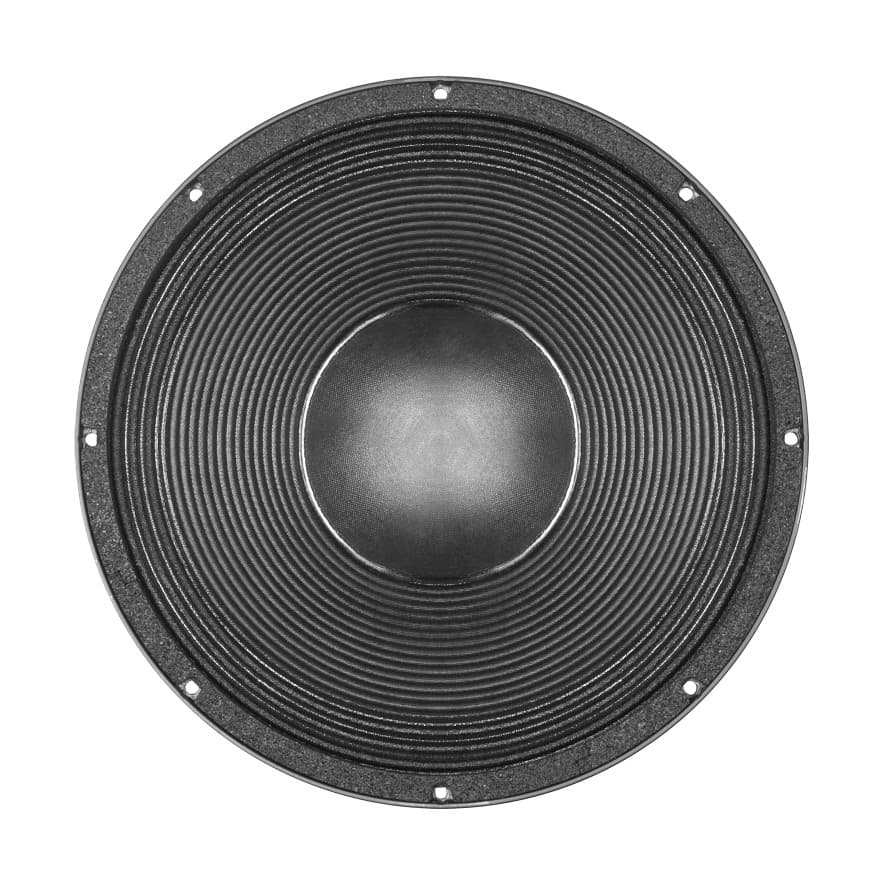

B&C 15DS115
B&C 15DS115 is a 15" 8 ohm LF driver rated at 1600W RMS. The validated T/S data includes Fs 33Hz, Qts 0.17, Vas 94L, Xmax 16.5mm, sensitivity 94.8dB, plus 1411cm³ Vd and 183 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £408.62.
Size
15"
Impedance
8Ω
RMS Power
1600W
Sensitivity
94.8dB
97.0dBmanufacturer; using T/S-derived value (2.2dB delta).
EBP
183
Vented alignment
Vd
1411cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
free-air SPL240 ptsp3medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v2

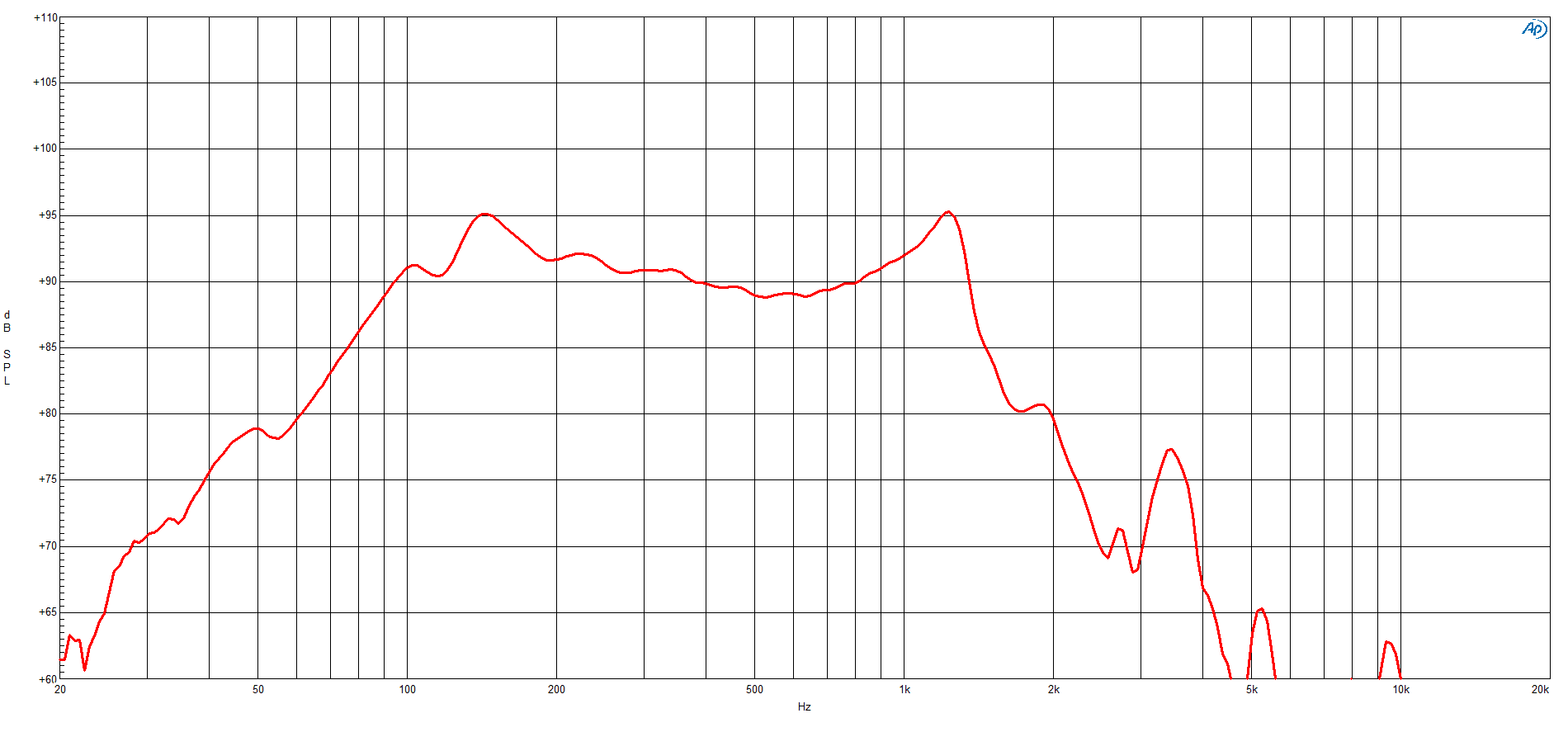

free-air SPL
Frequency response
240 plotted pointsSource file SHA-256 413f1adb5840…Medium confidence3,165 selected pixels of 3,439 - Trace datasheet-response-trace-poc/v2

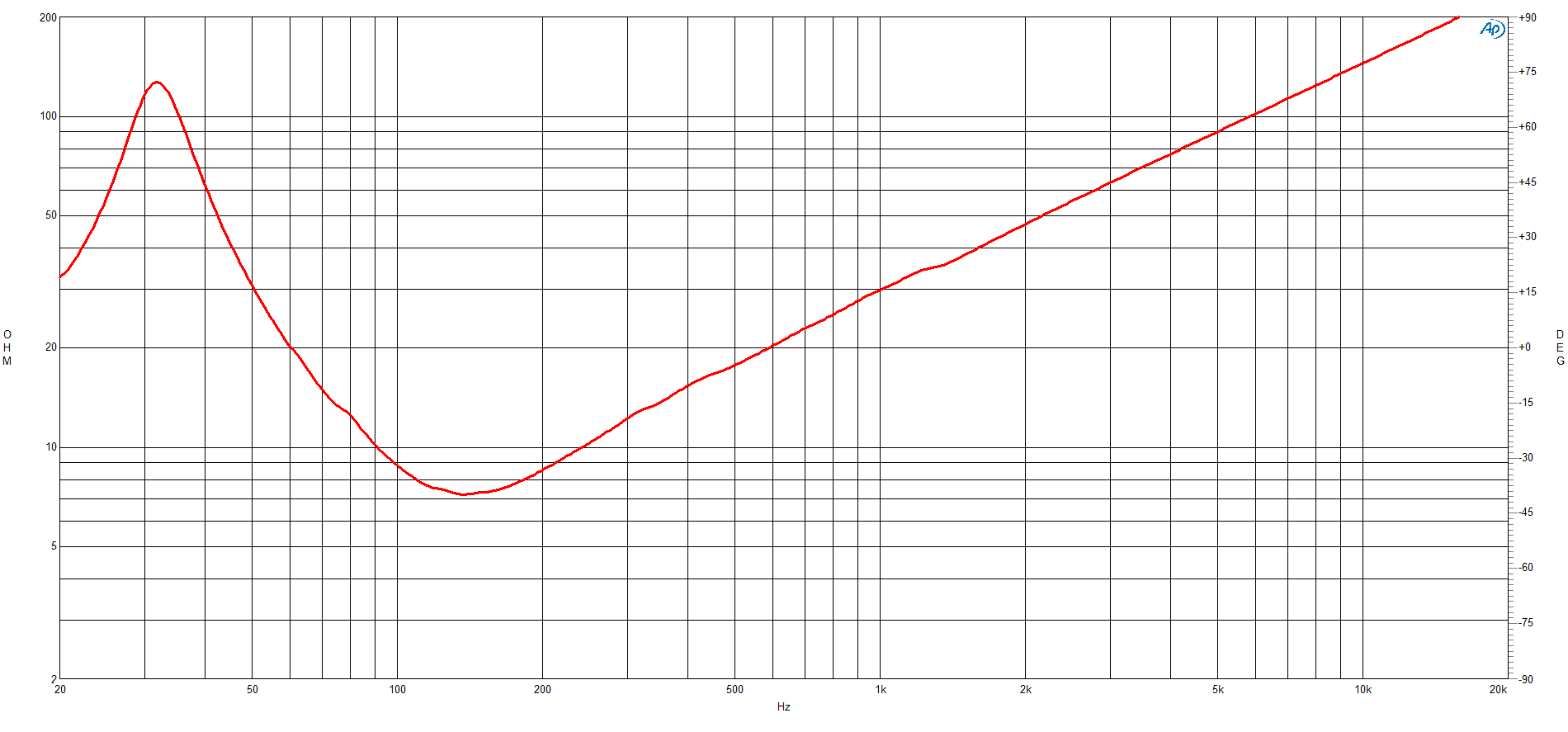

free-air impedance
Impedance response
240 plotted pointsSource file SHA-256 413f1adb5840…Medium confidence2,755 selected pixels of 2,755

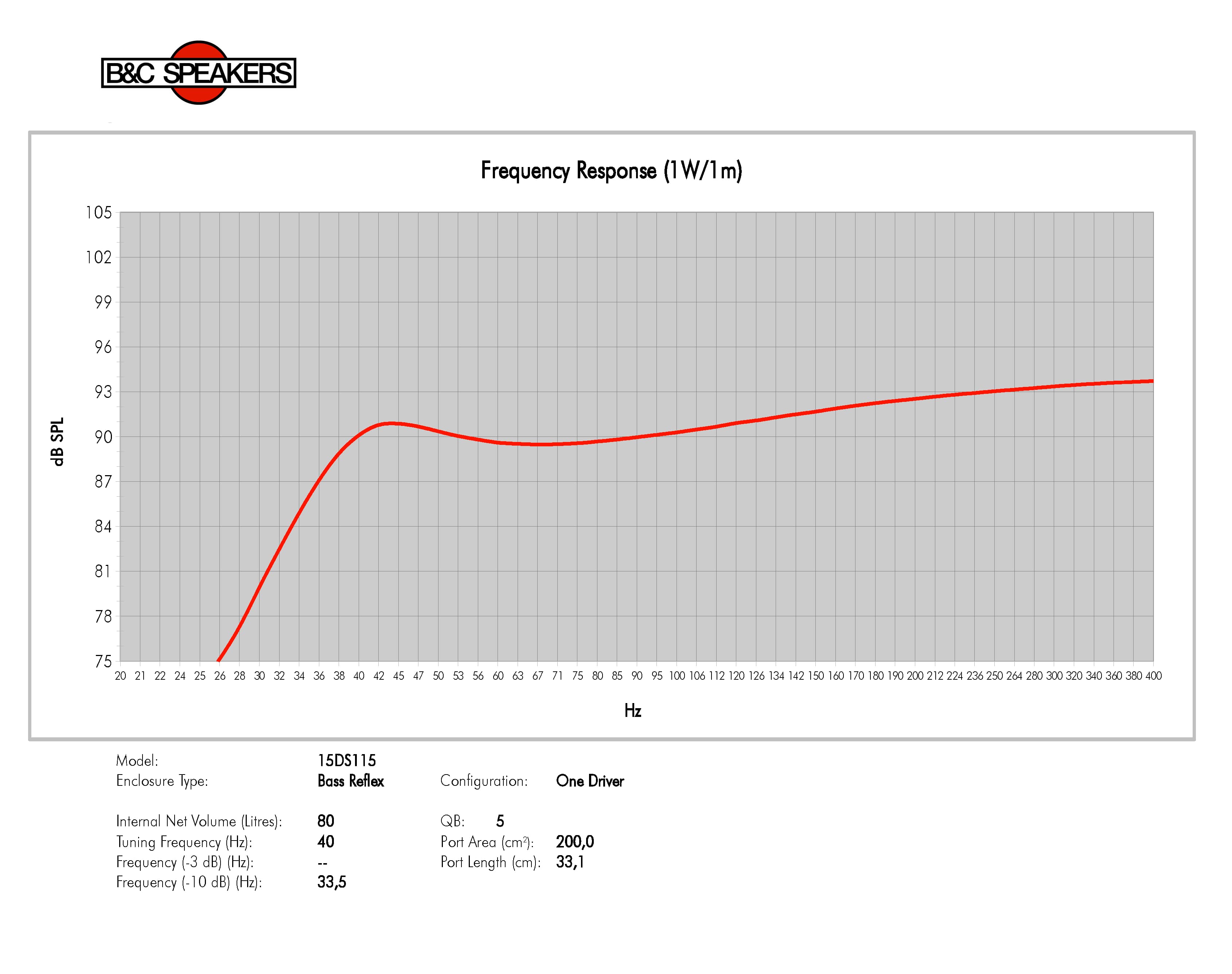

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs33Hz
Qts0.17
Qes0.18
Qms5.2
Vas94.0L
Re4.9Ω
Le4.50mH
BL38.7Tm
Sd855cm²
Mms254g
Xmax16.5mm
SPL95dB
Power1600W
Power Nominal1600W
Impedance8Ω
Min Impedance7.2Ω
F Low35Hz
F High1000Hz
Voice Coil116mm
Flux Density0.80T
Pricing & availability
Price definitionsPrice movement
Other offers
7 vendorsjpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£408.62
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£408.62
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£408.62
inc VAT
In stock
bluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£421.99
inc VAT
1 in stock
bluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£421.99
inc VAT
27 in stock5-7 weeks
thomann
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£425.00
inc VAT
In stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£511.73
inc VAT
8 in stock
Best current price
Updated 7 Aug 2026
jpleisure
£408.62
Avg £426.90£18.28 below avg (-4.3%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight11.7kg
Diameter393.0mm
Overall Depth199.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter375.0mm
Additional Manufacturer Specs
Bl38.7 Tm
Fs33 Hz
Le4.5 mH
Re4.9 Ω
Sd855 cm² (132.53 in²)
Ebp183 Hz
Mms254 g
Qes0.18
Qms5.2
Qts0.17
Vas94 dm³ (3.32 ft³)
η01.9 %
ConeRCK15DS1158
Xmax16.5 mm
Xvar14 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth40 mm (1.57 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialAluminium
Magnetic Gap Depth14 mm (0.55 in)
Recommended Tuning40 Hz
Bolt Circle Diameter375 mm (14.76 in)
Recommended Enclosure80 dm³ (2.83 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.94 in)
Flange And Gasket Thickness15 mm (0.59 in)
Air Volume Occupied By Driver7 dm³ (0.25 ft³)
