LF Driver15NMB series
Oberton
Oberton 15NMB600
Oberton 15NMB600 is a 15" 8 ohm LF driver. The validated T/S data includes Fs 43Hz, Qts 0.17, Vas 145.2L, Xmax 5.3mm, sensitivity 100.2dB, plus 436cm³ Vd and 243 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
Sensitivity
100.2dB
200.0dBmanufacturer; using T/S-derived value (99.8dB delta).
EBP
243
Vented alignment
Vd
436cm³
T/S Parameters
Valid
Fs43Hz
Qts0.17
Qes0.18
Qms7.2
Vas145.2L
Re5.5Ω
Le1.01mH
BL27.4Tm
Sd830cm²
Mms90g
Xmax5.3mm
SPL100dB
Impedance8Ω
Min Impedance6.3Ω
F Low45Hz
F High3000Hz
Voice Coil100mm
Flux Density1.45T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

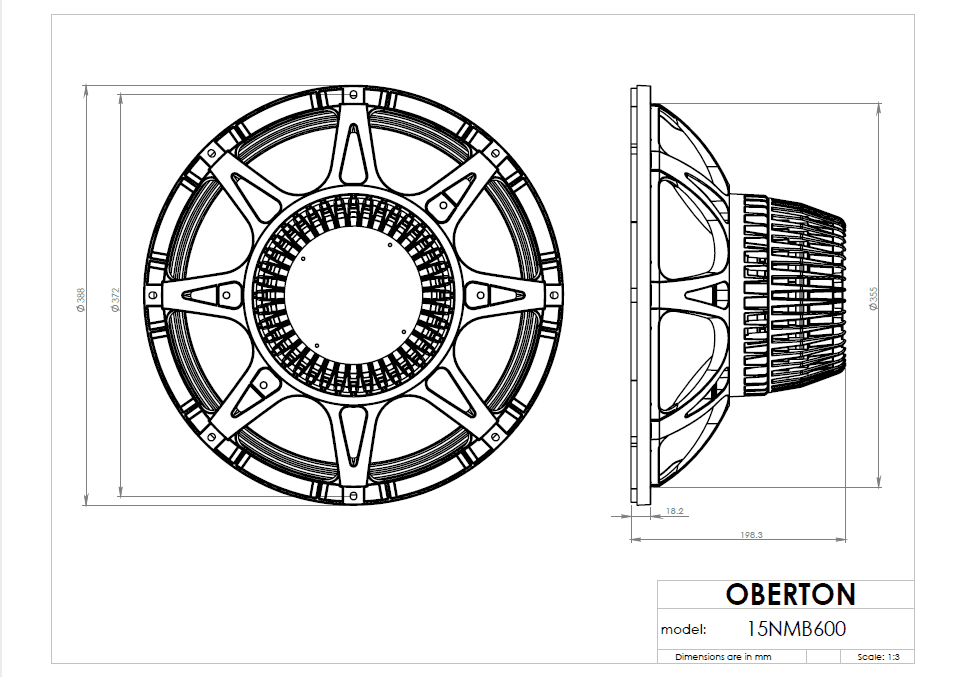

Dimensions & Physical
Weight7.9kg
Diameter388.0mm
Overall Depth198.3mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
