15-inch LF driver · 15NMB series · 100 mm voice coil · 600 W

Oberton 15NMB601 8Ω

Name: Oberton 15NMB601 8 Ohm
Brand: Oberton
SKU: 15NMB601

8 Ω · 45–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 43Hz
Xmax: 5.3mm
SPL: 100dB
Pe: 600W
BL: 27.4T·m
Vd: 436cm³
Qts: 0.17
Vas: 145L

See all 28 specs

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 15NMB601 is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 43 Hz, Qts 0.17, Vas 145.2 L, Xmax 5.3 mm, sensitivity 100.2 dB, plus 436 cm³ Vd and 243 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 43Hz
Qts: 0.17
Qes: 0.18
Qms: 7.2
Vas: 145.2L
Re: 5.5Ω
Le: 1.01mH

Motor and cone

BL: 27.4T·m
Sd: 830cm²
Mms: 90g
Xmax: 5.3mm
Vd †: 436cm³
Voice coil: 100mm
Flux density: 1.45T

Power and response

Sensitivity †: 100.2dB
Manufacturer sensitivity: 200dB
Power: 600W
Impedance: 8Ω
Min. impedance: 6.3Ω
Range: 45–3000Hz
EBP †: 243 · Leans vented

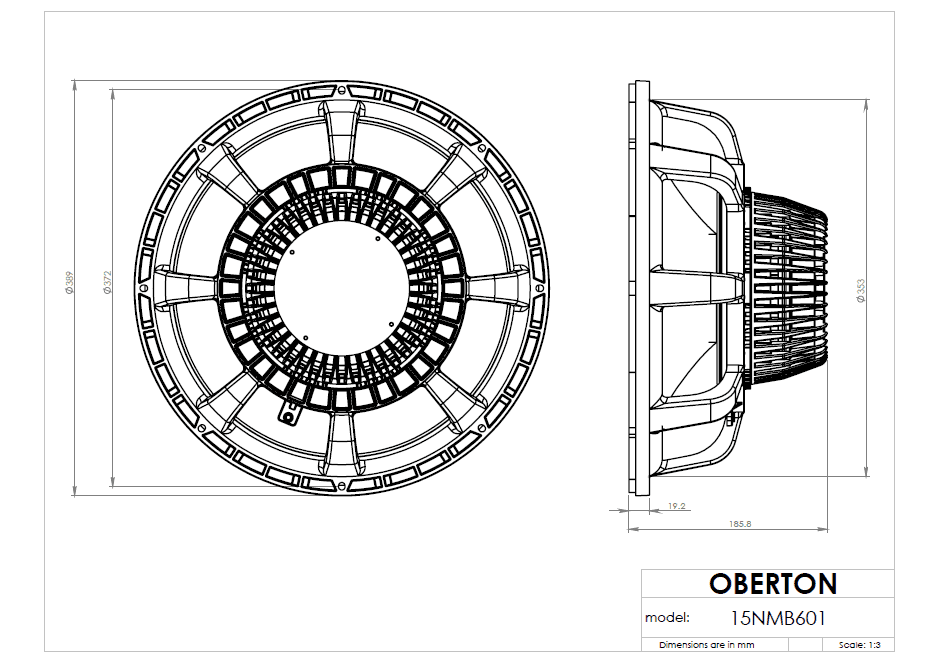

Size and mounting

Diameter: 389mm
Cutout: 353mm
Bolt circle: 372mm
Depth: 185.8mm
Weight: 8.4kg

Other published values

Cms: 0.15mm/N
Power Program: 1200

Sensitivity shows 100.2 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 99.8 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 27.4T·m
Fs: 43Hz
Le: 1.01mH
Re: 5.5Ω
Sd: 830cm²
Cms: 0.15mm/N
Mms: 90g
Qes: 0.18
Qms: 7.2
Qts: 0.17
SPL: 100.2dB
Vas: 145.2L
Xmax: 5.3mm
Power: 600W
Impedance: 8Ω
Flux density: 1.45T
Sensitivity: 200dB
Low limit: 45Hz
Power Program: 1200
Calculated sensitivity †: 100.2dB
High limit: 3000Hz
Manufacturer sensitivity: 200dB
Min. impedance: 6.3Ω
Voice coil: 100mm
Weight: 8.4kg
Diameter: 389mm
Depth: 185.8mm
Cutout: 353mm
Bolt circle: 372mm
