LF Driver15MB series
Oberton
Oberton 15MB601
Oberton 15MB601 is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 41Hz, Qts 0.18, Vas 139.0L, Xmax 5.5mm, sensitivity 98.9dB, plus 456cm³ Vd and 214 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
98.9dB
200.0dBmanufacturer; using T/S-derived value (101.1dB delta).
EBP
214
Vented alignment
Vd
456cm³
T/S Parameters
Valid
Fs41Hz
Qts0.18
Qes0.19
Qms7.3
Vas139.0L
Re5.2Ω
Le1.08mH
BL27.1Tm
Sd830cm²
Mms106g
Xmax5.5mm
SPL99dB
Power600W
Impedance8Ω
Min Impedance6.7Ω
F Low37Hz
F High2000Hz
Voice Coil100mm
Flux Density1.40T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

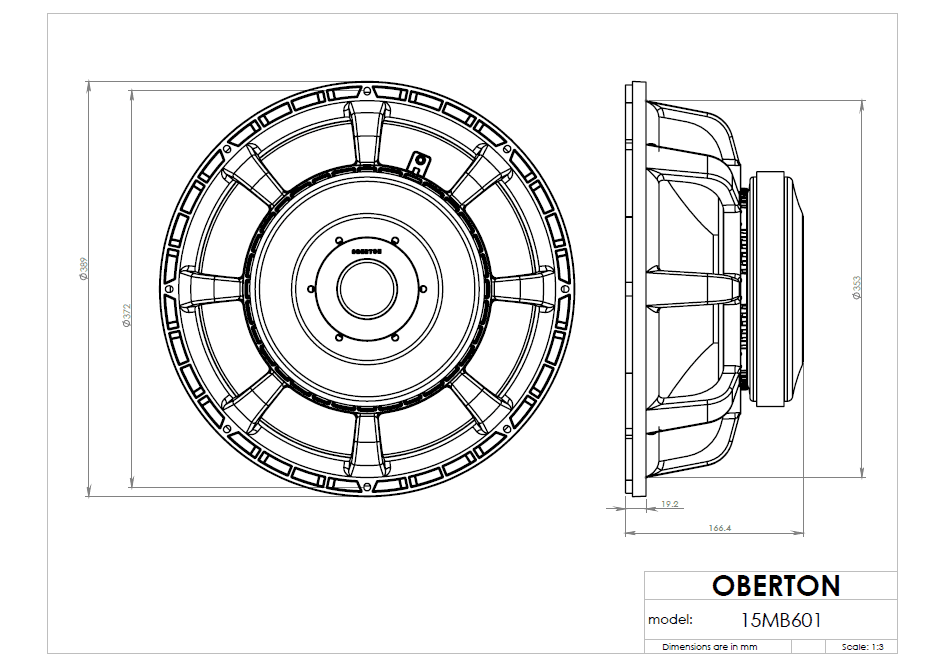

Dimensions & Physical
Weight11.2kg
Diameter389.0mm
Overall Depth166.4mm
Cutout Diameter353.0mm
Bolt Circle Diameter372.0mm
