Overview
LF Driver
Beyma
Beyma 15MLEX1000ND
Beyma 15MLEX1000ND is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 38Hz, Qts 0.21, Vas 167L, Xmax 11mm, sensitivity 98.4dB, plus 968cm³ Vd and 181 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
98.4dB
100.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
181
Vented alignment
Vd
968cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
impedance240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence3,181 selected pixels of 3,181
Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs38Hz
Qts0.21
Qes0.21
Qms7.2
Vas167.0L
Re5.3Ω
Le1.30mH
BL26.0Tm
Sd880cm²
Mms111g
Xmax11.0mm
SPL98dB
Power1000W
Impedance8Ω
F Low40Hz
F High3000Hz
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.4kg
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Beyma
15MLEX1000ND
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
78%
Similarity
£236.08
RCF
LF15N401
15"
Xmax9mm-18%
Qts0.22+5%
BL27.8Tm+7%
Vas160L-4%
Qes0.23+10%
74%
Similarity
£259.00

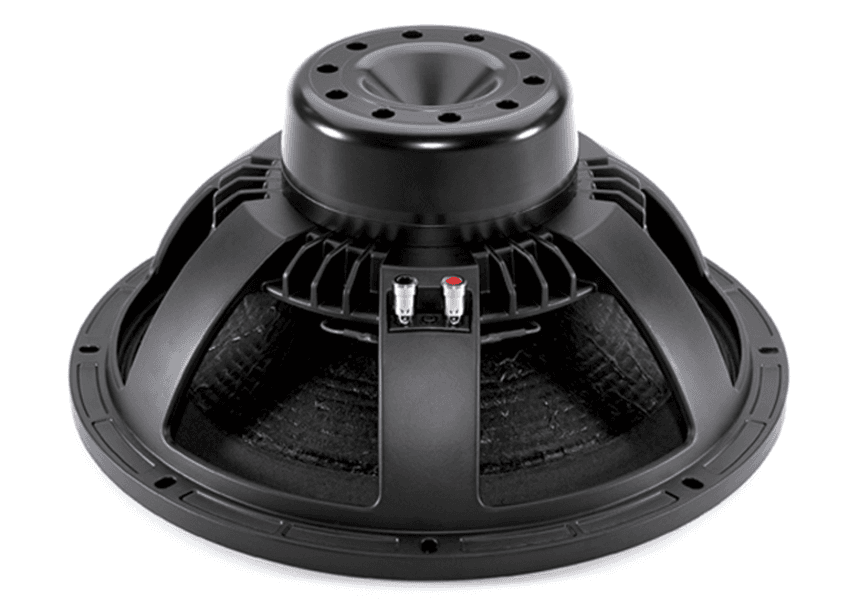

B&C
15NW100
15"
Xmax9mm-18%
Qts0.22+5%
BL28Tm+8%
Vas139L-17%
Qes0.23+10%
74%
Similarity

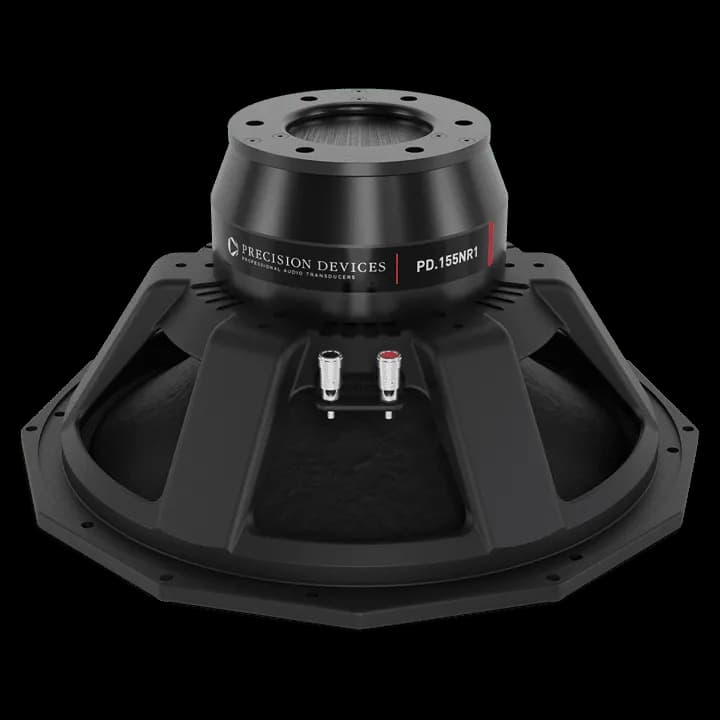

Precision Devices
PD.155NR1
15"
Xmax12mm+9%
Qts0.23+9%
BL28.6Tm+10%
Vas140L-16%
Qes0.24+13%
71%
Similarity
£233.82
B&C
15NW76
15"
Xmax8mm-27%
Qts0.210%
BL20.6Tm-21%
Vas143L-14%
Qes0.210%
70%
Similarity
£233.82
B&C
15NW76
15"
Xmax8mm-27%
Qts0.22+5%
BL25.5Tm-2%
Vas130L-22%
Qes0.23+10%
70%
Similarity
£259.00
B&C
15NW100
15"
Xmax9mm-18%
Qts0.23+10%
BL24.5Tm-6%
Vas126.1L-24%
Qes0.23+10%
69%
Similarity
£395.70

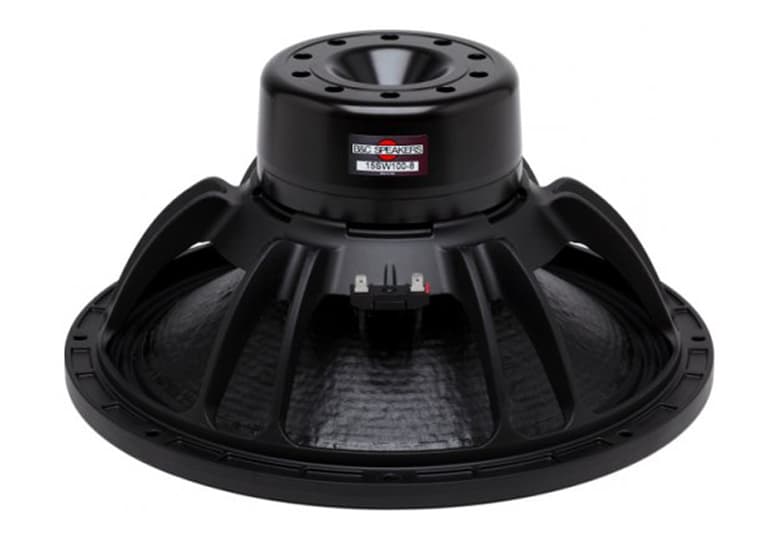

B&C
15SW115
15"
Xmax13.5mm+23%
Qts0.22+5%
BL25.5Tm-2%
Vas105L-37%
Qes0.23+10%
66%
Similarity
Precision Devices
PD.153C001
15"
Xmax7.7mm-30%
Qts0.22+6%
BL24.2Tm-7%
Vas196L+17%
Qes0.23+10%
66%
Similarity

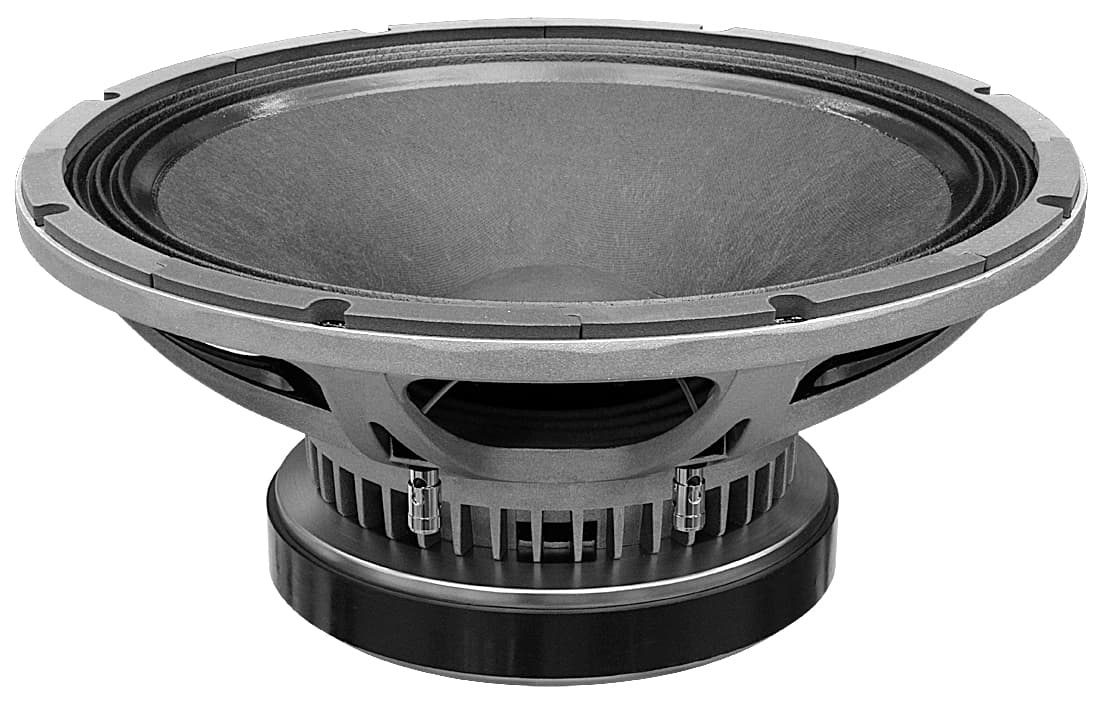

Oberton
15PD600
15"
Xmax8.5mm-23%
Qts0.23+9%
BL28.7Tm+10%
Vas133.3L-20%
Qes0.23+10%
66%
Similarity

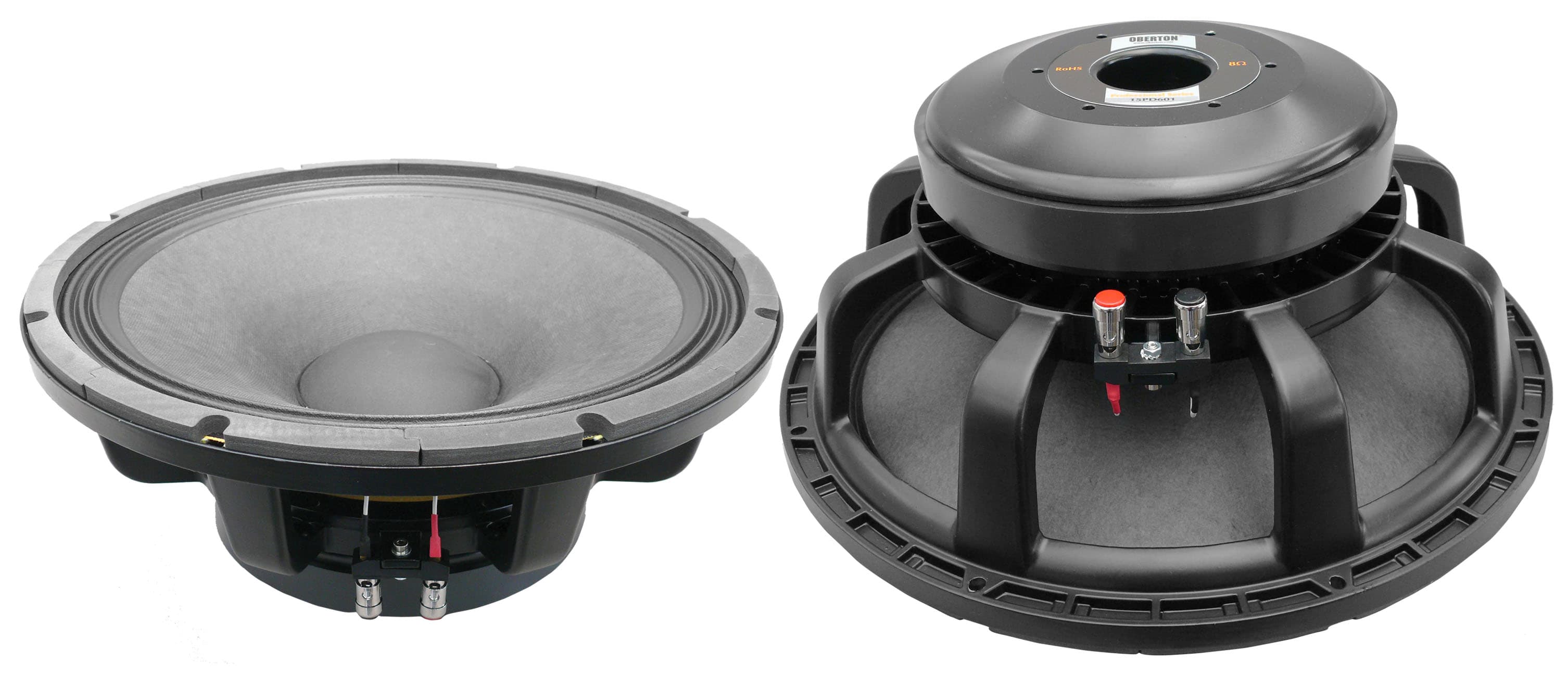

Oberton
15PD601
15"
Xmax8.5mm-23%
Qts0.23+9%
BL28.7Tm+10%
Vas133.3L-20%
Qes0.23+10%
62%
Similarity
£225.95
CIARE
NDH15-4S
15"
Xmax11.5mm+5%
Qts0.25+19%
BL24.2Tm-7%
Vas220L+32%
Qes0.26+24%
60%
Similarity
£340.51
B&C
15DS100
15"
Xmax13mm+18%
Qts0.23+10%
BL24.3Tm-7%
Vas73L-56%
Qes0.23+10%
