Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespMedia
Overview
LF Driver
Eighteen Sound
Eighteen Sound 15ND930
Eighteen Sound 15ND930 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 36Hz, Qts 0.22, Vas 206L, Xmax 7.5mm, sensitivity 98.2dB, plus 638cm³ Vd and 157 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £266.78.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.2dB
EBP
157
Vented alignment
Vd
638cm³
Datasheet traces

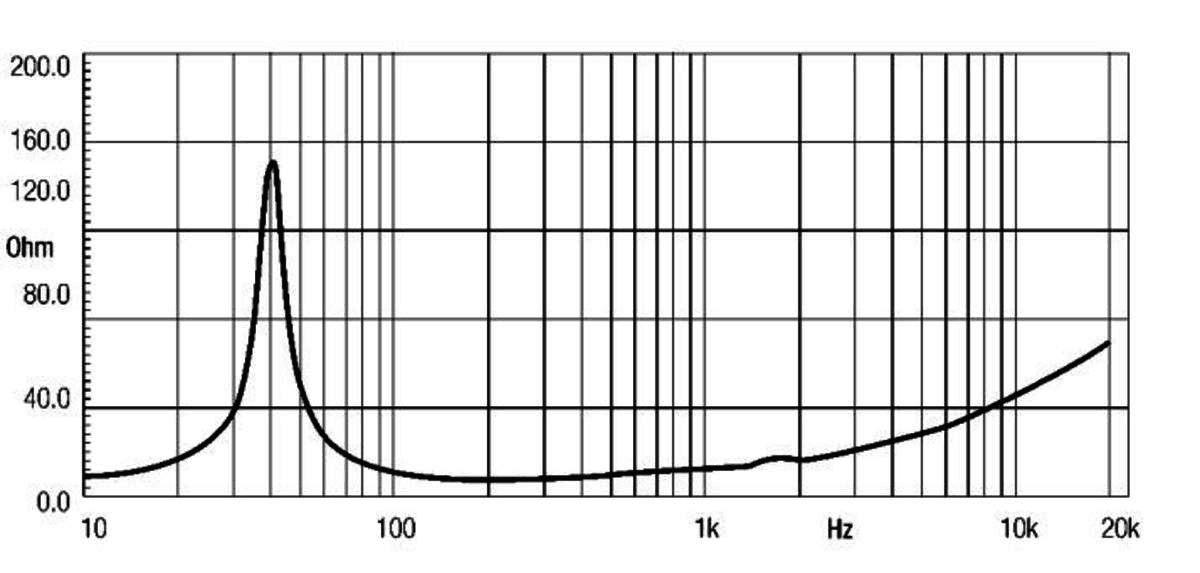

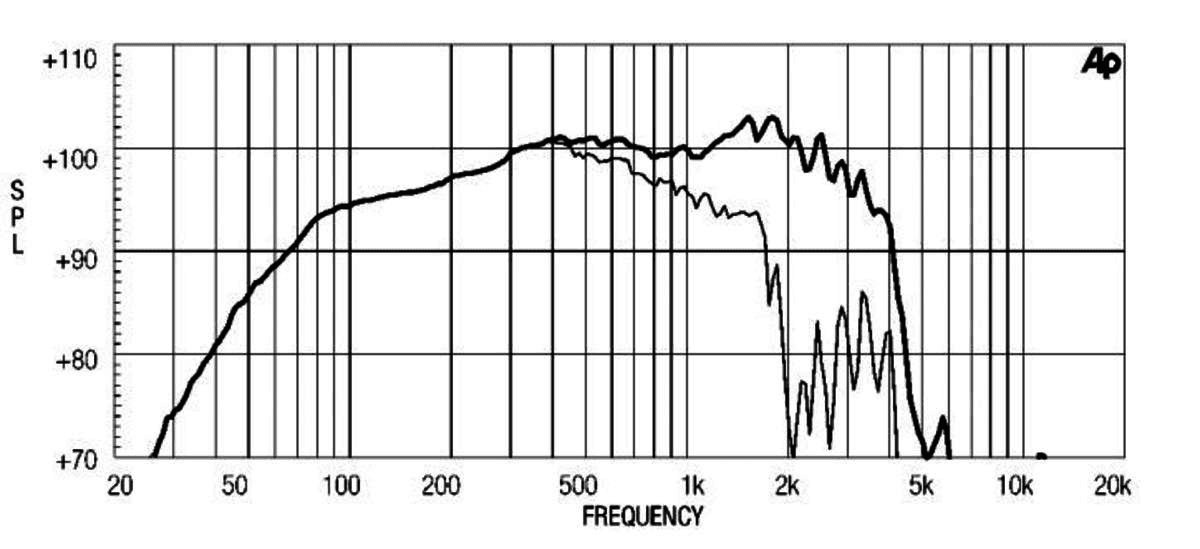

Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response
Frequency response
240 plotted pointsMedium confidence7,430 selected pixels of 7,430
T/S Parameters
Valid
Fs36Hz
Qts0.22
Qes0.23
Qms5.3
Vas206.0L
Re5.5Ω
Le1.61mH
BL23.8Tm
Sd850cm²
Mms101g
Xmax7.5mm
SPL98dB
Power500W
Power Nominal500W
Impedance8Ω
F Low40Hz
F High4100Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£266.78
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter387.0mm
Overall Depth177.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter370.0mm
