- Net volume
- 110L
- Tuning
- 36Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.
15-inch LF driver · 500 W
Eighteen Sound 15W930 8Ω
8 Ω · 50–3600 Hz
£193.05
SteadyLean Business · All 3 offers
- Fs
- 33Hz
- Xmax
- 7.5mm
- SPL
- 98dB
- Pe
- 500W
- BL
- 22.1T·m
- Vd
- 638cm³
- Qts
- 0.22
- Vas
- 240L

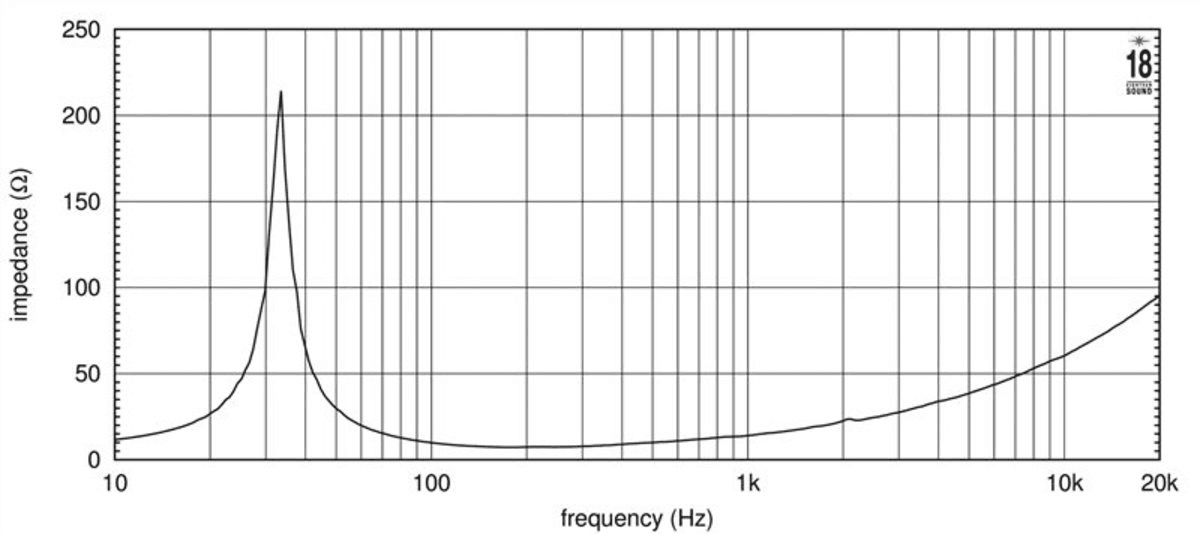

Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 1 trace
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

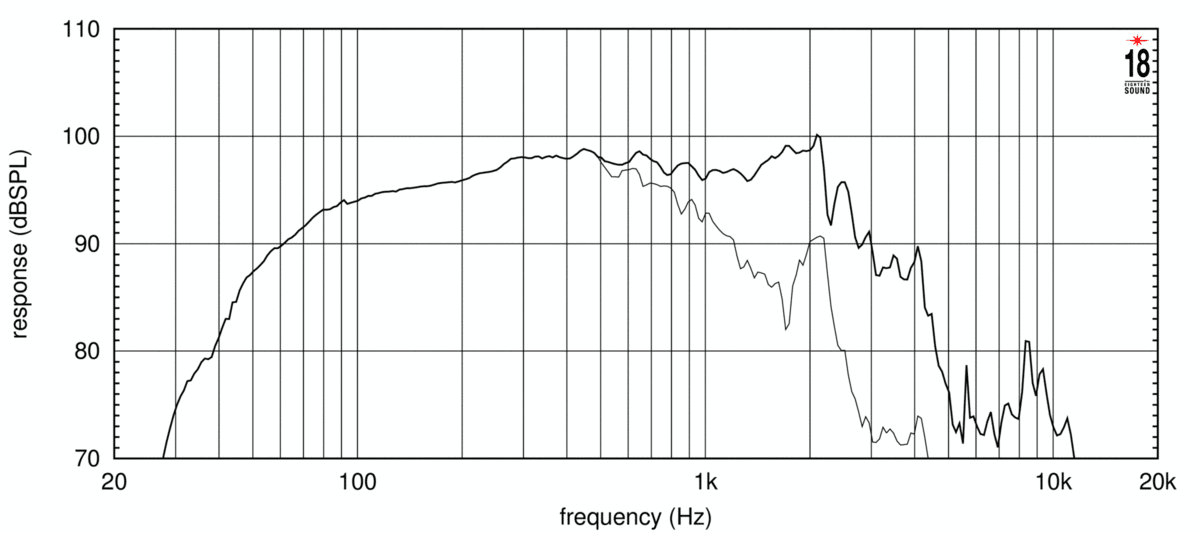

Frequency response
240 plotted pointsMedium confidence1,842 selected pixels of 2,179
Published graphs
Eighteen Sound 15W930 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 33 Hz, Qts 0.22, Vas 240 L, Xmax 7.5 mm, sensitivity 97.8 dB, plus 638 cm³ Vd and 143 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £193.05.
The published T/S values agree with each other
Thiele/Small
- Fs
- 33Hz
- Qts
- 0.22
- Qes
- 0.23
- Qms
- 8.8
- Vas
- 240L
- Re
- 5.5Ω
- Le
- 1.47mH
Motor and cone
- BL
- 22.1T·m
- Sd
- 850cm²
- Mms
- 97g
- Xmax
- 7.5mm
- Vd †
- 638cm³
Power and response
- Sensitivity †
- 97.8dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Range
- 50–3600Hz
- EBP †
- 143 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 360mm
- Bolt circle
- 371mm
- Depth
- 185mm
- Weight
- 8kg
Other published values
- Power Program
- 800
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 22.1T·m
- Fs
- 33Hz
- Le
- 1.47mH
- Re
- 5.5Ω
- Sd
- 850cm²
- Mms
- 97g
- Qes
- 0.23
- Qms
- 8.8
- Qts
- 0.22
- SPL
- 97.8dB
- Vas
- 240L
- Xmax
- 7.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 50Hz
- Nominal power
- 500W
- Power Program
- 800
- Calculated sensitivity †
- 97.8dB
- High limit
- 3600Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 8kg
- Diameter
- 393mm
- Depth
- 185mm
- Cutout
- 360mm
- Bolt circle
- 371mm
02
Designs
What Eighteen Sound suggests for the 15W930. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 15W930 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15W930. Clear differences are green when better and red when worse.
This driver15W930
Best price
£193.05
Fs
33 Hz
Qts
0.22
Vas
240 L
BL
22.1 T·m
Xmax
7.5 mm
Sensitivity
97.8 dB
Power
500 W
B&C15NDL76
£175.00 · 9% less, betterFs37 Hz +12%, worse
Qts0.22 –
Vas195 L −19%, better
BL22.5 T·m –
Xmax7 mm −7%
Sensitivity98.2 dB –
B&C15FW76
£181.02 · 6% less, betterFs40 Hz +21%, worse
Qts0.21 −5%
Vas138 L −43%, better
BL26.2 T·m +19%, better
Xmax7 mm −7%
Sensitivity98.1 dB –
B&C15PS76
£184.00 · 5% lessFs38 Hz +15%, worse
Qts0.26 +18%, worse
Vas164 L −32%, better
BL22.1 T·m –
Xmax7.5 mm –
Sensitivity97.1 dB −0.7
B&C15PL100
£205.14 · 6% more, worseFs37 Hz +12%, worse
Qts0.20 −9%
Vas154 L −36%, better
BL26.8 T·m +21%, better
Xmax7 mm −7%
Sensitivity97.7 dB –
RCFL15P400
£214.72 · 11% more, worseFs36 Hz +9%
Qts0.25 +14%, worse
Vas160 L −33%, better
BL24.8 T·m +12%, better
Xmax8 mm +7%
Sensitivity96.4 dB −1.4
Beyma15P80FE
£231.96 · 20% more, worseFs32 Hz −3%
Qts0.18 −18%, better
Vas305 L +27%, worse
BL22.1 T·m –
Xmax7.5 mm –
Sensitivity99.2 dB +1.4
B&C15NW76
£233.82 · 21% more, worseFs42 Hz +27%, worse
Qts0.22 –
Vas130 L −46%, better
BL25.5 T·m +15%, better
Xmax8 mm +7%
Sensitivity98.2 dB –
B&C15NW100
£255.00 · 32% more, worseFs33 Hz –
Qts0.22 –
Vas139 L −42%, better
BL28 T·m +27%, better
Xmax9 mm +20%, better
Sensitivity95.4 dB −2.4, worse
Eighteen Sound15ND930
£266.78 · 38% more, worseFs36 Hz +9%
Qts0.22 –
Vas206 L −14%, better
BL23.8 T·m +8%
Xmax7.5 mm –
Sensitivity98.2 dB –
Eighteen Sound15NMB1000
£285.89 · 48% more, worseFs46 Hz +39%, worse
Qts0.24 +9%
Vas124 L −48%, better
BL25.2 T·m +14%, better
Xmax6.5 mm −13%, worse
Sensitivity99 dB +1.2
CIARENDH15-4S
£289.95 · 50% more, worseFs28 Hz −15%, better
Qts0.25 +14%, worse
Vas220 L −8%
BL24.2 T·m +9%
Xmax11.5 mm +53%, better
Sensitivity94.7 dB −3.1, worse
RCFMB15N351
£297.00 · 54% more, worseFs42 Hz +27%, worse
Qts0.22 –
Vas191 L −20%, better
BL22.5 T·m –
Xmax6 mm −20%, worse
Sensitivity99.7 dB +1.9
Eighteen Sound15NLW9300
£315.00 · 63% more, worseFs39 Hz +18%, worse
Qts0.26 +18%, worse
Vas170 L −29%, better
BL24.4 T·m +10%, better
Xmax8 mm +7%
Sensitivity97.8 dB –
Beyma15P80ND
£326.51 · 69% more, worseFs39 Hz +18%, worse
Qts0.21 −5%
Vas184 L −23%, better
BL23.8 T·m +8%
Xmax7.5 mm –
Sensitivity99 dB +1.2
RCFLF15N401
£329.00 · 70% more, worseFs34 Hz +3%
Qts0.22 –
Vas160 L −33%, better
BL27.8 T·m +26%, better
Xmax9 mm +20%, better
Sensitivity96.4 dB −1.4
Precision DevicesPD.153C001
No current priceFs38 Hz +15%, worse
Qts0.22 –
Vas196 L −18%, better
BL24.2 T·m +9%
Xmax7.7 mm –
Sensitivity98.7 dB +0.9
CelestionCF1540F
No current priceFs29 Hz −12%, better
Qts0.23 +7%
Vas227.9 L −5%
BL23.1 T·m +5%
Xmax8.6 mm +15%, better
Sensitivity95.7 dB −2.1, worse
Precision DevicesPD.153ER/2
No current priceFs40 Hz +21%, worse
Qts0.21 −5%
Vas218.8 L −9%
BL22.4 T·m –
Xmax5.7 mm −24%, worse
Sensitivity100.1 dB +2.3, better
Precision DevicesPD.153C002
No current priceFs38 Hz +15%, worse
Qts0.25 +13%, worse
Vas263 L +10%
BL18.9 T·m −14%, worse
Xmax6.8 mm −10%, worse
Sensitivity99.4 dB +1.6
No photo
PHL Audio5011MNDU
No current priceFs38 Hz +15%, worse
Qts0.26 +18%, worse
Vas169 L −30%, better
BL23.7 T·m +7%
Xmax7.5 mm –
Sensitivity97.2 dB −0.6
Oberton15NB451
No current priceFs40 Hz +20%, worse
Qts0.26 +17%, worse
Vas145.2 L −39%, better
BL22.9 T·m +3%
Xmax7 mm −7%
Sensitivity97.4 dB –
PeerlessFSL-1530R01-08
No current priceFs41 Hz +24%, worse
Qts0.24 +9%
Vas180 L −25%, better
BL21.8 T·m –
Xmax4.7 mm −38%, worse
Sensitivity99 dB +1.2
Oberton15XL600
No current priceFs41 Hz +24%, worse
Qts0.22 –
Vas150.3 L −37%, better
BL24.7 T·m +12%, better
Xmax5.3 mm −30%, worse
Sensitivity98.7 dB +0.9
Oberton15XL601
No current priceFs41 Hz +24%, worse
Qts0.22 –
Vas150.3 L −37%, better
BL24.7 T·m +12%, better
Xmax5.3 mm −30%, worse
Sensitivity98.7 dB +0.9
CelestionFTR15-4080F
No current priceFs38 Hz +15%, worse
Qts0.25 +13%, worse
Vas163.1 L −32%, better
BL23.5 T·m +7%
Xmax8.5 mm +13%, better
Sensitivity97.2 dB −0.6
Oberton15NB500
No current priceFs43 Hz +30%, worse
Qts0.26 +16%, worse
Vas121.5 L −49%, better
BL24.3 T·m +10%
Xmax7.3 mm −3%
Sensitivity97.7 dB –
Oberton15PD600
No current priceFs38 Hz +16%, worse
Qts0.23 +4%
Vas133.3 L −44%, better
BL28.7 T·m +30%, better
Xmax8.5 mm +13%, better
Sensitivity97.1 dB −0.7
Oberton15PD601
No current priceFs38 Hz +16%, worse
Qts0.23 +4%
Vas133.3 L −44%, better
BL28.7 T·m +30%, better
Xmax8.5 mm +13%, better
Sensitivity97.1 dB −0.7
Oberton15B500
No current priceFs38 Hz +16%, worse
Qts0.27 +22%, worse
Vas145.8 L −39%, better
BL22.9 T·m +4%
Xmax7.3 mm −3%
Sensitivity96.8 dB −1
BMS15S430V2
No current priceFs40 Hz +21%, worse
Qts0.26 +18%, worse
Vas135 L −44%, better
BL25.0 T·m +13%, better
Xmax7.5 mm –
Sensitivity97 dB −0.8
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Lean Business | £193.05, the lowest price | Stock not listed | Visit shop at Lean Business | |
Lean Audio | £210.00 | 8.8% above the lowest price | Back order | Visit shop at Lean Audio |
Best price over time
Tracked since 1 Apr
