LF Driver15FW series
B&C
B&C 15FW76
B&C 15FW76 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 40Hz, Qts 0.21, Vas 138L, Xmax 7mm, sensitivity 98.1dB, plus 599cm³ Vd and 182 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £181.02.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.1dB
100.0dBmanufacturer; using T/S-derived value (1.9dB delta).
EBP
182
Vented alignment
Vd
599cm³

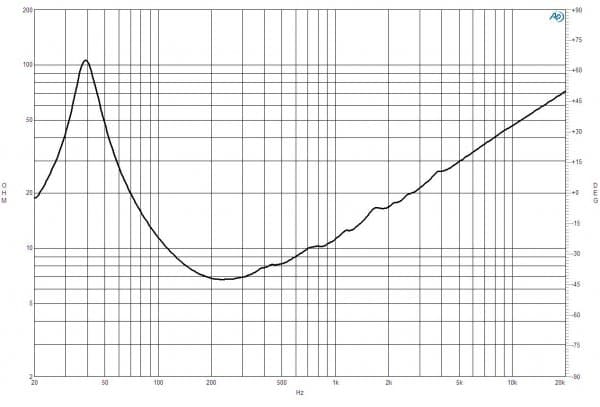

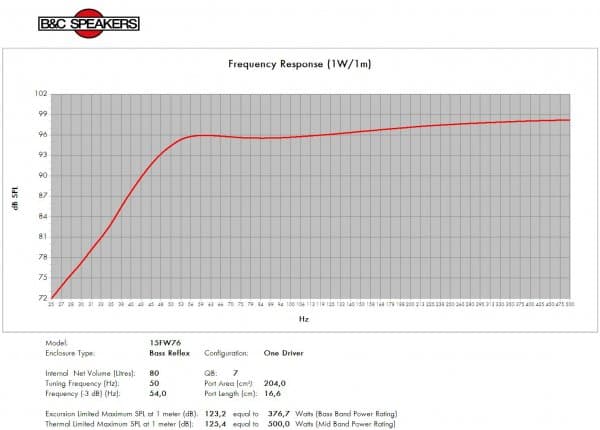

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs40Hz
Qts0.21
Qes0.22
Qms5.1
Vas138.0L
Re5.1Ω
Le1.40mH
BL26.2Tm
Sd855cm²
Mms117g
Xmax7.0mm
SPL98dB
Power500W
Power Nominal500W
Impedance8Ω
Min Impedance6.4Ω
F Low40Hz
F High2000Hz
Voice Coil76mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£181.02
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.3kg
Diameter393.0mm
Overall Depth177.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl26.2 Tm
Fs40 Hz
Le1.4 mH
Re5.1 Ω
Sd855 cm² (132.5 in²)
Ebp182 Hz
Mms117 g
Qes0.22
Qms5.1
Qts0.21
Vas138 dm³ (4.9 ft³)
η03.9 %
ConeRCK15FW768
Xmax7 mm
Xvar8 mm
SpiderDouble Silicone
Cone ShapeExponential
Pole DesignT-Pole
Winding Depth19 mm (0.75 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.43 in)
Recommended Tuning50 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure80 dm³ (2.82 ft³)
Woofer Cone TreatmentWP Waterproof Front Side
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness14 mm (0.55 in)
Air Volume Occupied By Driver5.5 dm³ (0.19 ft³)
