Overview
LF Driver15NW series
B&C
B&C 15NW100
B&C 15NW100 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 33Hz, Qts 0.22, Vas 139L, Xmax 9mm, sensitivity 95.4dB, plus 770cm³ Vd and 143 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £259.00.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.4dB
97.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
143
Vented alignment
Vd
770cm³

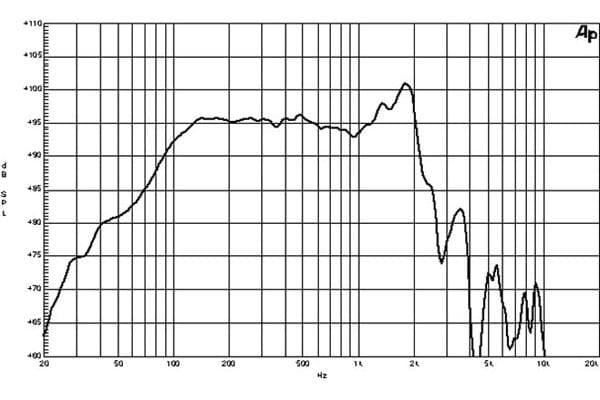

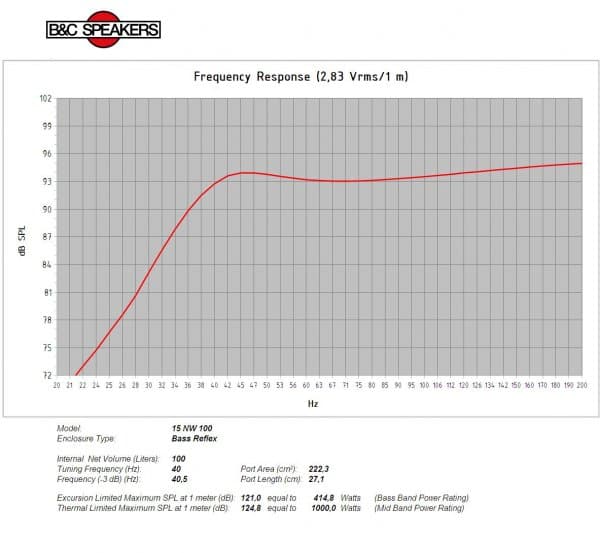

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs33Hz
Qts0.22
Qes0.23
Qms4.3
Vas139.0L
Re5.1Ω
Le1.90mH
BL28.0Tm
Sd855cm²
Mms173g
Xmax9.0mm
SPL95dB
Power1000W
Power Nominal1000W
Impedance8Ω
Min Impedance6.2Ω
F Low35Hz
F High1500Hz
Voice Coil100mm
Flux Density1.20T
Pricing & availability
Price definitionsPrice movement
Other offers
5 vendorsbluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£259.00
inc VAT
2 in stock
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£269.52
inc VAT
In stock
jpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£269.52
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£269.52
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£269.52
inc VAT
In stock
Best current price
Updated 11 Sept 2026
bluearan
£259.00
Avg £266.01£7.01 below avg (-2.6%)
inc VAT·4 in stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.7kg
Diameter393.0mm
Overall Depth181.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl28 Tm
Fs33 Hz
Le1.9 mH
Re5.1 Ω
Sd855 cm² (132.5 in²)
Ebp143 Hz
Mms173 g
Qes0.23
Qms4.3
Qts0.22
Vas139 dm³ (4.9 ft³)
η02.1 %
ConeRCK15NW1008
Xmax9 mm
Xvar11 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth25 mm (1 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth12 mm (0.5 in)
Recommended Tuning40 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure100 dm³ (3.53 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.62 in)
Air Volume Occupied By Driver6 dm³ (0.21 ft³)
