LF Driver15NDL series
B&C
B&C 15NDL76
B&C 15NDL76 is a 15" 8 ohm LF driver rated at 500W RMS. The validated T/S data includes Fs 37Hz, Qts 0.22, Vas 195L, Xmax 7mm, sensitivity 98.2dB, plus 599cm³ Vd and 154 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £184.99.
Size
15"
Impedance
8Ω
RMS Power
500W
Sensitivity
98.2dB
99.5dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
154
Vented alignment
Vd
599cm³

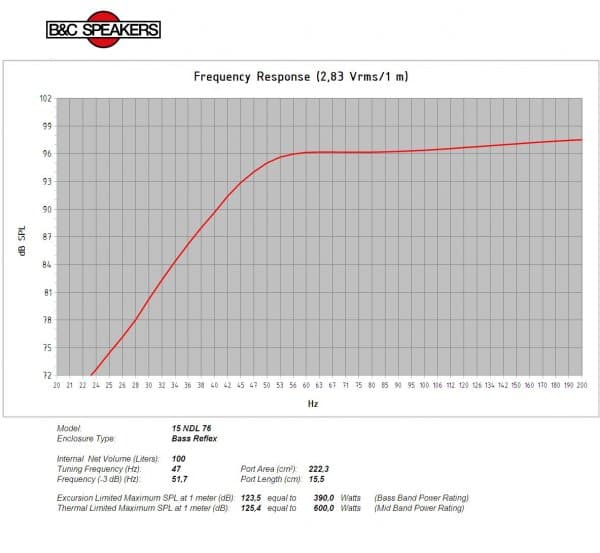

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs37Hz
Qts0.22
Qes0.24
Qms4.5
Vas195.0L
Re5.3Ω
Le1.50mH
BL22.5Tm
Sd855cm²
Mms96g
Xmax7.0mm
SPL98dB
Power500W
Power Nominal500W
Impedance8Ω
Min Impedance6.7Ω
F Low40Hz
F High2000Hz
Voice Coil76mm
Flux Density1.25T
Pricing & availability
Price definitionsPrice movement
Best current price
£184.99
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.7kg
Diameter393.0mm
Overall Depth171.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl22.5 Tm
Fs37 Hz
Le1.5 mH
Re5.3 Ω
Sd855 cm² (132.5 in²)
Ebp154 Hz
Mms96 g
Qes0.24
Qms4.5
Qts0.22
Vas195 dm³ (6.8 ft³)
η04.1 %
ConeRCK15NDL768
Xmax7 mm
Xvar9 mm
SpiderSingle
Cone ShapeExponential
Pole DesignStraight Pole
Winding Depth18 mm (0.68 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialNeodymium Inside Slug
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth11 mm (0.4 in)
Recommended Tuning47 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure100 dm³ (3.53 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness16 mm (0.62 in)
Air Volume Occupied By Driver3.5 dm³ (0.12 ft³)
