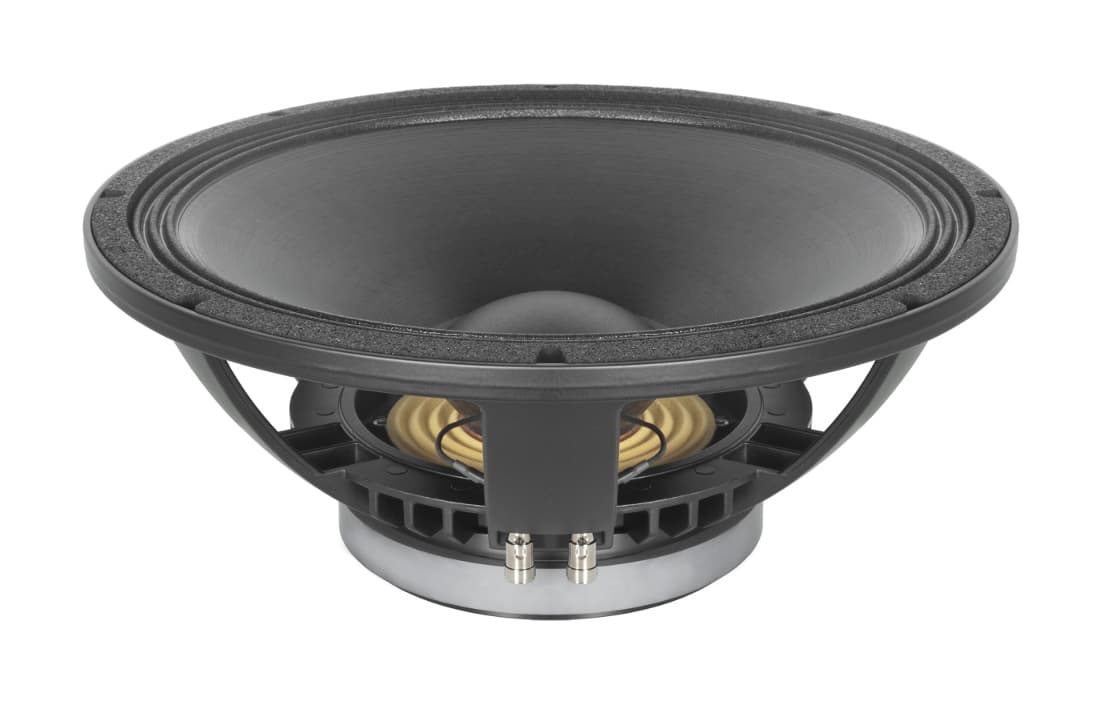

15-inch LF driver · 15PLB series · 76 mm voice coil · 400 W
B&C 15PLB76 8Ω
8 Ω · 40–2000 Hz
£191.58
SteadyJP Leisure · In stock · All 9 offers
- Fs
- 42Hz
- Xmax
- 5mm
- SPL
- 99dB
- Pe
- 400W
- BL
- 22.1T·m
- Vd
- 428cm³
- Qts
- 0.25
- Vas
- 164L

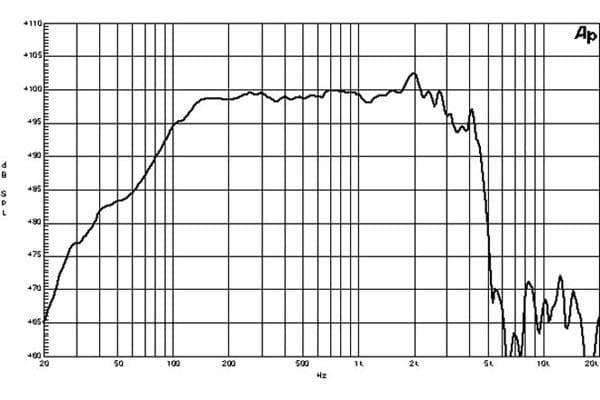

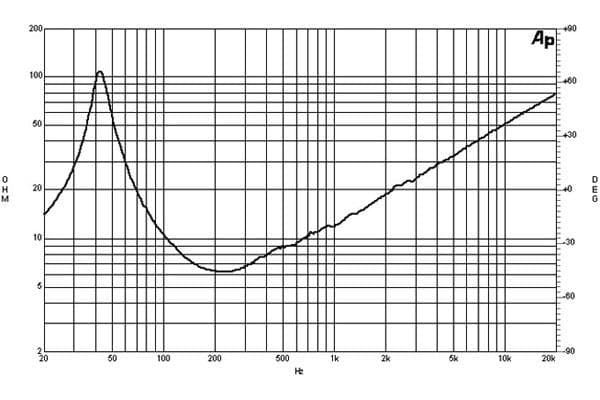

Published graphs
B&C 15PLB76 is a 15-inch 8 ohm LF driver rated at 400 W RMS. The validated T/S data includes Fs 42 Hz, Qts 0.25, Vas 164 L, Xmax 5 mm, sensitivity 98.7 dB, plus 428 cm³ Vd and 162 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £181.65.
The published T/S values agree with each other
Thiele/Small
- Fs
- 42Hz
- Qts
- 0.25
- Qes
- 0.26
- Qms
- 5.9
- Vas
- 164L
- Re
- 5Ω
- Le
- 1.30mH
Motor and cone
- BL
- 22.1T·m
- Sd
- 855cm²
- Mms
- 88g
- Xmax
- 5mm
- Vd †
- 428cm³
- Voice coil
- 76mm
- Flux density
- 1.15T
Power and response
- Sensitivity †
- 98.7dB
- Manufacturer sensitivity
- 100dB
- Power
- 400W
- Nominal power
- 400W
- Impedance
- 8Ω
- Min. impedance
- 6.2Ω
- Range
- 40–2000Hz
- EBP †
- 162 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 169mm
- Weight
- 8.6kg
Sensitivity shows 98.7 dB, calculated from the T/S values. B&C publishes 100.0 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else B&C lists
LF
- BL
- 22.1T·m
- Fs
- 42Hz
- Le
- 1.30mH
- Re
- 5Ω
- Sd
- 855cm²
- Mms
- 88g
- Qes
- 0.26
- Qms
- 5.9
- Qts
- 0.25
- SPL
- 98.7dB
- Vas
- 164L
- Xmax
- 5mm
- Power
- 400W
- Impedance
- 8Ω
- Flux density
- 1.15T
- Sensitivity
- 100dB
- Low limit
- 40Hz
- Nominal power
- 400W
- Calculated sensitivity †
- 98.7dB
- High limit
- 2000Hz
- Manufacturer sensitivity
- 100dB
- Min. impedance
- 6.2Ω
- Voice coil
- 76mm
- Weight
- 8.6kg
- Diameter
- 393mm
- Depth
- 169mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Bl
- 22.1 Tm
- Fs
- 42 Hz
- Le
- 1.3 mH
- Re
- 5 Ω
- Sd
- 855 cm² (132.5 in²)
- Ebp
- 162 Hz
- Mms
- 88 g
- Qes
- 0.26
- Qms
- 5.9
- Qts
- 0.25
- Vas
- 164 dm³ (5.8 ft³)
- Η0
- 4.5 %
- Cone
- RCK15PLB768
- Xmax
- 5 mm
- Xvar
- 8 mm
- Depth
- 169 mm (6.65 in)
- Spider
- Single
- Cone shape
- Exponential
- Net weight
- 8.6 kg (18.96 lb)
- Pole design
- T-Pole
- Sensitivity
- 100 dB
- Flux density
- 1.15 T
- Shipping box
- 425x425x224 mm (16.73x16.73x8.82 in)
- Winding depth
- 16 mm (0.62 in)
- Shipping units
- 1 pcs
- Surround shape
- Triple Roll
- Former material
- Glass Fibre
- Frequency range
- 40 Hz - 2000 Hz
- Magnet material
- Ferrite
- Shipping weight
- 9.9 kg (21.83 lb)
- Nominal diameter
- 380 mm (15 in)
- Overall diameter
- 393 mm (15.5 in)
- Winding material
- Copper
- Minimum impedance
- 6.2 Ω
- Nominal impedance
- 8 Ω
- Magnetic gap depth
- 11 mm (0.4 in)
- Recommended tuning
- 50 Hz
- Voice coil diameter
- 76 mm (3 in)
- Bolt circle diameter
- 374 mm (14.7 in)
- Recommended enclosure
- 100 dm³ (3.53 ft³)
- Woofer cone treatment
- TWP Waterproof Both Sides
- Baffle cutout diameter
- 354 mm (13.9 in)
- Nominal power handling
- 400 W
- Continuous power handling
- 800 W
- Flange and gasket thickness
- 16 mm (0.62 in)
- Air volume occupied by driver
- 5.2 dm³ (0.18 ft³)
02
Designs
Cabinets for the 15PLB76: three designs and a suggested box from B&C.
All 15PLB76 designsHow we find designsB&C’s designs
From the maker, with plans to download
B&C design · archived
F152A
15"/1.4" 800W Full Range Enclosure - 15" Woofer + 1.4" HF Driver on 80°x60° CD Horn
- Drivers
- 15PLB76, 8 Ω
- Power
- 800 W
B&C design · archived
F2152A
15"/1.4" 1600W Full Range Enclosure - 2 x 15" Woofer + 1.4" HF Driver on 80°x60° CD Horn
- Drivers
- 15PLB76, 8 Ω
- Power
- 1,600 W

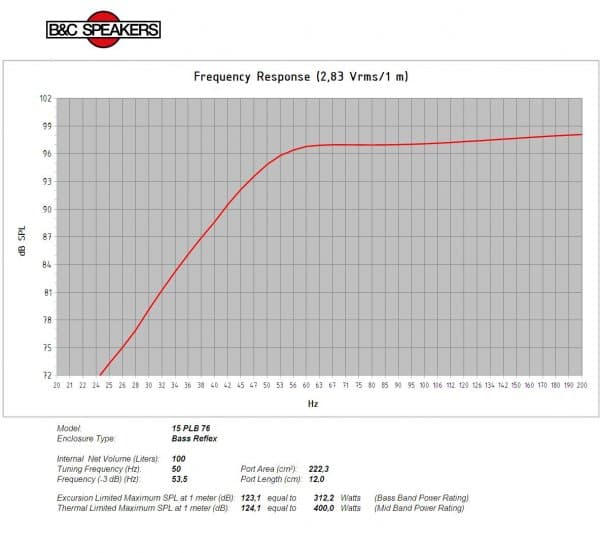

B&C’s suggested box
From B&C’s 15PLB76 page
- Net volume
- 100L
- Tuning
- 50Hz
B&C gives the volume and tuning; the port is sized for the driver when you open it.
