15-inch LF driver · 15XL series · 100 mm voice coil

Oberton 15XL600 8Ω

Name: Oberton 15XL600 8 Ohm
Brand: Oberton
SKU: 15XL600

8 Ω · 50–3000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 41Hz
Xmax: 5.3mm
SPL: 99dB
Pe: –
BL: 24.7T·m
Vd: 436cm³
Qts: 0.22
Vas: 150L

See all 27 specs

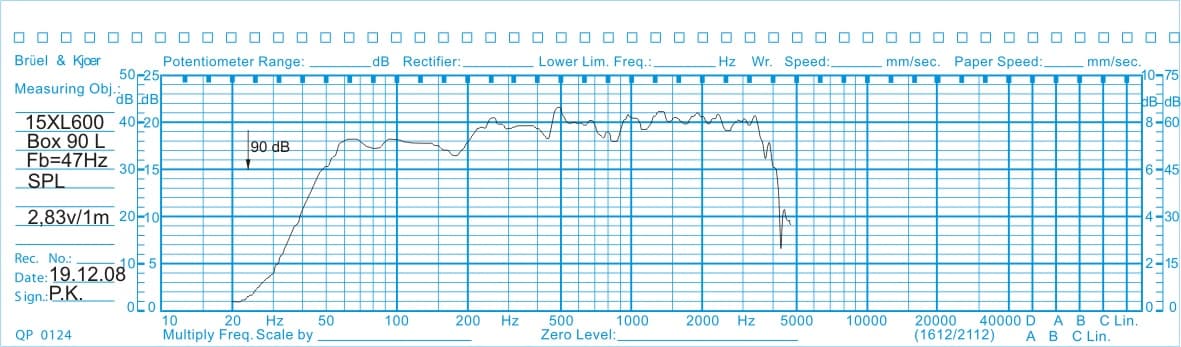

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 15XL600 is a 15-inch 8 ohm LF driver. The validated T/S data includes Fs 41 Hz, Qts 0.22, Vas 150.3 L, Xmax 5.3 mm, sensitivity 98.7 dB, plus 436 cm³ Vd and 186 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 41Hz
Qts: 0.22
Qes: 0.22
Qms: 10.9
Vas: 150.3L
Re: 5.4Ω
Le: 1.09mH

Motor and cone

BL: 24.7T·m
Sd: 830cm²
Mms: 97g
Xmax: 5.3mm
Vd †: 436cm³
Voice coil: 100mm
Flux density: 1.25T

Power and response

Sensitivity †: 98.7dB
Manufacturer sensitivity: 200dB
Impedance: 8Ω
Min. impedance: 6.7Ω
Range: 50–3000Hz
EBP †: 186 · Leans vented

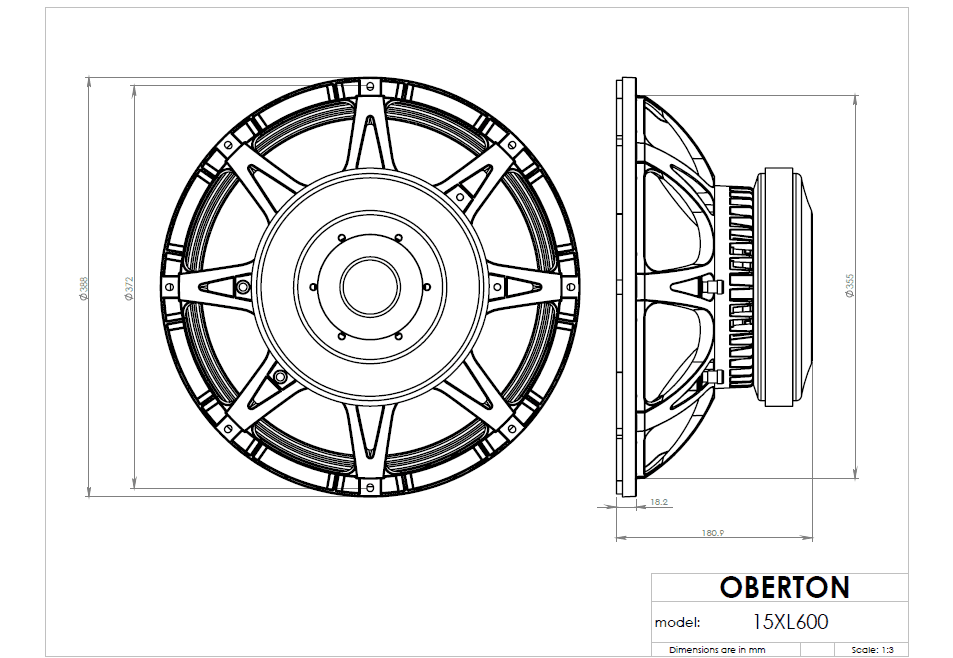

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 372mm
Depth: 181mm
Weight: 10.8kg

Other published values

Cms: 0.16mm/N
Power Program: 1200

Sensitivity shows 98.7 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 101.3 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 24.7T·m
Fs: 41Hz
Le: 1.09mH
Re: 5.4Ω
Sd: 830cm²
Cms: 0.16mm/N
Mms: 97g
Qes: 0.22
Qms: 10.9
Qts: 0.22
SPL: 98.7dB
Vas: 150.3L
Xmax: 5.3mm
Impedance: 8Ω
Flux density: 1.25T
Sensitivity: 200dB
Low limit: 50Hz
Power Program: 1200
Calculated sensitivity †: 98.7dB
High limit: 3000Hz
Manufacturer sensitivity: 200dB
Min. impedance: 6.7Ω
Voice coil: 100mm
Weight: 10.8kg
Diameter: 388mm
Depth: 181mm
Cutout: 355mm
Bolt circle: 372mm

Compare

Same-size drivers, compared with the 15XL600. Clear differences are green when better and red when worse.

This driver15XL600

Best price

–

41 Hz

Qts

0.22

Vas

150.3 L

24.7 T·m

Xmax

5.3 mm

Sensitivity

98.7 dB

Power

–

Dayton AudioPA380-8

£104.71

Fs32 Hz −23%

Qts0.27 +25%

Vas175 L +16%

BL25.8 T·m +4%

Xmax5 mm −5%

Sensitivity95.1 dB −3.6

B&C15NDL76

£175.00

Fs37 Hz −10%

Qts0.22 –

Vas195 L +30%

BL22.5 T·m −9%

Xmax7 mm +33%

Sensitivity98.2 dB −0.5

B&C15FW76

£181.02

Fs40 Hz –

Qts0.21 –

Vas138 L −8%

BL26.2 T·m +6%

Xmax7 mm +33%

Sensitivity98.1 dB −0.6

B&C15PLB76

£191.58

Fs42 Hz –

Qts0.25 +16%

Vas164 L +9%

BL22.1 T·m −11%

Xmax5 mm −5%

Sensitivity98.7 dB –

B&C15PL100

£205.14

Fs37 Hz −10%

Qts0.20 −7%

Vas154 L –

BL26.8 T·m +9%

Xmax7 mm +33%

Sensitivity97.7 dB −1

BMS15S320

£208.72

Fs41 Hz –

Qts0.28 +30%

Vas154 L –

BL23.3 T·m −6%

Xmax4.5 mm −14%

Sensitivity97.7 dB −1

RCFL15P400

£214.72

Fs36 Hz −12%

Qts0.25 +16%

Vas160 L +6%

BL24.8 T·m –

Xmax8 mm +52%

Sensitivity96.4 dB −2.3

B&C15NW76

£233.82

Fs42 Hz –

Qts0.22 –

Vas130 L −14%

BL25.5 T·m +3%

Xmax8 mm +52%

Sensitivity98.2 dB −0.5

RCFLF15G401

£238.26

Fs36 Hz −12%

Qts0.26 +20%

Vas150 L –

BL24.6 T·m –

Xmax9 mm +71%

Sensitivity96.2 dB −2.5

B&C15NW100

£255.00

Fs33 Hz −19%

Qts0.22 –

Vas139 L −8%

BL28 T·m +13%

Xmax9 mm +71%

Sensitivity95.4 dB −3.3

Eighteen Sound15ND930

£266.78

Fs36 Hz −12%

Qts0.22 –

Vas206 L +37%

BL23.8 T·m −4%

Xmax7.5 mm +43%

Sensitivity98.2 dB −0.5

Eighteen Sound15NMB1000

£285.89

Fs46 Hz +12%

Qts0.24 +11%

Vas124 L −18%

BL25.2 T·m –

Xmax6.5 mm +24%

Sensitivity99 dB –

RCFMB15N351

£297.00

Fs42 Hz –

Qts0.22 –

Vas191 L +27%

BL22.5 T·m −9%

Xmax6 mm +14%

Sensitivity99.7 dB +1

Beyma14MLEX1000ND

£297.01

Fs47 Hz +15%

Qts0.22 –

Vas75 L −50%

BL26.5 T·m +7%

Xmax11 mm +110%

Sensitivity97.3 dB −1.4

Beyma15P80ND

£326.51

Fs39 Hz −5%

Qts0.21 –

Vas184 L +22%

BL23.8 T·m −4%

Xmax7.5 mm +43%

Sensitivity99 dB –

Beyma15MLEX1000ND

£328.81

Fs38 Hz −7%

Qts0.21 –

Vas167 L +11%

BL26 T·m +5%

Xmax11 mm +110%

Sensitivity98.4 dB –

RCFLF15N401

£329.00

Fs34 Hz −17%

Qts0.22 –

Vas160 L +6%

BL27.8 T·m +13%

Xmax9 mm +71%

Sensitivity96.4 dB −2.3

Oberton15XL601

No current price

Fs41 Hz –

Qts0.22 –

Vas150.3 L –

BL24.7 T·m –

Xmax5.3 mm –

Sensitivity98.7 dB –

Precision DevicesPD.153ER/2

No current price

Fs40 Hz –

Qts0.21 –

Vas218.8 L +46%

BL22.4 T·m −9%

Xmax5.7 mm +9%

Sensitivity100.1 dB +1.4

Oberton15MB601

No current price

Fs41 Hz –

Qts0.18 −14%

Vas139.0 L −8%

BL27.1 T·m +10%

Xmax5.5 mm +5%

Sensitivity98.9 dB –

Oberton15NMB600

No current price

Fs43 Hz +6%

Qts0.17 −19%

Vas145.2 L −3%

BL27.4 T·m +11%

Xmax5.3 mm –

Sensitivity100.2 dB +1.5

Oberton15NMB601

No current price

Fs43 Hz +6%

Qts0.17 −19%

Vas145.2 L −3%

BL27.4 T·m +11%

Xmax5.3 mm –

Sensitivity100.2 dB +1.5

Precision DevicesPD.153C001

No current price

Fs38 Hz −7%

Qts0.22 +3%

Vas196 L +30%

BL24.2 T·m –

Xmax7.7 mm +47%

Sensitivity98.7 dB –

PeerlessFSL-1530R01-08

No current price

Fs41 Hz –

Qts0.24 +11%

Vas180 L +20%

BL21.8 T·m −12%

Xmax4.7 mm −11%

Sensitivity99 dB –

Precision DevicesPD.155NR1

No current price

Fs37 Hz −10%

Qts0.23 +6%

Vas140 L −7%

BL28.6 T·m +16%

Xmax12 mm +129%

Sensitivity96.8 dB −1.9

Oberton15PD600

No current price

Fs38 Hz −7%

Qts0.23 +6%

Vas133.3 L −11%

BL28.7 T·m +16%

Xmax8.5 mm +62%

Sensitivity97.1 dB −1.6

Oberton15PD601

No current price

Fs38 Hz −7%

Qts0.23 +6%

Vas133.3 L −11%

BL28.7 T·m +16%

Xmax8.5 mm +62%

Sensitivity97.1 dB −1.6

BMS15N820

No current price

Fs39 Hz −4%

Qts0.26 +20%

Vas159 L +6%

BL24.2 T·m –

Xmax4.5 mm −14%

Sensitivity97.5 dB −1.2

No photo

PHL Audio6031M

No current price

Fs39 Hz −5%

Qts0.23 +6%

Vas124 L −18%

BL29 T·m +17%

Xmax8.5 mm +62%

Sensitivity96.7 dB −2

RCFCX15N351

No current price

Fs55 Hz +34%

Qts0.26 +20%

Vas110 L −27%

BL23.5 T·m −5%

Xmax6 mm +14%

Sensitivity100.3 dB +1.6
