LF DriverPD series
Precision Devices

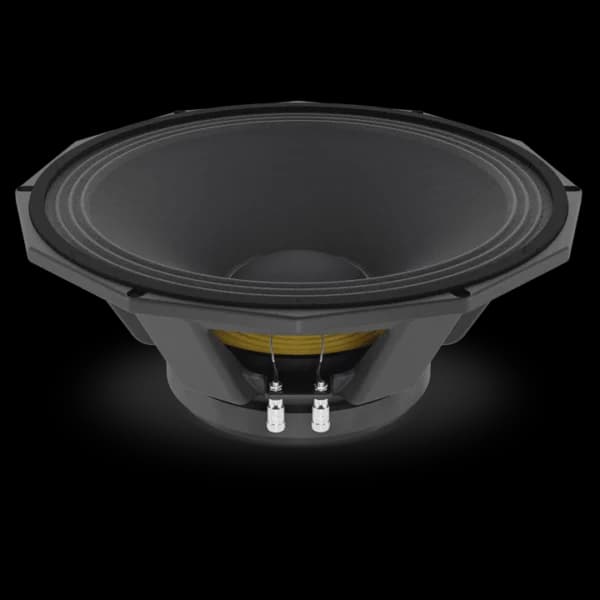

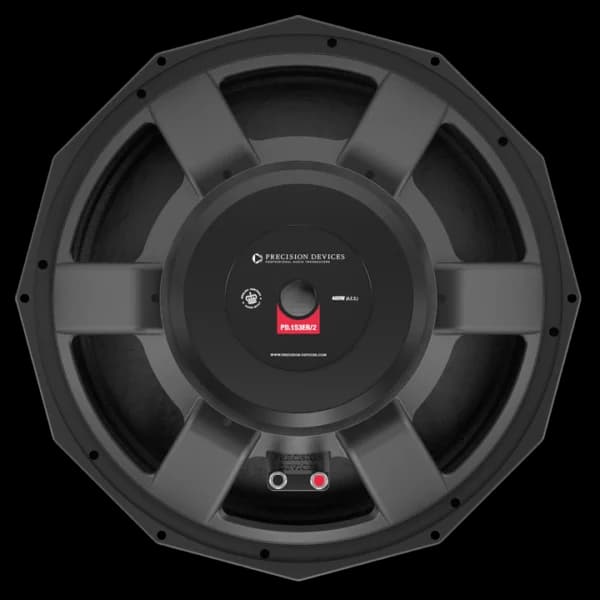

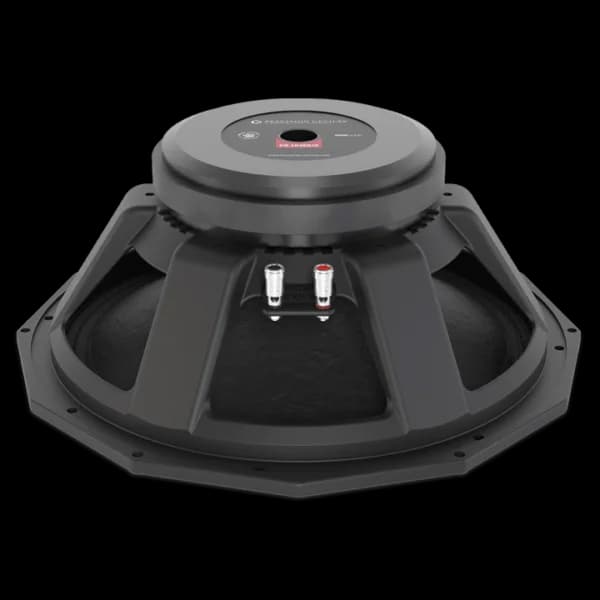

Precision Devices PD.153ER/2
Precision Devices PD.153ER/2 is a 15" 8 ohm LF driver rated at 400W RMS. The validated T/S data includes Fs 40Hz, Qts 0.21, Vas 218.8L, Xmax 5.7mm, sensitivity 100.1dB, plus 488cm³ Vd and 182 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
400W
Sensitivity
100.1dB
EBP
182
Vented alignment
Vd
488cm³
T/S Parameters
Valid
Fs40Hz
Qts0.21
Qes0.22
Qms8.7
Vas218.8L
Re5.9Ω
Le0.48mH
BL22.4Tm
Sd855cm²
Mms74g
Xmax5.7mm
SPL100dB
Power400W
Impedance8Ω
F Low40Hz
F High4500Hz
Voice Coil76mm
Flux Density1.35T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight10.5kg
Diameter408.3mm
Overall Depth148.7mm
Cutout Diameter356.0mm
Bolt Circle Diameter395.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Precision Devices
PD.153ER/2
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
86%
Similarity
£261.07
RCF
MB15N351
15"
Xmax6mm+5%
Qts0.22+5%
BL22.5Tm0%
Vas191L-13%
Qes0.24+9%
80%
Similarity
Oberton
15XL600
15"
Xmax5.3mm-8%
Qts0.22+3%
BL24.7Tm+10%
Vas150.3L-31%
Qes0.220%
80%
Similarity
Oberton
15XL601
15"
Xmax5.3mm-8%
Qts0.22+3%
BL24.7Tm+10%
Vas150.3L-31%
Qes0.220%
77%
Similarity
£184.99
B&C
15NDL76
15"
Xmax7mm+23%
Qts0.22+5%
BL22.5Tm0%
Vas195L-11%
Qes0.24+9%
69%
Similarity
£181.02
B&C
15FW76
15"
Xmax7mm+23%
Qts0.210%
BL26.2Tm+17%
Vas138L-37%
Qes0.220%
68%
Similarity
Peerless
FSL-1530R01-08
15"
Xmax4.7mm-18%
Qts0.24+14%
BL21.8Tm-3%
Vas180L-18%
Qes0.25+15%
65%
Similarity
£191.58
B&C
15PLB76
15"
Xmax5mm-12%
Qts0.25+19%
BL22.1Tm-2%
Vas164L-25%
Qes0.26+18%
64%
Similarity
Oberton
15MB601
15"
Xmax5.5mm-4%
Qts0.18-12%
BL27.1Tm+21%
Vas139L-36%
Qes0.19-14%
61%
Similarity
£285.89
Eighteen Sound
15NMB1000
15"
Xmax6.5mm+14%
Qts0.24+14%
BL25.2Tm+12%
Vas124L-43%
Qes0.24+9%
57%
Similarity
BMS
15S420
15"
Xmax5mm-12%
Qts0.25+19%
BL25.5Tm+14%
Vas152L-31%
Qes0.26+18%
56%
Similarity
Oberton
15NMB600
15"
Xmax5.3mm-8%
Qts0.17-17%
BL27.4Tm+22%
Vas145.2L-34%
Qes0.18-19%

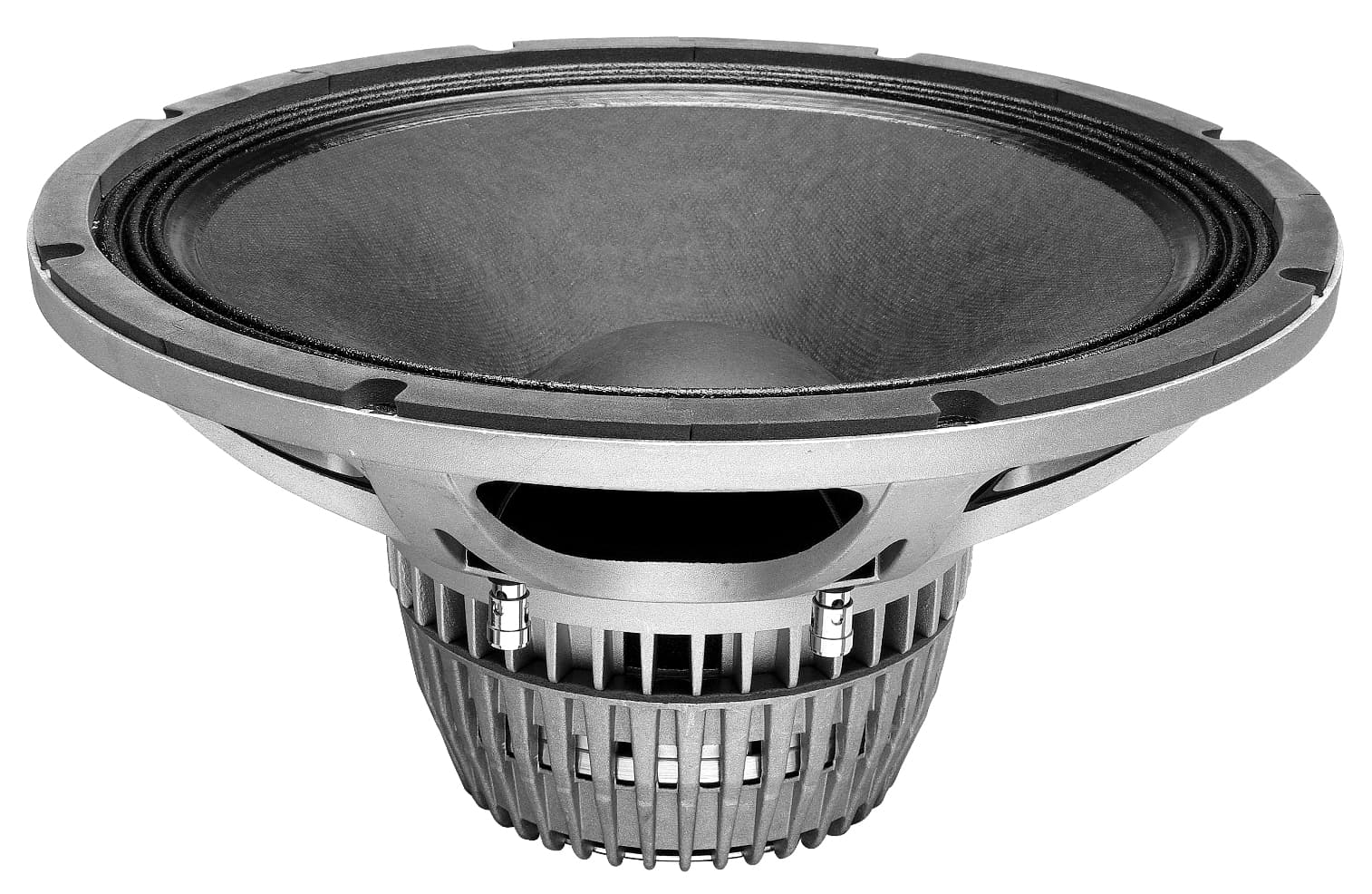

56%
