LF DriverNTR15 series
Celestion

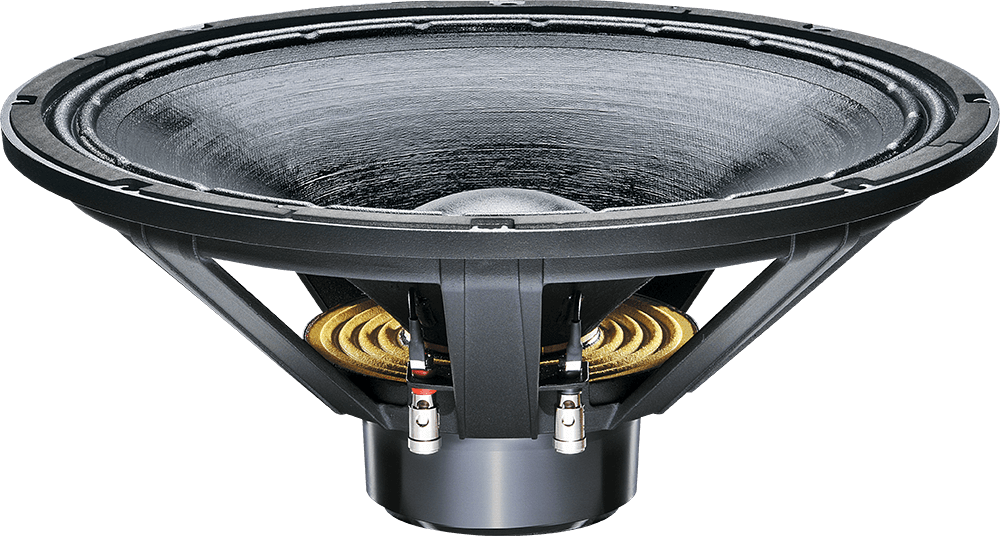

Celestion NTR15-3018E
Celestion NTR15-3018E is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 35Hz, Qts 0.28, Vas 207.3L, Xmax 5mm, sensitivity 96.7dB, plus 428cm³ Vd and 116 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £210.00.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
96.7dB
98.0dBmanufacturer; using T/S-derived value (1.3dB delta).
EBP
116
Vented alignment
Vd
428cm³

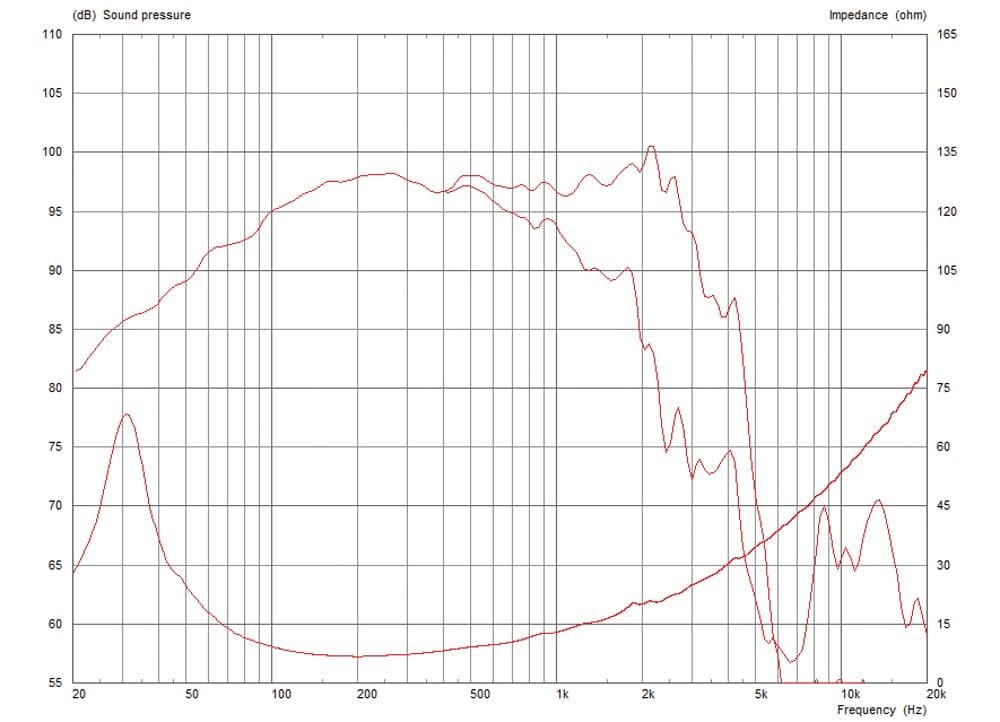

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence198 selected pixels of 369
T/S Parameters
Valid
Fs35Hz
Qts0.28
Qes0.30
Qms4.9
Vas207.3L
Re5.8Ω
Le1.18mH
BL21.1Tm
Sd855cm²
Mms104g
Xmax5.0mm
SPL97dB
Power450W
Impedance8Ω
Voice Coil75mm
Pricing & availability
Price definitionsPrice movement
Best current price
£210.00
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight4.0kg
Diameter386.0mm
Overall Depth162.0mm
Cutout Diameter351.0mm
Bolt Circle Diameter373.0mm
