LF DriverFTR15 series
Celestion

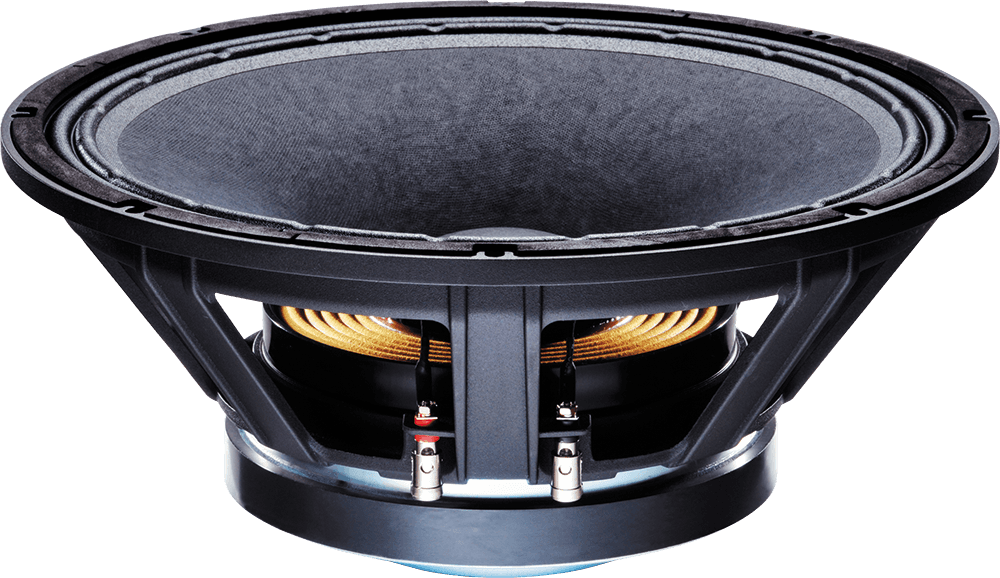

Celestion FTR15-4080FD
Celestion FTR15-4080FD is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 35Hz, Qts 0.28, Vas 164.3L, Xmax 8.5mm, sensitivity 95.9dB, plus 727cm³ Vd and 119 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.9dB
97.0dBmanufacturer; using T/S-derived value (1.1dB delta).
EBP
119
Vented alignment
Vd
727cm³

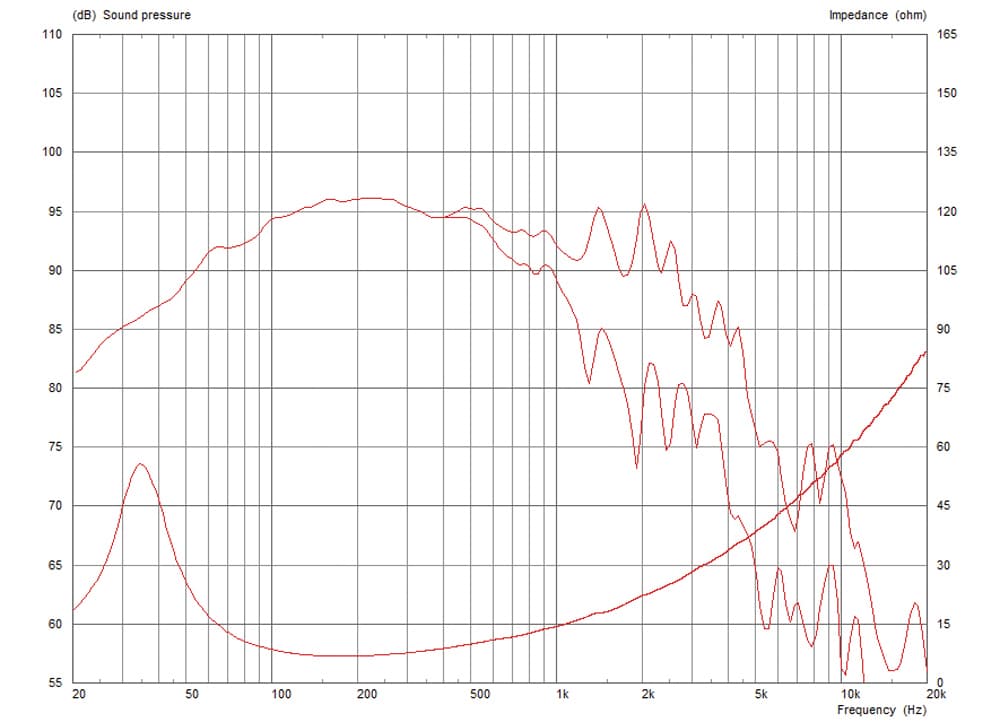

Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
LF frequency response137 ptsp1medium
Curve provenanceInspect 1 traceHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
LF frequency response
Frequency response
137 plotted pointsMedium confidence199 selected pixels of 367
T/S Parameters
Valid
Fs35Hz
Qts0.28
Qes0.30
Qms3.9
Vas164.3L
Re5.6Ω
Le1.38mH
BL23.1Tm
Sd855cm²
Mms127g
Xmax8.5mm
SPL96dB
Power1000W
Impedance8Ω
Voice Coil100mm
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight9.5kg
Diameter385.0mm
Overall Depth170.0mm
Cutout Diameter351.0mm
Bolt Circle Diameter375.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Celestion
FTR15-4080FD
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
89%
Similarity
BMS
15S430V
15"
Xmax8mm-6%
Qts0.28+1%
BL23.5Tm+2%
Vas135L-18%
Qes0.29-3%
88%
Similarity
£225.00
Celestion
FTR15-4080F
15"
Xmax8.5mm0%
Qts0.25-10%
BL23.5Tm+2%
Vas163.1L-1%
Qes0.27-8%
88%
Similarity

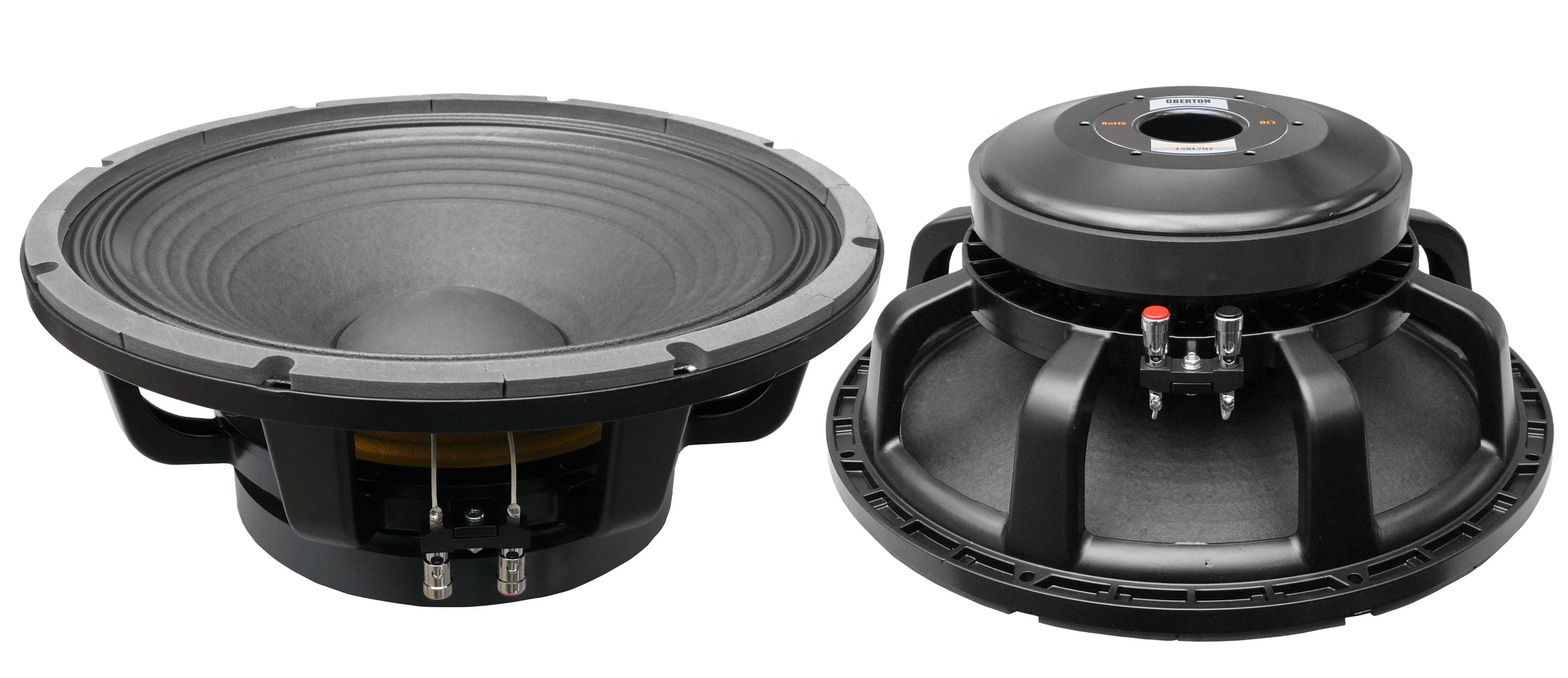

Oberton
15XL701
15"
Xmax8.8mm+3%
Qts0.28+1%
BL23.1Tm0%
Vas117L-29%
Qes0.29-3%
88%
Similarity
£493.44
FaitalPRO
15HX500
15"
Xmax9.4mm+11%
Qts0.28+1%
BL22.2Tm-4%
Vas150.1L-9%
Qes0.29-3%
88%
Similarity
£254.65

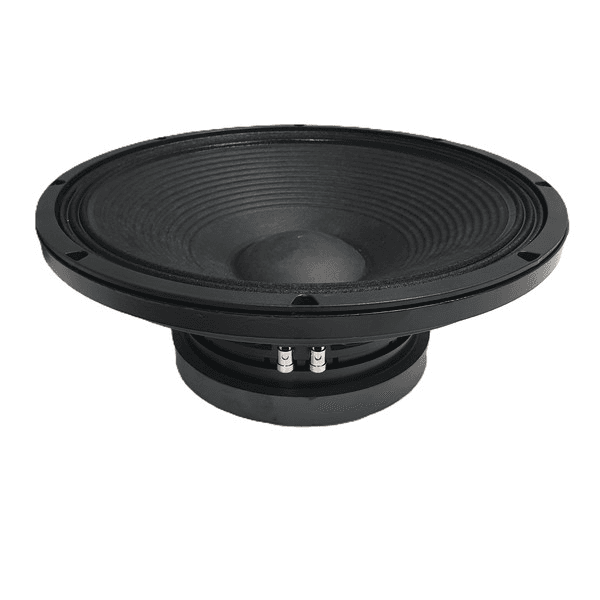

Eighteen Sound
15LW1410
15"
Xmax8.5mm0%
Qts0.27-3%
BL24.1Tm+5%
Vas131L-20%
Qes0.28-6%
88%
Similarity
£284.97
Eighteen Sound
15LW1500
15"
Xmax9mm+6%
Qts0.28+1%
BL22.1Tm-4%
Vas195L+19%
Qes0.29-3%
88%
Similarity
Eighteen Sound
15ND940
15"
Xmax9.5mm+12%
Qts0.28+1%
BL21.9Tm-5%
Vas174L+6%
Qes0.29-3%
86%
Similarity
BMS
15S435
15"
Xmax8mm-6%
Qts0.28+1%
BL24.4Tm+6%
Vas129L-21%
Qes0.29-3%
85%
Similarity
£315.00
Eighteen Sound
15NLW9300
15"
Xmax8mm-6%
Qts0.26-6%
BL24.4Tm+6%
Vas170L+3%
Qes0.27-9%
85%
Similarity
£228.26

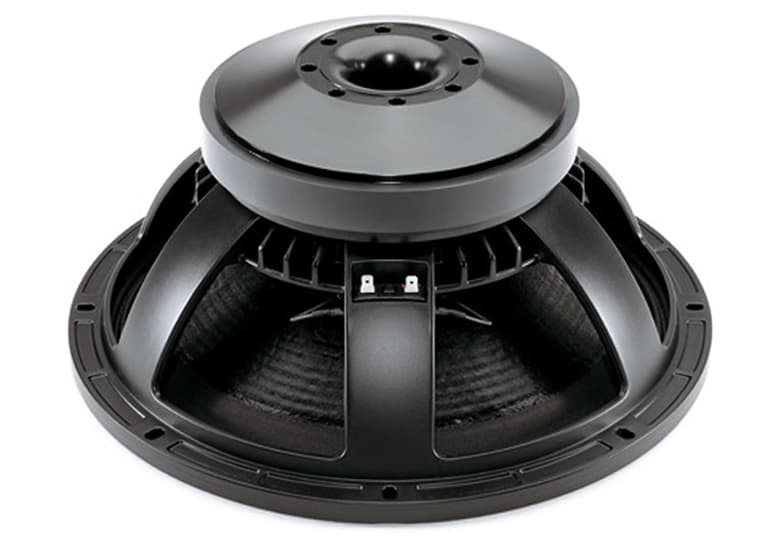

B&C
15TBX100
15"
Xmax9mm+6%
Qts0.27-3%
BL22.1Tm-4%
Vas129.6L-21%
Qes0.28-6%
85%
Similarity
£254.65

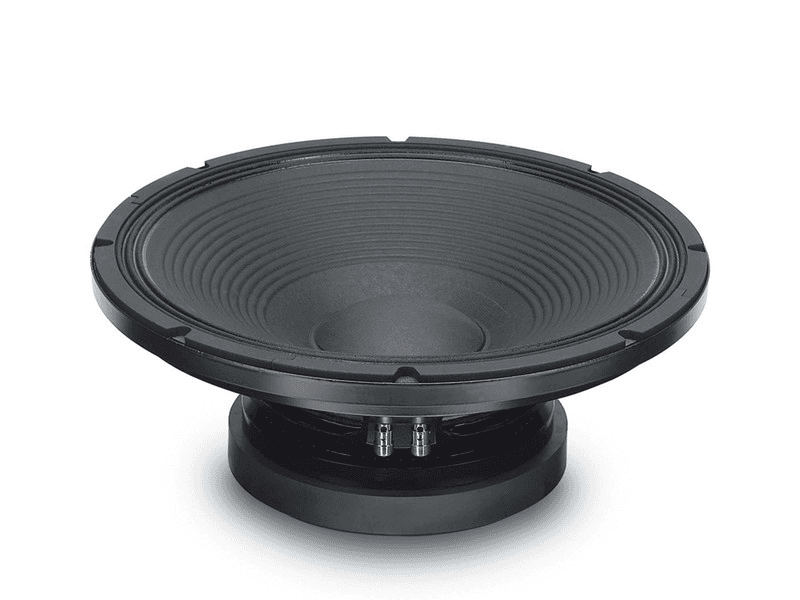

Eighteen Sound
