LF Driver15NXB series
Oberton
Oberton 15NXB1000
Oberton 15NXB1000 is a 15" 8 ohm LF driver rated at 1000W RMS. The validated T/S data includes Fs 38Hz, Qts 0.28, Vas 105.5L, Xmax 9mm, sensitivity 95.1dB, plus 747cm³ Vd and 131 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1000W
Sensitivity
95.1dB
50.0dBmanufacturer; using T/S-derived value (45.1dB delta).
EBP
131
Vented alignment
Vd
747cm³
T/S Parameters
Valid
Fs38Hz
Qts0.28
Qes0.29
Qms8.8
Vas105.5L
Re5.2Ω
Le1.98mH
BL26.0Tm
Sd830cm²
Mms157g
Xmax9.0mm
SPL95dB
Power1000W
Impedance8Ω
Min Impedance7.2Ω
F Low38Hz
F High1000Hz
Flux Density1.00T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

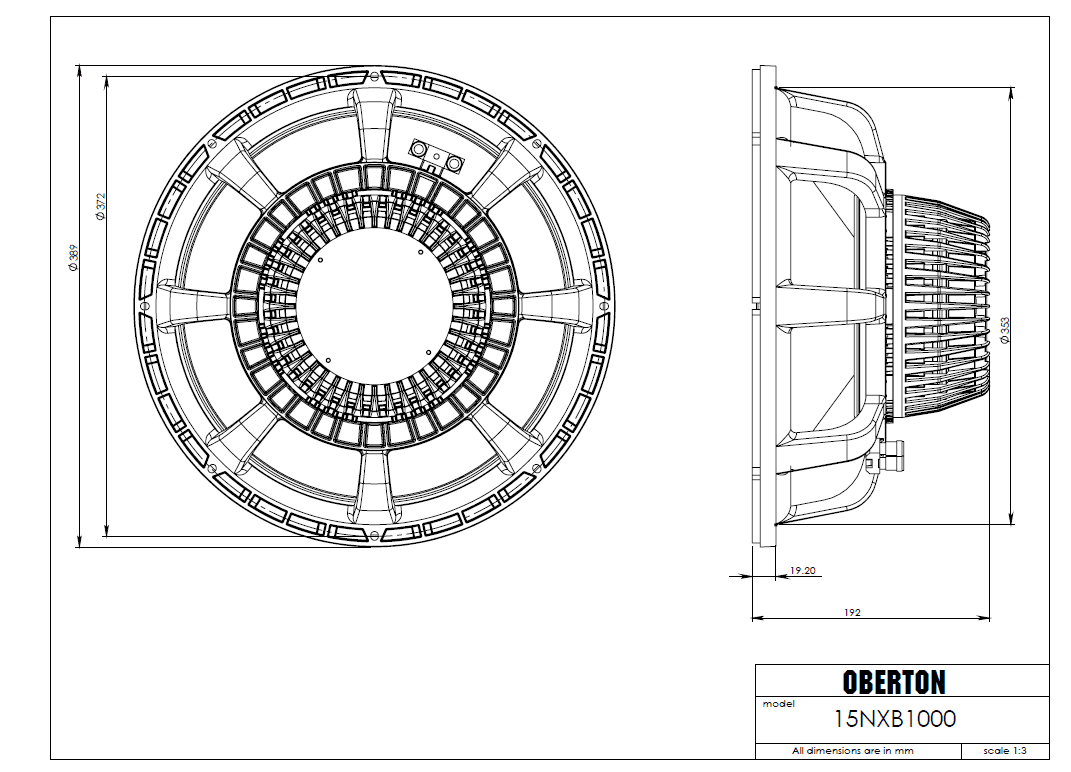

Dimensions & Physical
Weight8.1kg
Diameter389.0mm
Overall Depth192.0mm
Cutout Diameter353.0mm
Bolt Circle Diameter372.0mm
