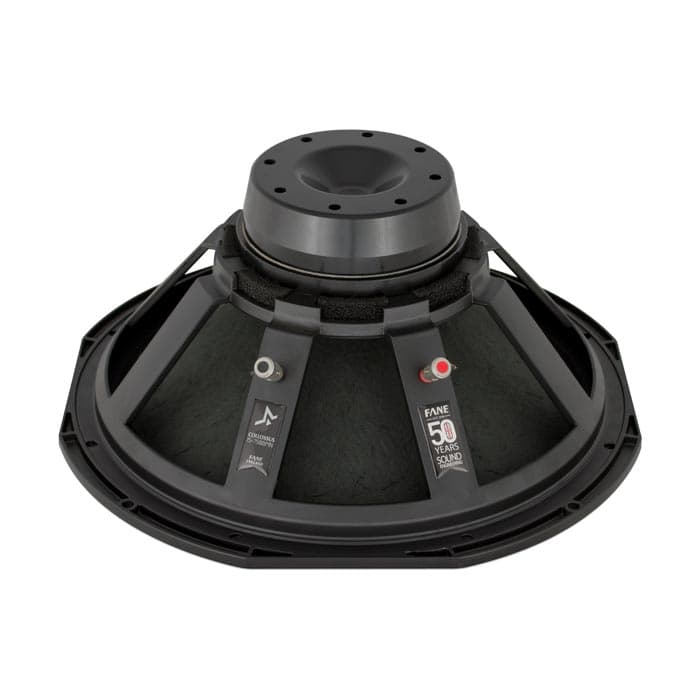

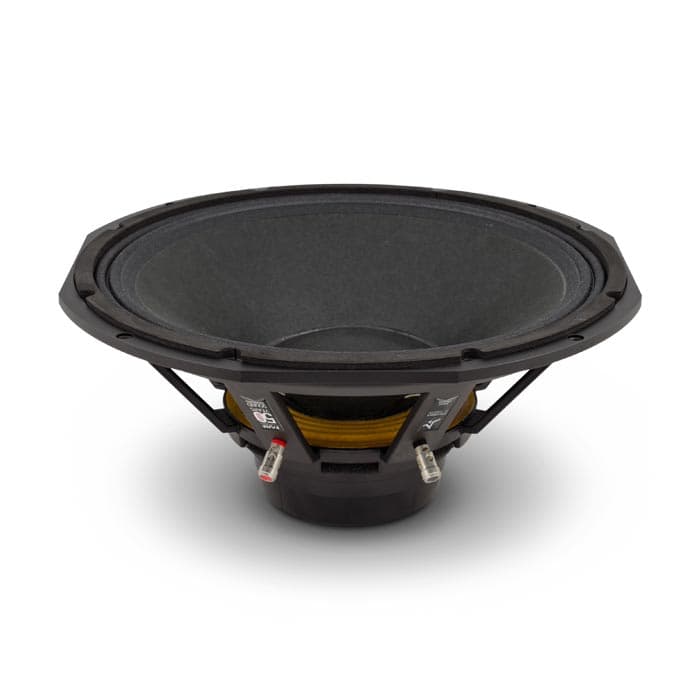

Fane COLOSSUS 15-750BMN 8Ω
8 Ω · 40–3000 Hz
No current price
- Fs
- 45Hz
- Xmax
- 7.5mm
- SPL
- 98dB
- Pe
- 750W
- BL
- 24.5T·m
- Vd
- 650cm³
- Qts
- 0.27
- Vas
- 127L
Fane COLOSSUS 15-750BMN is a 15-inch 8 ohm LF driver rated at 750 W RMS. The validated T/S data includes Fs 45 Hz, Qts 0.27, Vas 127 L, Xmax 7.5 mm, sensitivity 98 dB, plus 650 cm³ Vd and 155 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 45Hz
- Qts
- 0.27
- Qes
- 0.29
- Qms
- 4.0
- Vas
- 127L
- Re
- 5.5Ω
- Le
- 1.69mH
Motor and cone
- BL
- 24.5T·m
- Sd
- 866cm²
- Mms
- 109g
- Xmax
- 7.5mm
- Vd †
- 650cm³
Power and response
- Sensitivity †
- 98dB
- Manufacturer sensitivity
- 100dB
- Power
- 750W
- Impedance
- 8Ω
- Range
- 40–3000Hz
- EBP †
- 155 · Leans vented
Size and mounting
- Diameter
- 406.4mm
- Depth
- 174mm
- Weight
- 6.8kg
Other published values
- Cms
- 0.12mm/N
- Power Peak
- 3000
- Power Program
- 1500
Sensitivity shows 98.0 dB, calculated from the T/S values. Fane publishes 100.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Fane lists
LF · Primary · 15″
- BL
- 24.5T·m
- Fs
- 45Hz
- Le
- 1.69mH
- Re
- 5.5Ω
- Sd
- 866cm²
- Cms
- 0.12mm/N
- Mms
- 109g
- Qes
- 0.29
- Qms
- 4.0
- Qts
- 0.27
- SPL
- 98dB
- Vas
- 127L
- Xmax
- 7.5mm
- Power
- 750W
- Impedance
- 8Ω
- Power Peak
- 3000
- Sensitivity
- 100dB
- Low limit
- 40Hz
- Power Program
- 1500
- Calculated sensitivity †
- 98dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 100dB
- Weight
- 6.8kg
- Diameter
- 406.4mm
- Depth
- 174mm
