LF DriverPD series
Precision Devices

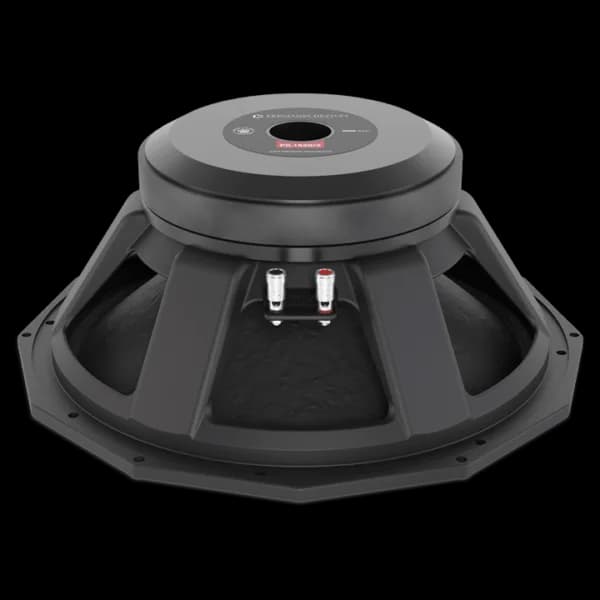

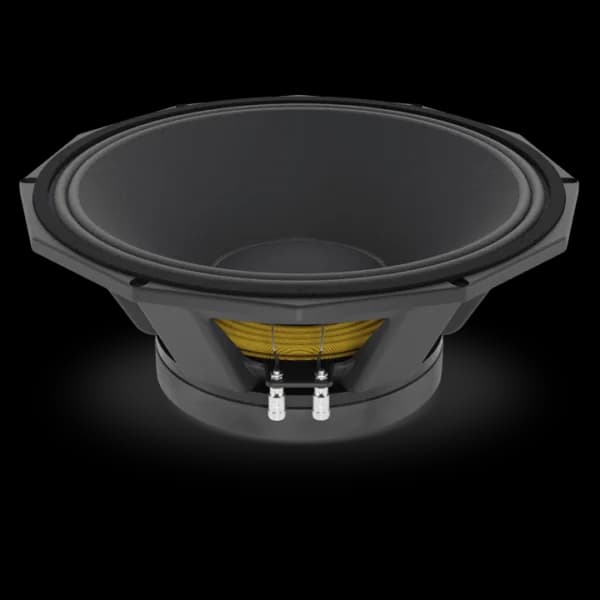

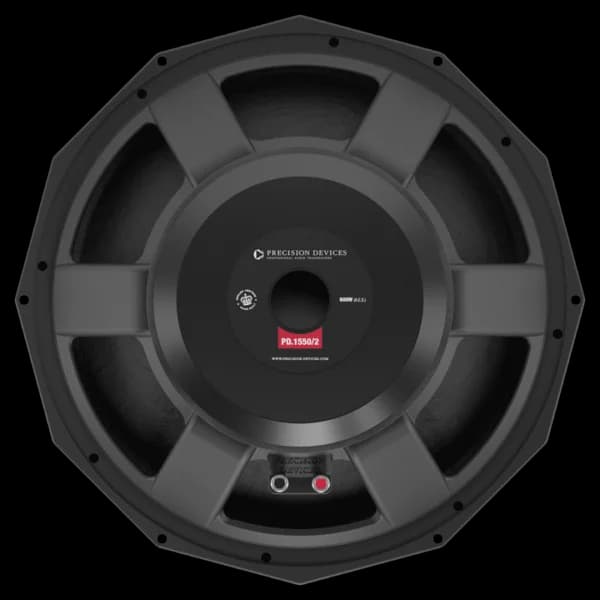

Precision Devices PD.1550/2
Precision Devices PD.1550/2 is a 15" 8 ohm LF driver rated at 600W RMS. The validated T/S data includes Fs 46Hz, Qts 0.29, Vas 126.4L, Xmax 8.2mm, sensitivity 98.2dB, plus 744cm³ Vd and 154 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
600W
Sensitivity
98.2dB
EBP
154
Vented alignment
Vd
744cm³
T/S Parameters
Valid
Fs46Hz
Qts0.29
Qes0.30
Qms13.9
Vas126.4L
Re6.6Ω
Le0.78mH
BL26.6Tm
Sd908cm²
Mms114g
Xmax8.2mm
SPL98dB
Power600W
Impedance8Ω
F Low40Hz
F High1500Hz
Voice Coil102mm
Flux Density1.50T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight13.0kg
Diameter408.3mm
Overall Depth153.7mm
Cutout Diameter357.0mm
Bolt Circle Diameter395.0mm
