15-inch LF driver · 15NXB series

Oberton 15NXB700 8Ω

Name: Oberton 15NXB700 8 Ohm
Brand: Oberton
SKU: 15NXB700

8 Ω · 38–1000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 38Hz
Xmax: 9mm
SPL: 95dB
Pe: –
BL: 26.0T·m
Vd: 747cm³
Qts: 0.28
Vas: 106L

See all 26 specs

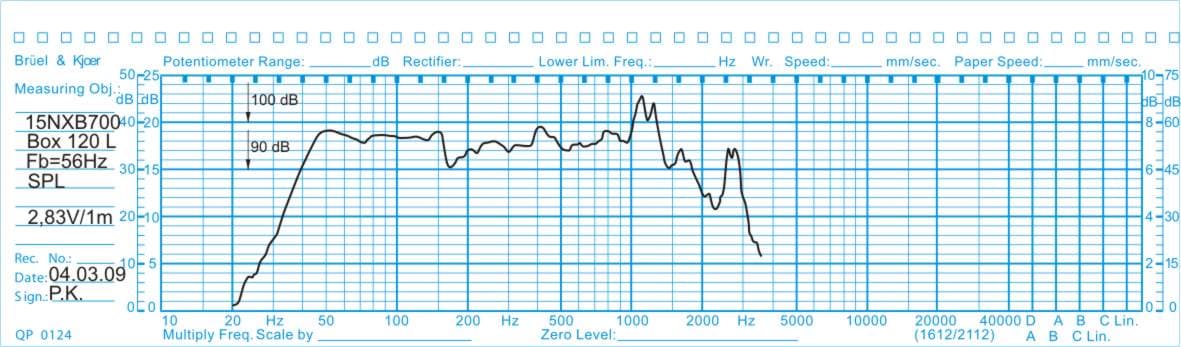

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 15NXB700 is a 15-inch 8 ohm LF driver. The validated T/S data includes Fs 38 Hz, Qts 0.28, Vas 105.5 L, Xmax 9 mm, sensitivity 95.1 dB, plus 747 cm³ Vd and 131 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 38Hz
Qts: 0.28
Qes: 0.29
Qms: 8.8
Vas: 105.5L
Re: 5.2Ω
Le: 1.98mH

Motor and cone

BL: 26.0T·m
Sd: 830cm²
Mms: 157g
Xmax: 9mm
Vd †: 747cm³
Flux density: 1T

Power and response

Sensitivity †: 95.1dB
Manufacturer sensitivity: 50dB
Impedance: 8Ω
Min. impedance: 7.2Ω
Range: 38–1000Hz
EBP †: 131 · Leans vented

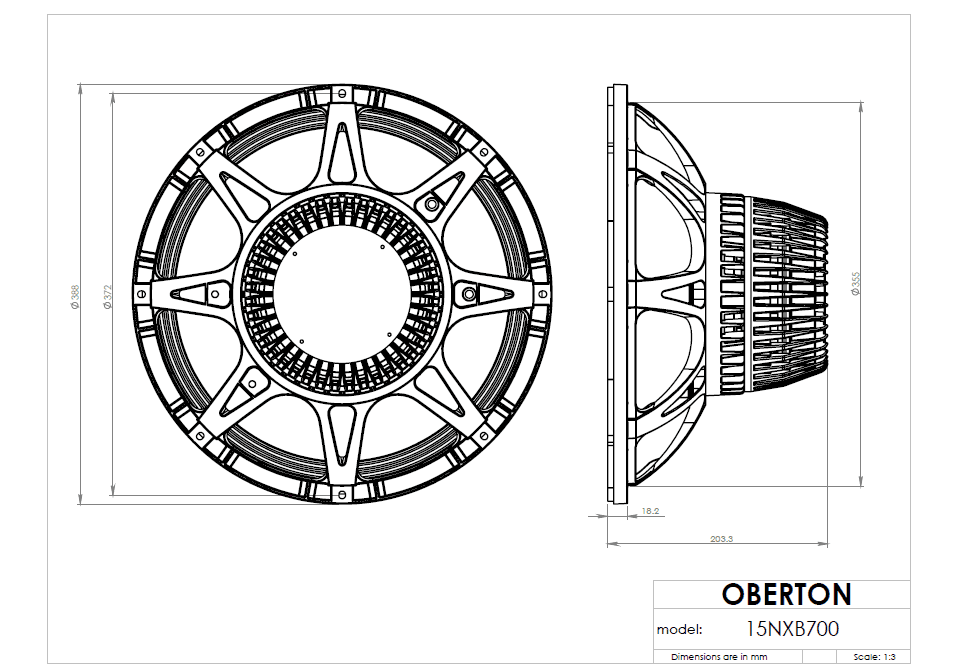

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 372mm
Depth: 203.3mm
Weight: 8.1kg

Other published values

Cms: 0.11mm/N
Power Program: 2000

Sensitivity shows 95.1 dB, calculated from the T/S values. Oberton publishes 50.0 dB, 45.1 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 26.0T·m
Fs: 38Hz
Le: 1.98mH
Re: 5.2Ω
Sd: 830cm²
Cms: 0.11mm/N
Mms: 157g
Qes: 0.29
Qms: 8.8
Qts: 0.28
SPL: 95.1dB
Vas: 105.5L
Xmax: 9mm
Impedance: 8Ω
Flux density: 1T
Sensitivity: 50dB
Low limit: 38Hz
Power Program: 2000
Calculated sensitivity †: 95.1dB
High limit: 1000Hz
Manufacturer sensitivity: 50dB
Min. impedance: 7.2Ω
Weight: 8.1kg
Diameter: 388mm
Depth: 203.3mm
Cutout: 355mm
Bolt circle: 372mm
