LF Driver15HTX series
B&C

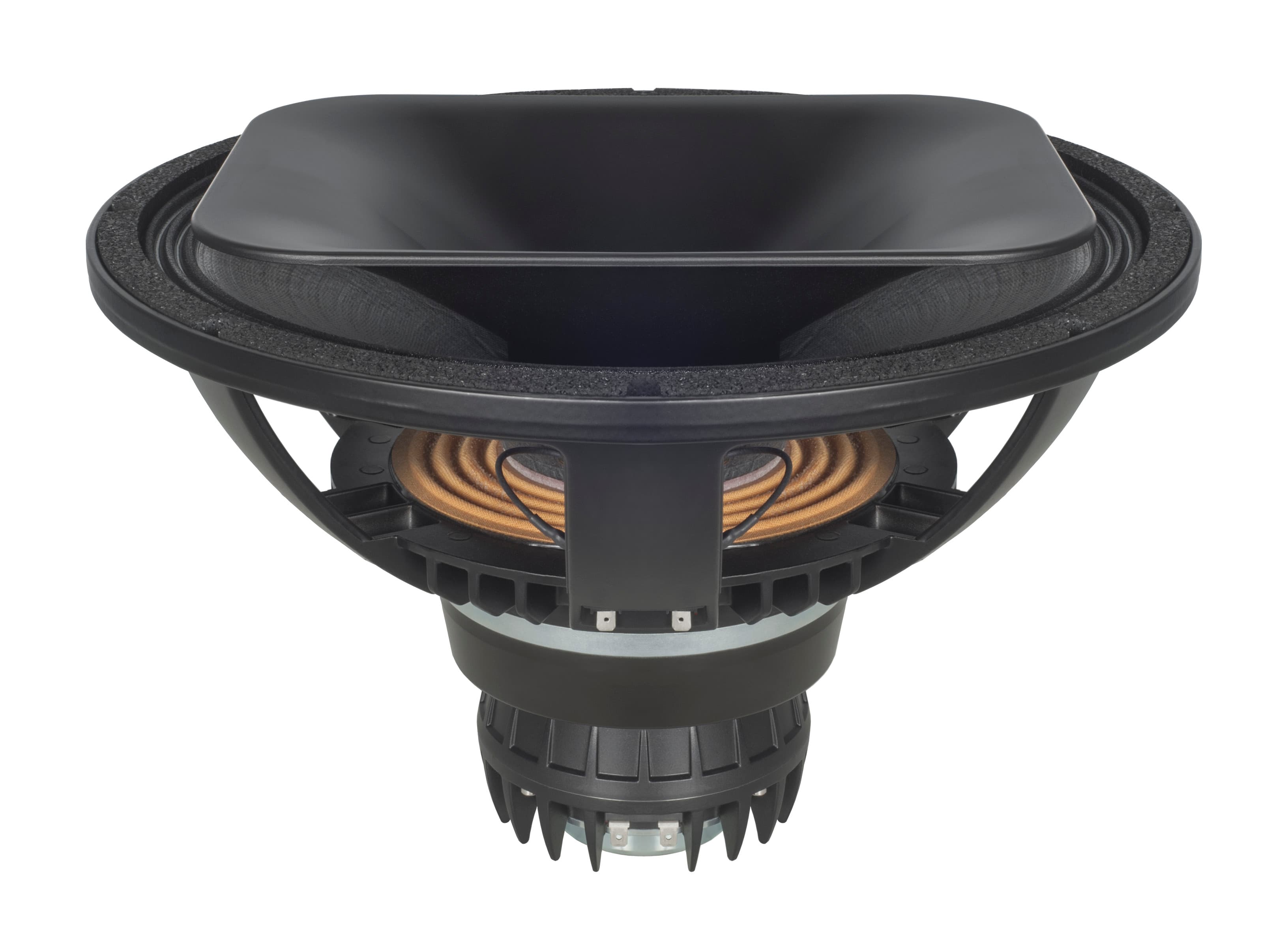

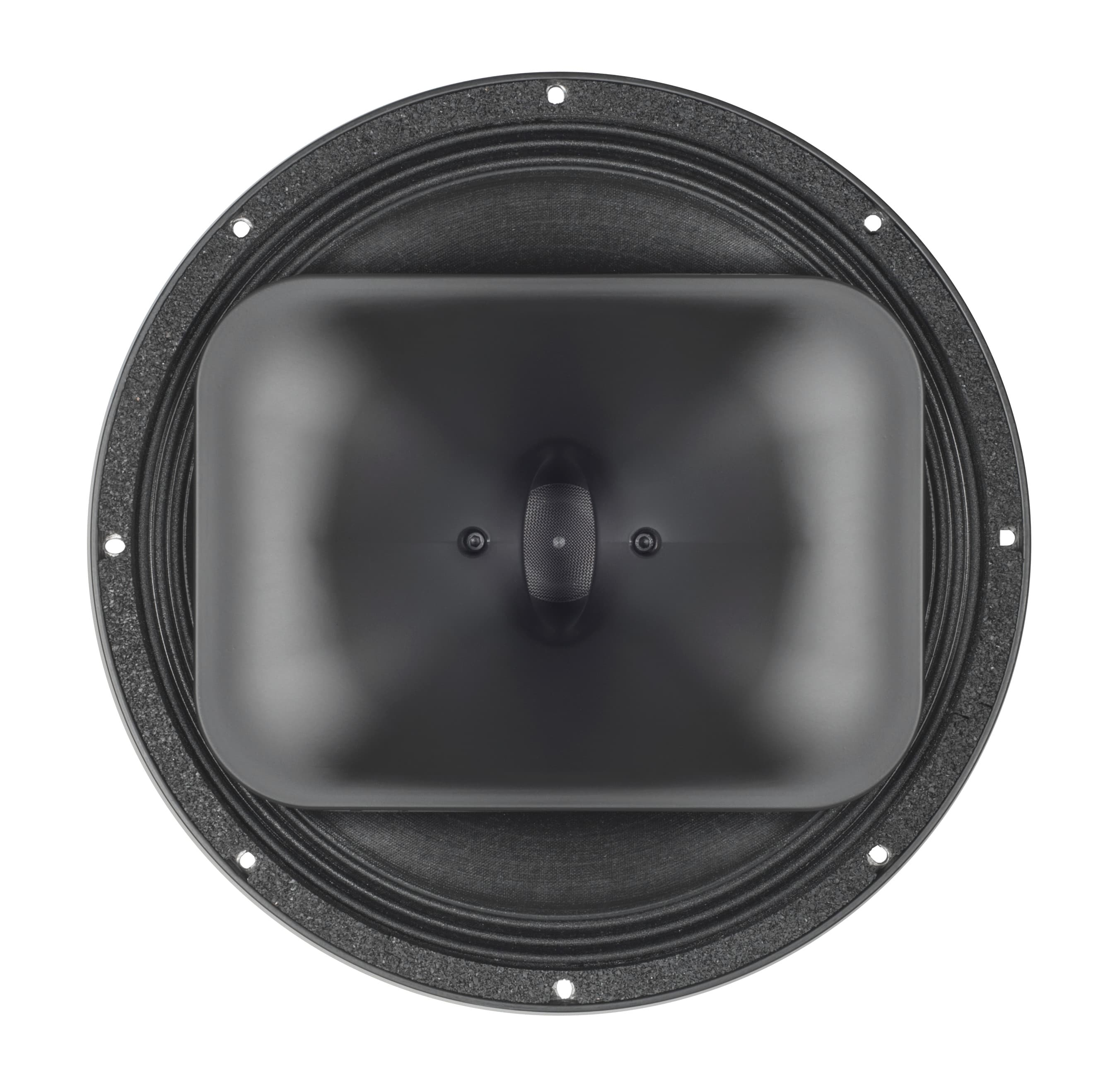

B&C 15HTX100
B&C 15HTX100 is a 15" 8 ohm LF driver rated at 800W RMS. The validated T/S data includes Fs 52Hz, Qts 0.29, Vas 78L, Xmax 10mm, sensitivity 97.6dB, plus 855cm³ Vd and 170 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £778.27.
Size
15"
Impedance
8Ω
RMS Power
800W
Sensitivity
97.6dB
99.0dBmanufacturer; using T/S-derived value (1.4dB delta).
EBP
170
Vented alignment
Vd
855cm³

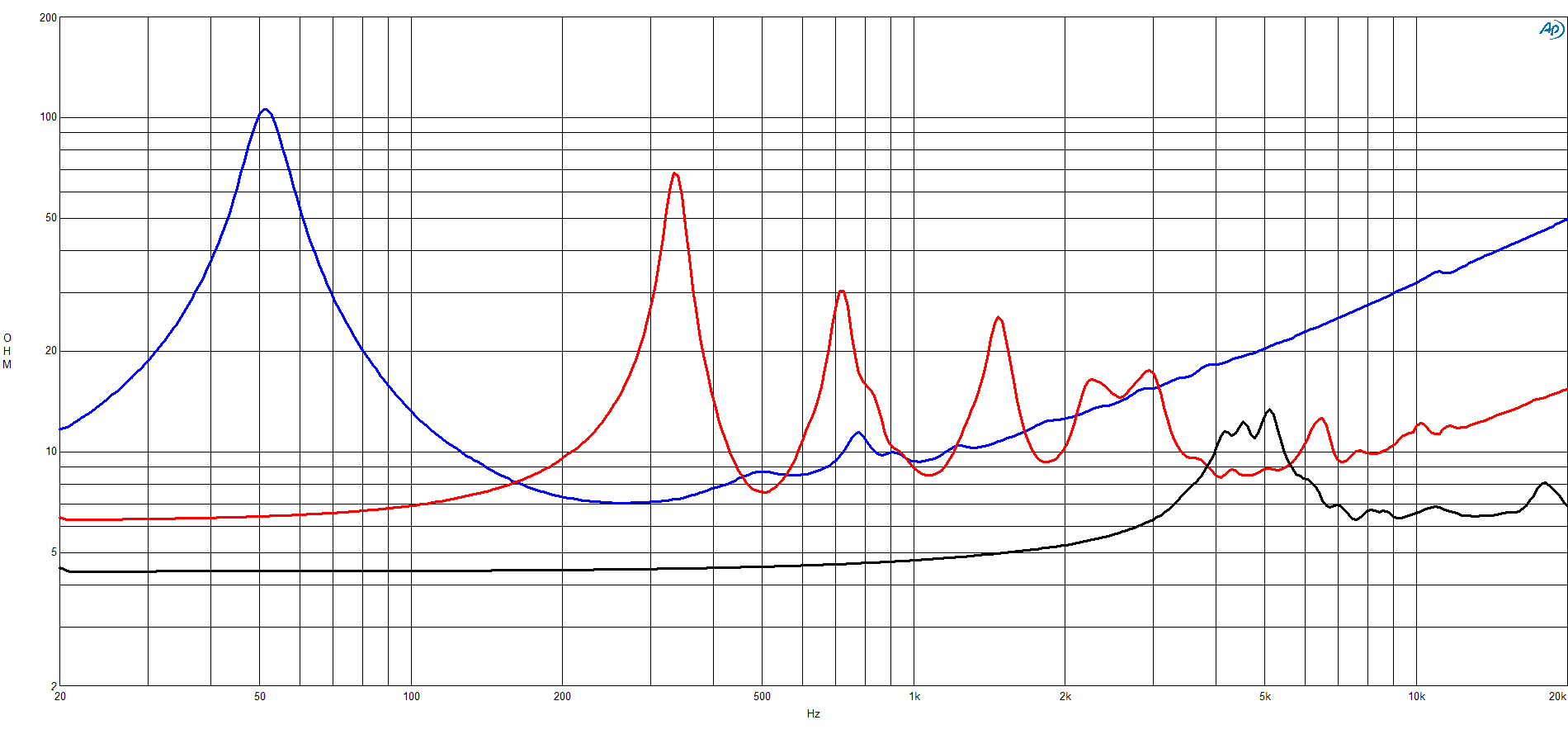

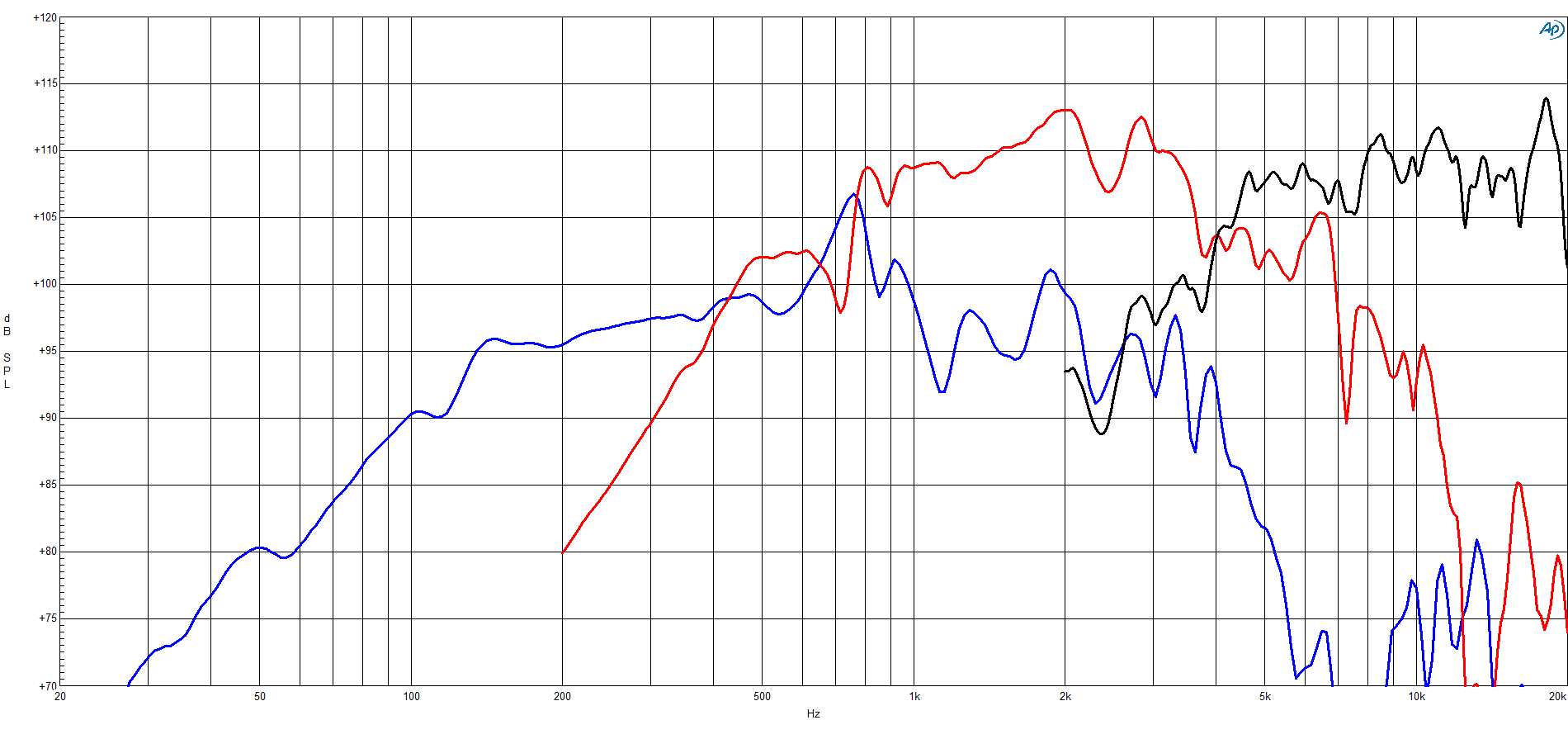

Frequency response

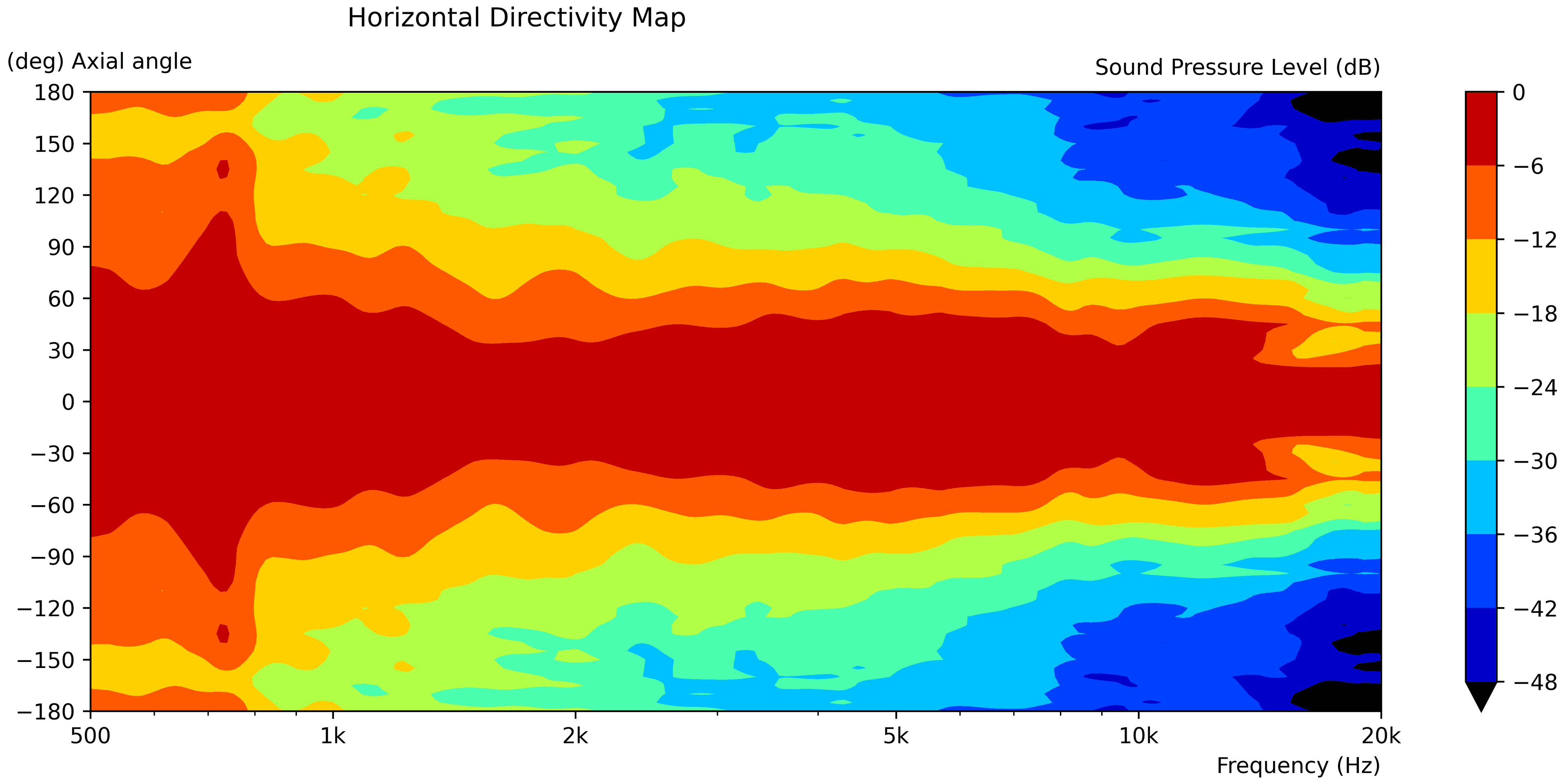

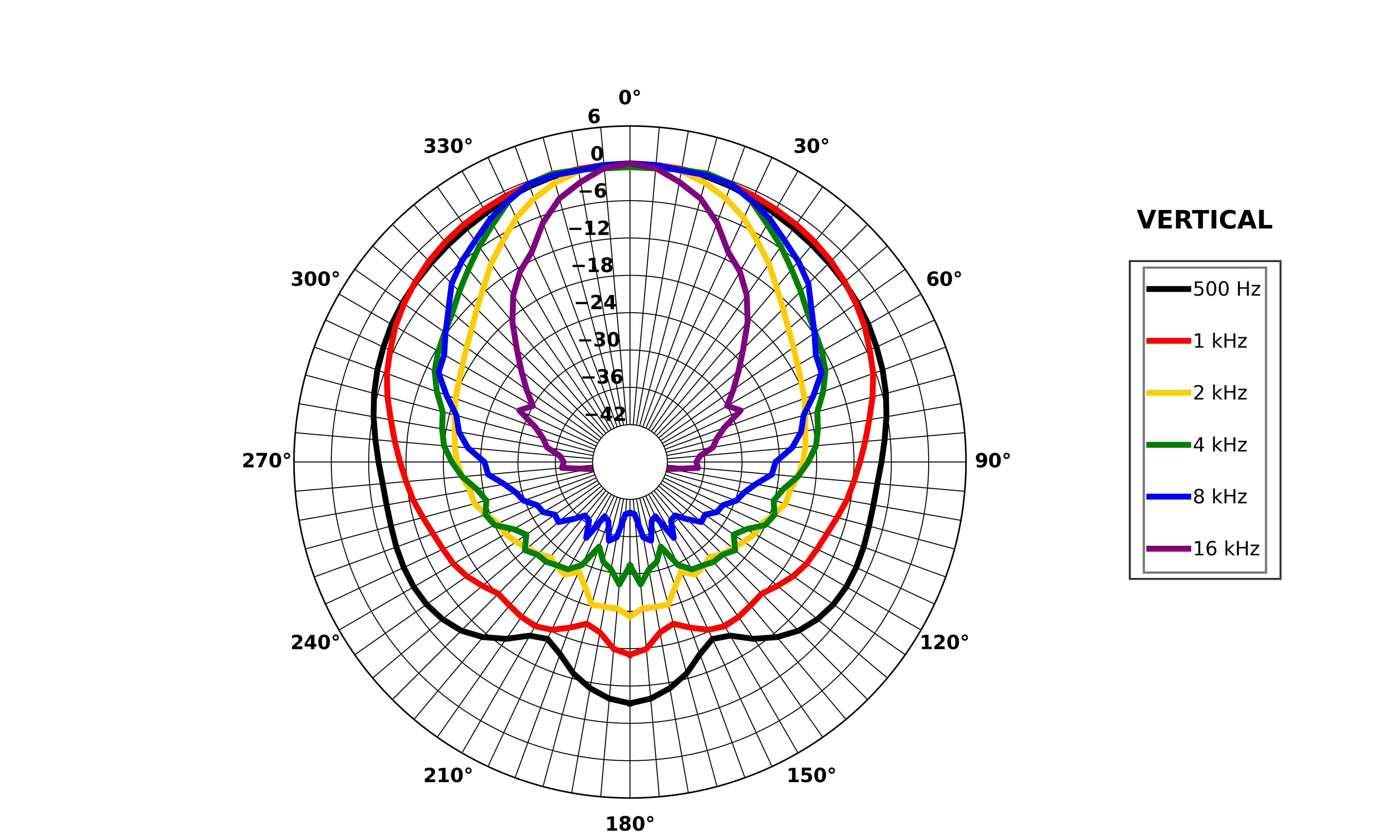

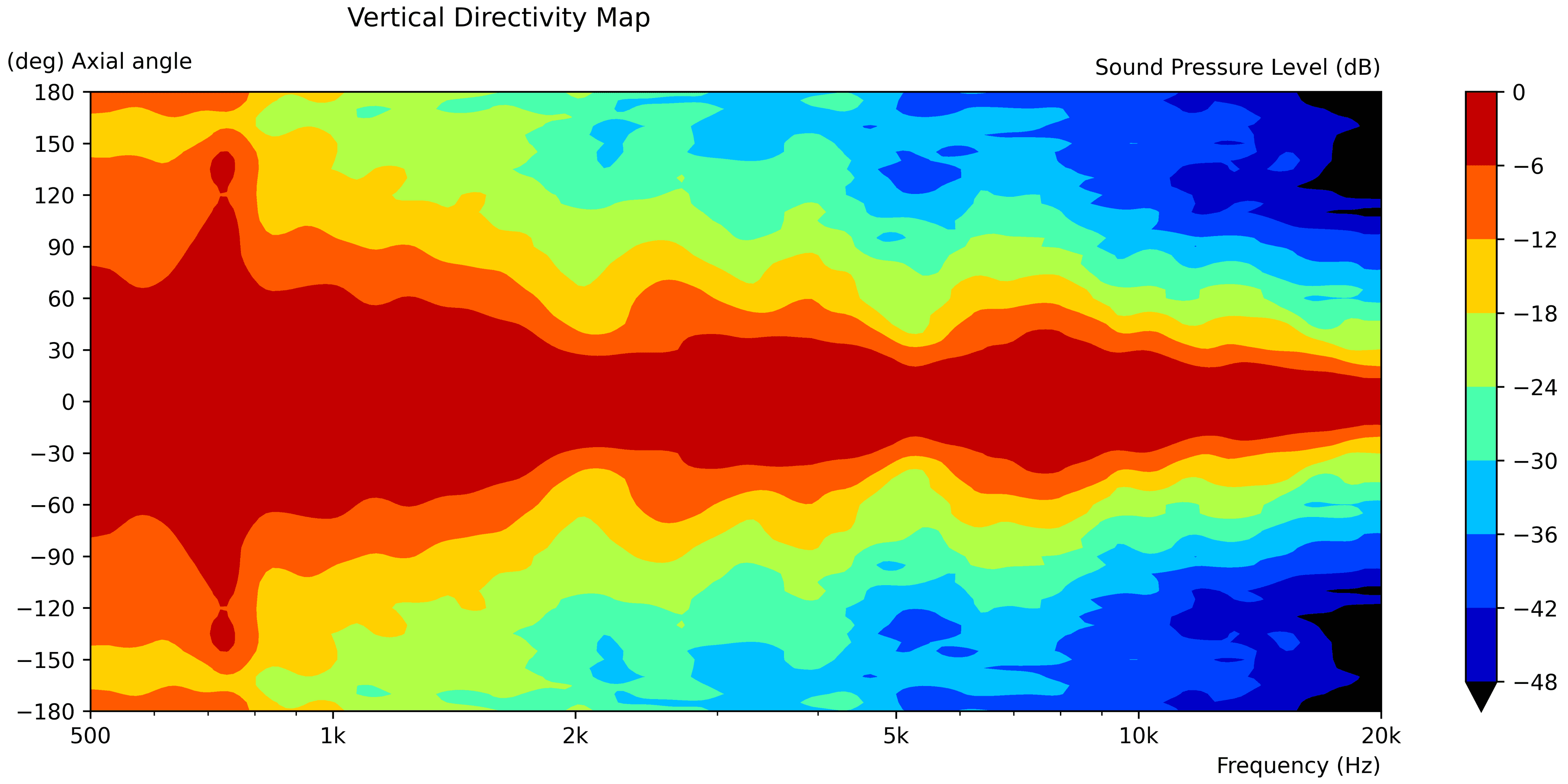

Manufacturer-provided response plots and related charts.
Overall Parameters
Valid
Fs52Hz
Qts0.29
Qes0.30
Qms5.9
Vas78.0L
Re5.5Ω
Le0.90mH
BL27.0Tm
Sd855cm²
Mms125g
Xmax10.0mm
SPL98dB
Power800W
Power Nominal800W
Impedance8Ω
Min Impedance7.0Ω
F Low52Hz
F High20000Hz
Voice Coil100mm
Flux Density1.50T
Hybrid view: LF section is used for excursion/motor values, while frequency limits merge upper sections.
What this validation status meansPricing & availability
Price definitionsPrice movement
Best current price
£778.27
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Driver Components
LFSpecifications LF unit
Fs52 Hz
Qts0.29
Qes0.30
Qms5.9
Vas78.0 L
Re5.5 Ω
Le0.90 mH
BL27.0 Tm
Sd855 cm²
Mms125 g
Xmax10.0 mm
SPL98 dB
Power800 W
Power Nominal800 W
Impedance8 Ω
Min Impedance7.0 Ω
F Low52 Hz
F High1000 Hz
Voice Coil100 mm
Flux Density1.50 T
MFSpecifications MF unit
Le0.26 mH
SPL109 dB
Power90 W
Power Nominal90 W
Impedance8 Ω
Min Impedance7.5 Ω
F Low500 Hz
F High5500 Hz
Xover700 Hz
Voice Coil76 mm
Flux Density1.90 T
HFSpecifications HF unit
Le0.10 mH
SPL109 dB
Power50 W
Power Nominal50 W
Impedance8 Ω
Min Impedance6.5 Ω
F Low5000 Hz
F High20000 Hz
Xover4500 Hz
Voice Coil51 mm
Flux Density1.95 T
Additional Manufacturer Specs
Bl27 Tm
Fs52 Hz
Le0.9 mH
Re5.5 Ω
Sd855 cm² (132.5 in²)
Ebp170 Hz
Mms125 g
Qes0.305
Qms5.9
Qts0.29
Vas78 dm³ (2.75 ft³)
η03.5 %
Xmax10 mm (0.4 in)
Xvar8.5 mm
Winding Depth25.1 mm (1 in)
Former MaterialGlass Fibre
Winding MaterialAluminium
Magnetic Gap Depth10.2 mm (0.4 in)
