Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespB&C 15TBW100 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver15TBW series
B&C
B&C 15TBW100
B&C 15TBW100 is a 15" 8 ohm LF driver rated at 1500W RMS. The validated T/S data includes Fs 39Hz, Qts 0.31, Vas 96L, Xmax 12mm, sensitivity 94.4dB, plus 1026cm³ Vd and 118 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £246.65.
Size
15"
Impedance
8Ω
RMS Power
1500W
Sensitivity
94.4dB
96.0dBmanufacturer; using T/S-derived value (1.6dB delta).
EBP
118
Vented alignment
Vd
1026cm³

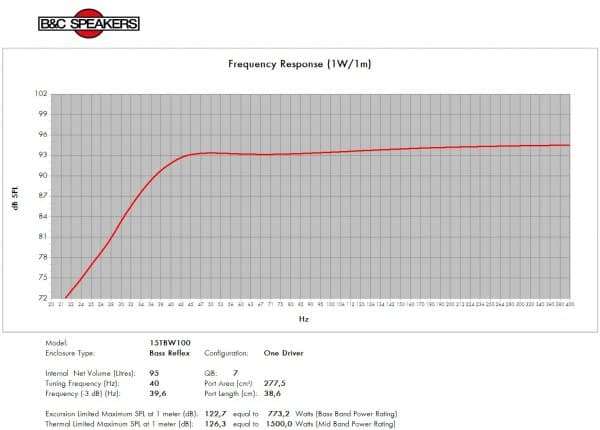

Frequency response
Manufacturer-provided response plots and related charts.
T/S Parameters
Valid
Fs39Hz
Qts0.31
Qes0.33
Qms4.4
Vas96.0L
Re5.3Ω
Le2.20mH
BL26.4Tm
Sd855cm²
Mms181g
Xmax12.0mm
SPL94dB
Power1500W
Power Nominal1500W
Impedance8Ω
Min Impedance6.7Ω
F Low40Hz
F High1500Hz
Voice Coil100mm
Flux Density1.15T
Pricing & availability
Price definitionsPrice movement
Other offers
7 vendorsjpleisure
Updated 7 Aug 2026· 8Ω
Source: ex VAT · 20%
£246.65
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£246.65
inc VAT
In stock
jpleisure
Updated 11 Sept 2026· 8Ω
Source: ex VAT · 20%
£246.65
inc VAT
In stock
bluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£258.00
inc VAT
8 in stock
bluearan
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£258.00
inc VAT
8 in stock5-7 weeks
thomann
Updated 11 Sept 2026· 8Ω
Source: inc VAT · 20%
£259.00
inc VAT
In stock
partsexpress
Updated 11 Sept 2026· 8Ω
Source: ex VAT
£317.62
inc VAT
6 in stock
Best current price
Updated 7 Aug 2026
jpleisure
£246.65
Avg £259.90£13.25 below avg (-5.1%)
inc VAT·In stock
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight12.2kg
Diameter393.0mm
Overall Depth191.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter374.0mm
Additional Manufacturer Specs
Bl26.4 Tm
Fs39 Hz
Le2.2 mH
Re5.3 Ω
Sd855 cm² (132.5 in²)
Ebp118 Hz
Mms181 g
Qes0.33
Qms4.4
Qts0.31
Vas96 dm³ (3.39 ft³)
η01.6 %
ConeRCK15TBW1008
Xmax12 mm
Xvar13.5 mm
SpiderDouble Silicone
Cone ShapeRadial
Pole DesignT-Pole
Winding Depth31 mm (1.22 in)
Surround ShapeTriple Roll
Former MaterialGlass Fibre
Magnet MaterialFerrite
Nominal Diameter380 mm (15 in)
Winding MaterialCopper
Magnetic Gap Depth15 mm (0.59 in)
Recommended Tuning40 Hz
Bolt Circle Diameter374 mm (14.7 in)
Recommended Enclosure95 dm³ (3.35 ft³)
Woofer Cone TreatmentTWP Waterproof Both Sides
Baffle Cutout Diameter354 mm (13.9 in)
Flange And Gasket Thickness14 mm (0.55 in)
Air Volume Occupied By Driver6 dm³ (0.21 ft³)
