15-inch LF driver · 15XB series · 100 mm voice coil

Oberton 15XB1200 8Ω

Name: Oberton 15XB1200 8 Ohm
Brand: Oberton
SKU: 15XB1200

8 Ω · 39–2000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 40Hz
Xmax: 12mm
SPL: 95dB
Pe: –
BL: 23.9T·m
Vd: 996cm³
Qts: 0.31
Vas: 109L

See all 27 specs

Published graphs

Specifications

Published by Oberton

Manufacturer page

Oberton 15XB1200 is a 15-inch 8 ohm LF driver. The validated T/S data includes Fs 40 Hz, Qts 0.31, Vas 108.5 L, Xmax 12 mm, sensitivity 95.3 dB, plus 996 cm³ Vd and 124 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 40Hz
Qts: 0.31
Qes: 0.32
Qms: 7.8
Vas: 108.5L
Re: 5.2Ω
Le: 1.36mH

Motor and cone

BL: 23.9T·m
Sd: 830cm²
Mms: 142g
Xmax: 12mm
Vd †: 996cm³
Voice coil: 100mm
Flux density: 1.25T

Power and response

Sensitivity †: 95.3dB
Manufacturer sensitivity: 100dB
Impedance: 8Ω
Min. impedance: 6.5Ω
Range: 39–2000Hz
EBP †: 124 · Leans vented

Size and mounting

Diameter: 388mm
Cutout: 355mm
Bolt circle: 372mm
Depth: 186.5mm
Weight: 12.8kg

Other published values

Cms: 0.11mm/N
Power Program: 2400

Sensitivity shows 95.3 dB, calculated from the T/S values. Oberton publishes 100.0 dB, 4.7 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 23.9T·m
Fs: 40Hz
Le: 1.36mH
Re: 5.2Ω
Sd: 830cm²
Cms: 0.11mm/N
Mms: 142g
Qes: 0.32
Qms: 7.8
Qts: 0.31
SPL: 95.3dB
Vas: 108.5L
Xmax: 12mm
Impedance: 8Ω
Flux density: 1.25T
Sensitivity: 100dB
Low limit: 39Hz
Power Program: 2400
Calculated sensitivity †: 95.3dB
High limit: 2000Hz
Manufacturer sensitivity: 100dB
Min. impedance: 6.5Ω
Voice coil: 100mm
Weight: 12.8kg
Diameter: 388mm
Depth: 186.5mm
Cutout: 355mm
Bolt circle: 372mm

Compare

Same-size drivers, compared with the 15XB1200. Clear differences are green when better and red when worse.

This driver15XB1200

Best price

–

40 Hz

Qts

0.31

Vas

108.5 L

23.9 T·m

Xmax

12 mm

Sensitivity

95.3 dB

Power

–

VisatonPAW 38

£136.39

Fs36 Hz −10%

Qts0.29 −6%

Vas195 L +80%

BL25 T·m +4%

Xmax12 mm –

Sensitivity96.7 dB +1.4

CelestionCF1540HD

£179.29

Fs41 Hz –

Qts0.30 –

Vas108.3 L –

BL24.4 T·m –

Xmax10.5 mm −13%

Sensitivity95.6 dB –

LavoceWAF154.00

£202.50

Fs38 Hz −5%

Qts0.29 −6%

Vas109.7 L –

BL27.4 T·m +14%

Xmax12.1 mm –

Sensitivity94.9 dB –

Beyma15LEX1000FE

£218.02

Fs41 Hz –

Qts0.34 +10%

Vas116 L +7%

BL23.2 T·m −3%

Xmax11 mm −8%

Sensitivity95.4 dB –

MonacorCF1540HD/8

£230.75

Fs41 Hz –

Qts0.30 –

Vas108.3 L –

BL24.4 T·m –

Xmax10.5 mm −13%

Sensitivity95.6 dB –

RCFMB15X351

£238.26

Fs46 Hz +16%

Qts0.31 –

Vas114 L +5%

BL22.8 T·m −5%

Xmax7 mm −42%

Sensitivity97.3 dB +2

RCFLF15X401

£240.00

Fs34 Hz −15%

Qts0.29 −6%

Vas146 L +35%

BL26.5 T·m +11%

Xmax12 mm –

Sensitivity94.8 dB −0.5

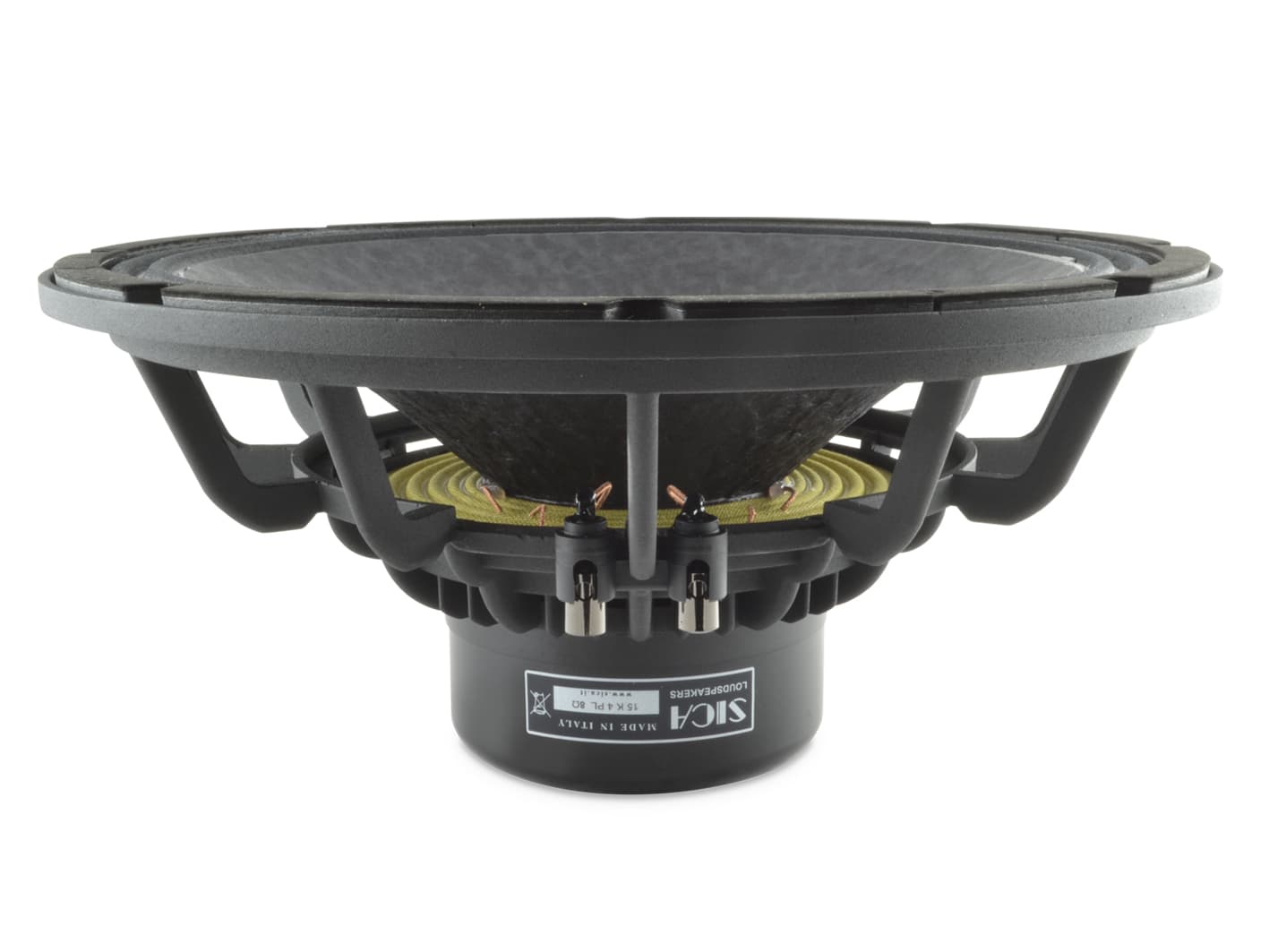

Sica15 PF 3

£240.16

Fs45 Hz +13%

Qts0.31 –

Vas117.6 L +8%

BL21.9 T·m −8%

Xmax8 mm −33%

Sensitivity97.1 dB +1.8

CelestionFTR15-4080HDX

£245.00

Fs40 Hz –

Qts0.32 +4%

Vas111.2 L –

BL23.1 T·m −4%

Xmax10.1 mm −16%

Sensitivity95 dB –

B&C15TBW100

£246.65

Fs39 Hz –

Qts0.31 –

Vas96 L −12%

BL26.4 T·m +10%

Xmax12 mm –

Sensitivity94.4 dB −0.9

EminenceLAB 15

£256.16

Fs28 Hz −30%

Qts0.35 +14%

Vas103.6 L −5%

BL26.7 T·m +11%

Xmax11.8 mm –

Sensitivity89.9 dB −5.4

B&C15NBX100

£267.25

Fs36 Hz −10%

Qts0.29 −6%

Vas125 L +15%

BL25 T·m +4%

Xmax10 mm −17%

Sensitivity94.8 dB −0.5

FaitalPRO15HP1030

£269.88

Fs40 Hz –

Qts0.34 +10%

Vas95 L −12%

BL24.3 T·m –

Xmax12.4 mm +4%

Sensitivity94.4 dB −0.9

Eighteen Sound15LW2400

£270.47

Fs40 Hz –

Qts0.30 –

Vas131 L +21%

BL24 T·m –

Xmax10 mm −17%

Sensitivity96.2 dB +0.9

Beyma15LEX1600FE

£272.34

Fs38 Hz −5%

Qts0.33 +7%

Vas106 L –

BL25.8 T·m +8%

Xmax13 mm +8%

Sensitivity94.4 dB −0.9

FaitalPRO15FX600

£277.72

Fs38 Hz −5%

Qts0.27 −12%

Vas128.3 L +18%

BL23.2 T·m −3%

Xmax11.3 mm −6%

Sensitivity96 dB +0.7

FaitalPRO15HP1060

£293.57

Fs40 Hz –

Qts0.31 –

Vas100.3 L −8%

BL24.8 T·m +4%

Xmax12.4 mm +4%

Sensitivity95.1 dB –

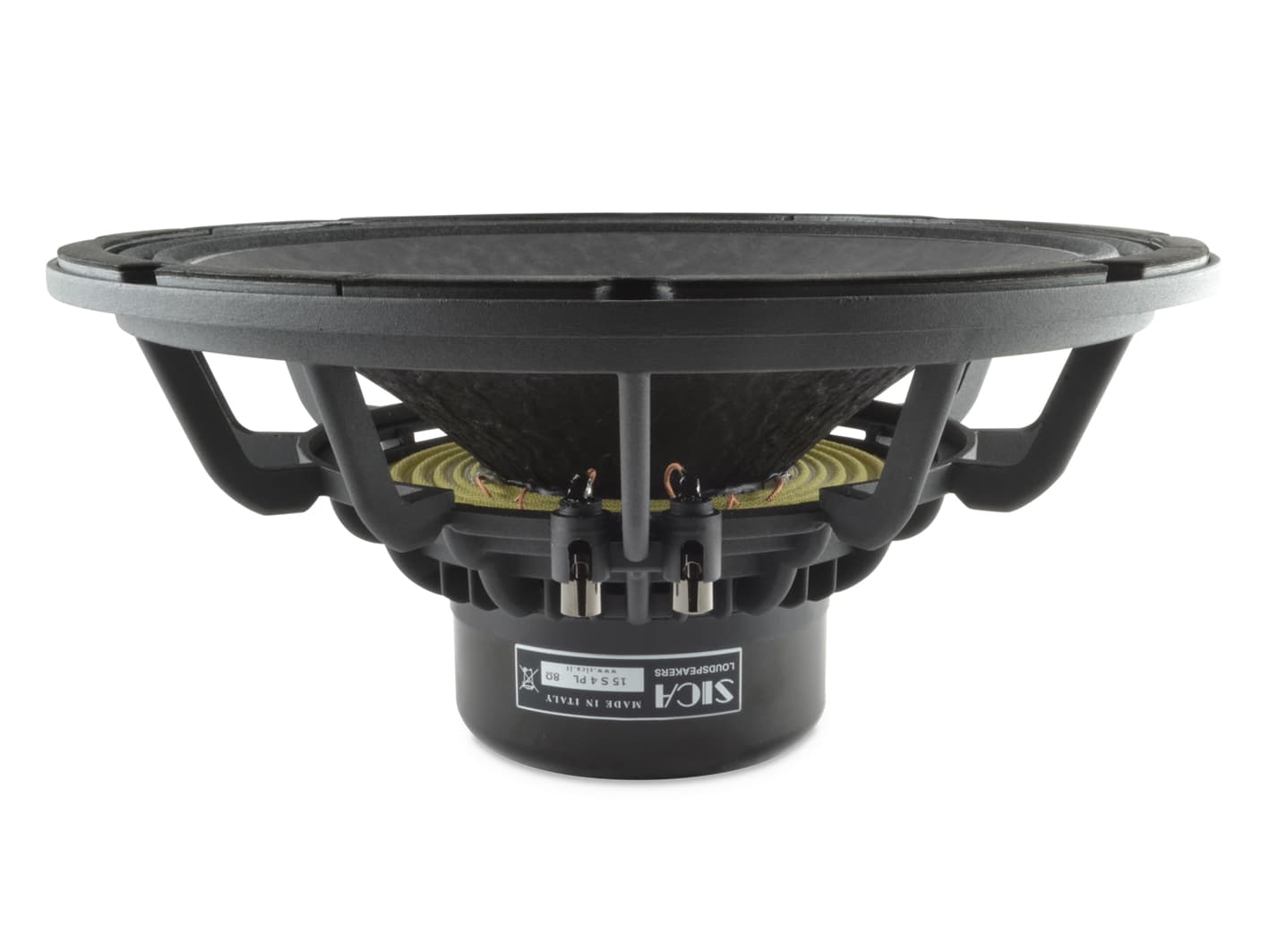

Sica15 S 4 PL

£307.97

Fs40 Hz –

Qts0.32 +4%

Vas127.6 L +18%

BL22.5 T·m −6%

Xmax10 mm −17%

Sensitivity95.8 dB +0.5

Sica15 K 4 PL

£313.12

Fs47 Hz +17%

Qts0.30 –

Vas102.3 L −6%

BL23.9 T·m –

Xmax8 mm −33%

Sensitivity97.2 dB +1.9

Beyma15MC700ND

£320.82

Fs49 Hz +23%

Qts0.31 –

Vas105 L −3%

BL22.6 T·m −6%

Xmax7 mm −42%

Sensitivity97.6 dB +2.3

B&C15SW100

£329.84

Fs37 Hz −7%

Qts0.31 –

Vas110 L –

BL25.6 T·m +7%

Xmax12.5 mm +4%

Sensitivity94.2 dB −1.1

BMS15N840

£360.08

Fs36 Hz −11%

Qts0.30 –

Vas145.7 L +34%

BL24.6 T·m –

Xmax11 mm −8%

Sensitivity95.2 dB –

FaitalPRO15XL1400

£368.40

Fs38 Hz −5%

Qts0.33 +7%

Vas91.2 L −16%

BL26.7 T·m +11%

Xmax12.9 mm +8%

Sensitivity93.7 dB −1.6

Beyma15LEX1200ND

£394.57

Fs36 Hz −10%

Qts0.30 –

Vas127 L +17%

BL26.4 T·m +10%

Xmax11 mm −8%

Sensitivity94.7 dB −0.6

Oberton15XB1201

No current price

Fs40 Hz –

Qts0.31 –

Vas108.5 L –

BL23.9 T·m –

Xmax12 mm –

Sensitivity95.3 dB –

Oberton15NXB1201

No current price

Fs38 Hz −3%

Qts0.32 +5%

Vas111.9 L +3%

BL23.6 T·m –

Xmax12 mm –

Sensitivity94.8 dB −0.5

BMS15N850V2

No current price

Fs36 Hz −11%

Qts0.30 –

Vas145.7 L +34%

BL24.6 T·m –

Xmax11 mm −8%

Sensitivity95.2 dB –

P.AudioP-15N-V3

No current price

Fs45 Hz +13%

Qts0.31 –

Vas101.9 L −6%

BL25.3 T·m +6%

Xmax5 mm −58%

Sensitivity96.7 dB +1.4

VisatonPAW 38 - 8 OHM

No current price

Fs36 Hz −10%

Qts0.29 −6%

Vas195 L +80%

BL25 T·m +4%

Xmax12 mm –

Sensitivity96.7 dB +1.4

Oberton15NXL701

No current price

Fs43 Hz +9%

Qts0.30 –

Vas127.1 L +17%

BL21.7 T·m −9%

Xmax9.3 mm −23%

Sensitivity97.3 dB +2
