Hornresp
.txt · Hornresp driver database
Driver file ready to place in Hornresp’s Drivers folder.
Download for HornrespSica 15 S 4 PL 8Ω
LF DriverMedia
Auto-advancing
Overview
LF Driver
Sica
Sica 15 S 4 PL

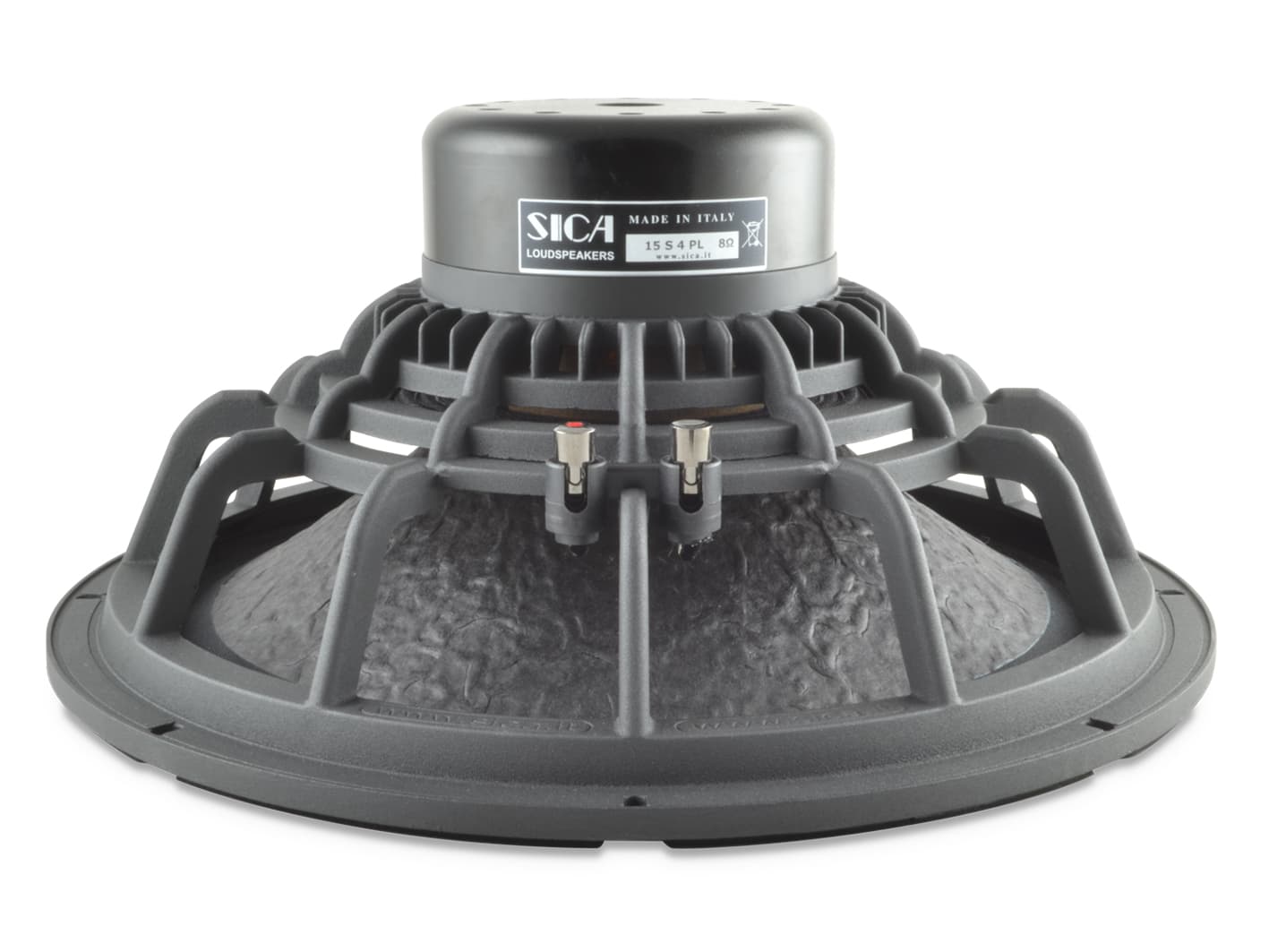

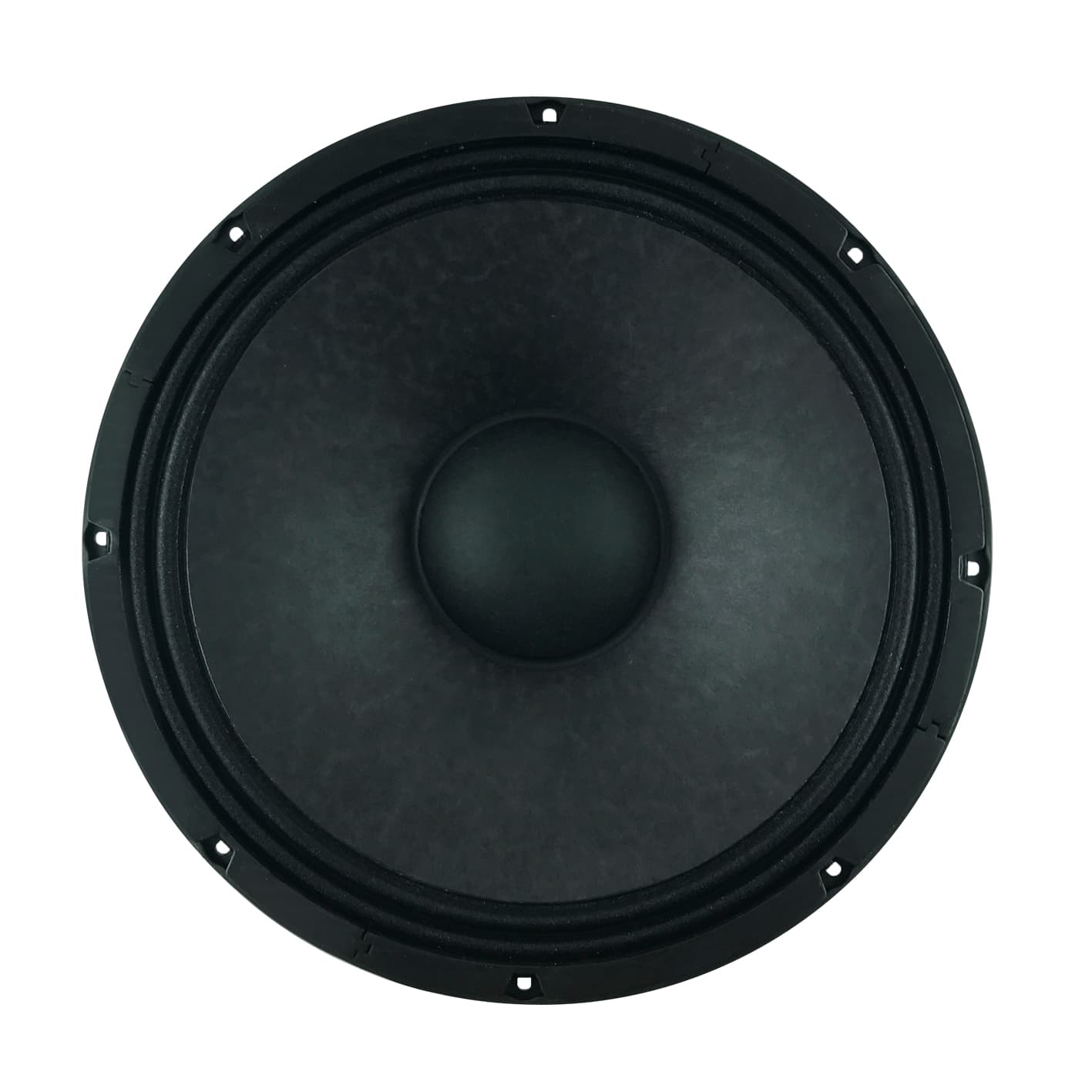

Sica 15 S 4 PL is a 15" 8 ohm LF driver rated at 1200W RMS. The validated T/S data includes Fs 40Hz, Qts 0.32, Vas 127.6L, Xmax 10mm, sensitivity 95.8dB, plus 855cm³ Vd and 120 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
1200W
Sensitivity
95.8dB
97.8dBmanufacturer; using T/S-derived value (2.0dB delta).
EBP
120
Vented alignment
Vd
855cm³
T/S Parameters
Valid
Fs40Hz
Qts0.32
Qes0.33
Qms15.9
Vas127.6L
Re5.1Ω
Le1.38mH
BL22.5Tm
Sd855cm²
Mms132g
Xmax10.0mm
SPL96dB
Power1200W
Impedance8Ω
Voice Coil100mm
Flux Density1.21T
Pricing & availability
Price definitionsNo standard offers found
Check the manufacturer website for current pricing.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight7.0kg
Diameter388.0mm
Overall Depth176.8mm
Cutout Diameter355.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Sica
15 S 4 PL
15"
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size. Pin a driver to open a side-by-side comparison.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
91%
Similarity
£229.00
Celestion
FTR15-4080HDX
15"
Xmax10.1mm+1%
Qts0.320%
BL23.1Tm+2%
Vas111.2L-13%
Qes0.36+8%
91%
Similarity
£270.47
Eighteen Sound
15LW2400
15"
Xmax10mm0%
Qts0.3-6%
BL24Tm+7%
Vas131L+3%
Qes0.32-3%
88%
Similarity
Oberton
15NXL701
15"
Xmax9.3mm-7%
Qts0.3-6%
BL21.7Tm-4%
Vas127.1L0%
Qes0.31-5%
85%
Similarity
£267.25
B&C
15NBX100
15"
Xmax10mm0%
Qts0.29-9%
BL25Tm+11%
Vas125L-2%
Qes0.31-6%
85%
Similarity
Celestion
CF1540HD
15"
Xmax10.5mm+5%
Qts0.3-5%
BL24.4Tm+8%
Vas108.3L-15%
Qes0.32-2%
85%
Similarity
Monacor
CF1540HD/8
15"
Xmax10.5mm+5%
Qts0.3-5%
BL24.4Tm+8%
Vas108.3L-15%
Qes0.32-2%
85%
Similarity
£494.86
B&C
15CXN88
15"
Xmax9.5mm-5%
Qts0.3-6%
BL20.1Tm-11%
Vas124L-3%
Qes0.31-6%
84%
Similarity
£173.91
SB Audience
ROSSO-15MW500
15"
Xmax8.4mm-16%
Qts0.33+3%
BL23.2Tm+3%
Vas121.3L-5%
Qes0.35+6%
84%
Similarity
£385.21
Eighteen Sound
15NLW9500
15"
Xmax9mm-10%
Qts0.320%
BL21.6Tm-4%
Vas163L+28%
Qes0.34+3%
83%
Similarity
£240.88
Sica
15 PF 3
15"
Xmax8mm-20%
Qts0.31-3%
BL21.9Tm-3%
Vas117.6L-8%
Qes0.330%
82%
Similarity
£172.04
SB Audience
ROSSO-15W400
15"
Xmax8.3mm-17%
Qts0.33+3%
BL21.5Tm-5%
Vas140.1L+10%
Qes0.34+3%
81%
Similarity
B&C
15NBX100
15"
Xmax10mm0%
Qts0.27-16%
BL22.7Tm+1%
Vas109.6L-14%
Qes0.3-9%
