B&C15CL76
£128.19 · 36% less, betterFs42 Hz +8%
Qts0.33 −6%
Vas135 L −4%
BL21 T·m –
Xmax7 mm −24%, worse
Sensitivity96.7 dB +1
15-inch LF driver · FH series · 500 W
FaitalPRO 15FH530 8Ω
8 Ω · 40–3150 Hz
£252.04
SteadySoundImports · 1 in stock · Ships from Netherlands · All 8 offers
- Fs
- 39Hz
- Xmax
- 9.3mm
- SPL
- 96dB
- Pe
- 500W
- BL
- 20.7T·m
- Vd
- 799cm³
- Qts
- 0.35
- Vas
- 141L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
221 plotted pointsMedium confidence941 selected pixels of 1,253 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,286 selected pixels of 1,286 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,371 selected pixels of 1,371

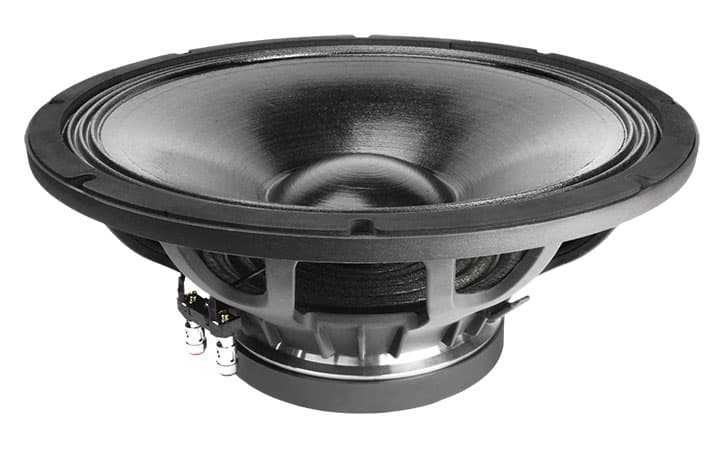

FaitalPRO 15FH530 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.35, Vas 140.6 L, Xmax 9.3 mm, sensitivity 95.7 dB, plus 799 cm³ Vd and 108 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £200.82.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.35
- Qes
- 0.36
- Qms
- 8.9
- Vas
- 140.6L
- Re
- 5.1Ω
- Le
- 1.10mH
Motor and cone
- BL
- 20.7T·m
- Sd
- 864cm²
- Mms
- 124g
- Xmax
- 9.3mm
- Vd †
- 799cm³
Power and response
- Sensitivity †
- 95.7dB
- Manufacturer sensitivity
- 97dB
- Power
- 500W
- Impedance
- 8Ω
- Range
- 40–3150Hz
- EBP †
- 108 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 180mm
- Weight
- 8.5kg
Other published values
- Cms
- 0.13mm/N
- Rms
- 3.40kg/s
- Power Program
- 1000
Sensitivity shows 95.7 dB, calculated from the T/S values. FaitalPRO publishes 97.0 dB, 1.3 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 15″
- BL
- 20.7T·m
- Fs
- 39Hz
- Le
- 1.10mH
- Re
- 5.1Ω
- Sd
- 864cm²
- Cms
- 0.13mm/N
- Mms
- 124g
- Qes
- 0.36
- Qms
- 8.9
- Qts
- 0.35
- Rms
- 3.40kg/s
- SPL
- 95.7dB
- Vas
- 140.6L
- Xmax
- 9.3mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 40Hz
- Power Program
- 1000
- Calculated sensitivity †
- 95.7dB
- High limit
- 3150Hz
- Manufacturer sensitivity
- 97dB
- Weight
- 8.5kg
- Diameter
- 393mm
- Depth
- 180mm
- Cutout
- 354mm
- Bolt circle
- 374mm
02
Compare
Same-size drivers, compared with the 15FH530. Clear differences are green when better and red when worse.
This driver15FH530
Best price
£200.82
Fs
39 Hz
Qts
0.35
Vas
140.6 L
BL
20.7 T·m
Xmax
9.3 mm
Sensitivity
95.7 dB
Power
500 W
SB AudienceROSSO-15W400
£134.56 · 33% less, betterFs44 Hz +13%, worse
Qts0.33 −6%
Vas140.1 L –
BL21.5 T·m +4%
Xmax8.3 mm −11%, worse
Sensitivity97.5 dB +1.8
FaitalPRO15HP1010
£161.93 · 19% less, betterFs40 Hz –
Qts0.37 +6%
Vas107.5 L −24%, better
BL22 T·m +6%
Xmax9.8 mm +5%
Sensitivity94.6 dB −1.1
SB AudienceROSSO-15MW500
£173.91 · 13% less, betterFs42 Hz +8%
Qts0.33 −6%
Vas121.3 L −14%, better
BL23.2 T·m +12%, better
Xmax8.4 mm −9%
Sensitivity96.1 dB –
REDCATT15FPM
£184.82 · 8% less, betterFs41 Hz +5%
Qts0.36 –
Vas134.9 L −4%
BL21.3 T·m –
Xmax4.5 mm −51%, worse
Sensitivity95.9 dB –
BMS15S330
£194.97 · 3% lessFs39 Hz –
Qts0.32 −9%
Vas152 L +8%
BL23 T·m +11%, better
Xmax8 mm −14%, worse
Sensitivity96.3 dB +0.6
Beyma15MCB700
£208.56 · 4% moreFs44 Hz +13%, worse
Qts0.34 –
Vas148 L +5%
BL20 T·m −3%
Xmax7 mm −24%, worse
Sensitivity97.5 dB +1.8
BMS15N620
£216.43 · 8% more, worseFs41 Hz +5%
Qts0.35 –
Vas154 L +10%
BL20.6 T·m –
Xmax5.5 mm −41%, worse
Sensitivity96.6 dB +0.9
B&C15NDL88
£226.03 · 13% more, worseFs45 Hz +15%, worse
Qts0.34 –
Vas126 L −10%, better
BL20.1 T·m –
Xmax8 mm −14%, worse
Sensitivity97.1 dB +1.4
Eighteen Sound15NW530
£243.16 · 21% more, worseFs43 Hz +10%, worse
Qts0.33 −6%
Vas154 L +10%
BL22 T·m +6%
Xmax7.5 mm −19%, worse
Sensitivity97.5 dB +1.8
FaitalPRO15FX560
£245.00 · 22% more, worseFs38 Hz –
Qts0.30 −14%, better
Vas159 L +13%, worse
BL21.5 T·m +4%
Xmax9.4 mm –
Sensitivity96.5 dB +0.8
BMS15C262
£254.59 · 27% more, worseFs43 Hz +9%
Qts0.34 –
Vas138 L –
BL20.6 T·m –
Xmax2.5 mm −73%, worse
Sensitivity96.7 dB +1
Eighteen Sound15LW1410
£254.65 · 27% more, worseFs47 Hz +21%, worse
Qts0.34 –
Vas90.4 L −36%, better
BL24.1 T·m +16%, better
Xmax8.8 mm −5%
Sensitivity96.3 dB +0.6
Beyma15LEX1000ND
£293.28 · 46% more, worseFs41 Hz +5%
Qts0.37 +6%
Vas113 L −20%, better
BL21.9 T·m +6%
Xmax10 mm +8%
Sensitivity94.8 dB −0.9
Sica15 S 4 PL
£301.66 · 50% more, worseFs40 Hz –
Qts0.32 −9%
Vas127.6 L −9%
BL22.5 T·m +9%
Xmax10 mm +8%
Sensitivity95.8 dB –
Eighteen Sound15NTLW3500
£318.15 · 58% more, worseFs45 Hz +15%, worse
Qts0.39 +11%, worse
Vas131 L −7%
BL19.5 T·m −6%
Xmax8.3 mm −10%, worse
Sensitivity96.8 dB +1.1
Eighteen Sound15NLW9500
£378.12 · 88% more, worseFs35 Hz −10%, better
Qts0.32 −9%
Vas163 L +16%, worse
BL21.6 T·m +4%
Xmax9 mm –
Sensitivity95.2 dB −0.5
BMS15CN682
£384.52 · 91% more, worseFs41 Hz +4%
Qts0.36 –
Vas137 L –
BL20.6 T·m –
Xmax5.5 mm −41%, worse
Sensitivity95.9 dB –
B&C15CXN88
£494.86 · 146% more, worseFs47 Hz +21%, worse
Qts0.30 −14%, better
Vas124 L −12%, better
BL20.1 T·m –
Xmax9.5 mm –
Sensitivity98.2 dB +2.5, better
Sica15 PNS 4
No current priceFs37 Hz −4%
Qts0.35 –
Vas116.3 L −17%, better
BL22.7 T·m +10%
Xmax9 mm –
Sensitivity94 dB −1.7
Sica15 N 3 PL
No current priceFs47 Hz +20%, worse
Qts0.37 +6%
Vas140.4 L –
BL18.4 T·m −11%, worse
Xmax10 mm +8%
Sensitivity98 dB +2.3, better
Oberton15NCX
No current priceFs44 Hz +12%, worse
Qts0.36 –
Vas138.4 L –
BL18.6 T·m −10%, worse
Xmax7.8 mm −16%, worse
Sensitivity96.9 dB +1.2
Oberton15HCX3572
No current priceFs46 Hz +19%, worse
Qts0.34 –
Vas140.7 L –
BL18.8 T·m −9%
Xmax7.3 mm −22%, worse
Sensitivity98 dB +2.3, better
Eighteen Sound15ND840
No current priceFs43 Hz +10%, worse
Qts0.37 +6%
Vas163 L +16%, worse
BL17.9 T·m −14%, worse
Xmax9.5 mm –
Sensitivity97.2 dB +1.5
Oberton15NXL701
No current priceFs43 Hz +11%, worse
Qts0.30 −14%, better
Vas127.1 L −10%
BL21.7 T·m +5%
Xmax9.3 mm –
Sensitivity97.3 dB +1.6
P.Audio15FT-76MB
No current priceFs42 Hz +8%
Qts0.35 –
Vas150.9 L +7%
BL20.4 T·m –
Xmax4.7 mm −49%, worse
Sensitivity96.8 dB +1.1
Oberton15MB500
No current priceFs42 Hz +6%
Qts0.34 −3%
Vas161.5 L +15%, worse
BL18.5 T·m −10%, worse
Xmax7.8 mm −16%, worse
Sensitivity97.2 dB +1.5
BMS15CN680
No current priceFs41 Hz +4%
Qts0.36 –
Vas137 L –
BL20.6 T·m –
Xmax5.5 mm −41%, worse
Sensitivity95.9 dB –
CelestionFTR15-4080HDX
No current priceFs40 Hz –
Qts0.32 −9%
Vas111.2 L −21%, better
BL23.1 T·m +11%, better
Xmax10.1 mm +9%
Sensitivity95 dB −0.7
LavoceNBASS15-30
No current priceFs42 Hz +8%
Qts0.36 –
Vas143.1 L –
BL19.2 T·m −7%
Xmax6.6 mm −29%, worse
Sensitivity96.5 dB +0.8
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
SoundImports Import VAT and duty may apply | £252.04, the lowest price | 1 in stock | Visit shop at SoundImports | |
Blue Aran 9-11 weeks | £205.75 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £205.75 | Back order | Visit shop at Lean Audio | |
Lean Business | £205.75 | Out of stock | Visit shop at Lean Business | |
Audio Video Parts Import VAT and duty may apply | £210.07 | Special order | Visit shop at Audio Video Parts |
Best price over time
Tracked since 1 Apr
