15-inch LF driver · 15NXB series · 1,200 W

Oberton 15NXB1201 8Ω

Name: Oberton 15NXB1201 8 Ohm
Brand: Oberton
SKU: 15NXB1201

8 Ω · 38–1000 Hz

No current price

View offers

Open in 00 Simulator

Fs: 38Hz
Xmax: 12mm
SPL: 95dB
Pe: 1200W
BL: 23.6T·m
Vd: 996cm³
Qts: 0.32
Vas: 112L

See all 27 specs

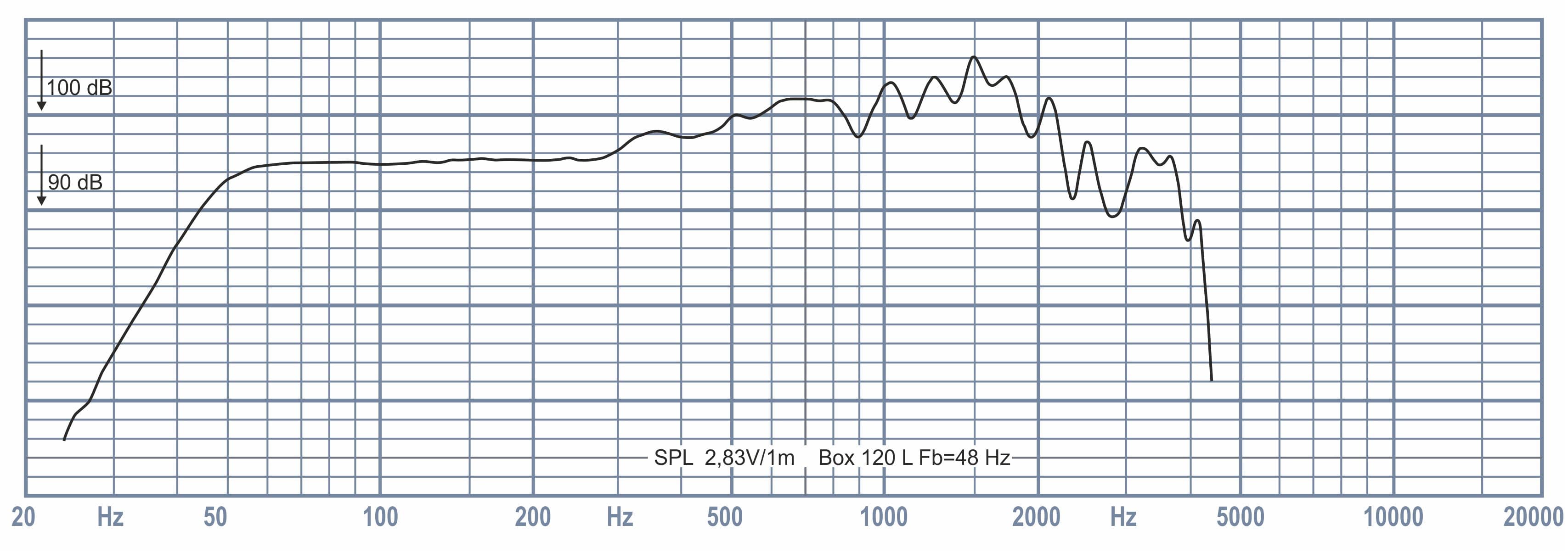

Published graphs

Specifications

Published by Oberton

Manufacturer page

Datasheet PDF

Oberton 15NXB1201 is a 15-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.32, Vas 111.9 L, Xmax 12 mm, sensitivity 94.8 dB, plus 996 cm³ Vd and 114 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.

The published T/S values agree with each other

Thiele/Small

Fs: 38Hz
Qts: 0.32
Qes: 0.34
Qms: 8.3
Vas: 111.9L
Re: 5.3Ω
Le: 0.71mH

Motor and cone

BL: 23.6T·m
Sd: 830cm²
Mms: 147g
Xmax: 12mm
Vd †: 996cm³
Flux density: 1.27T

Power and response

Sensitivity †: 94.8dB
Manufacturer sensitivity: 97dB
Power: 1200W
Impedance: 8Ω
Min. impedance: 6.5Ω
Range: 38–1000Hz
EBP †: 114 · Leans vented

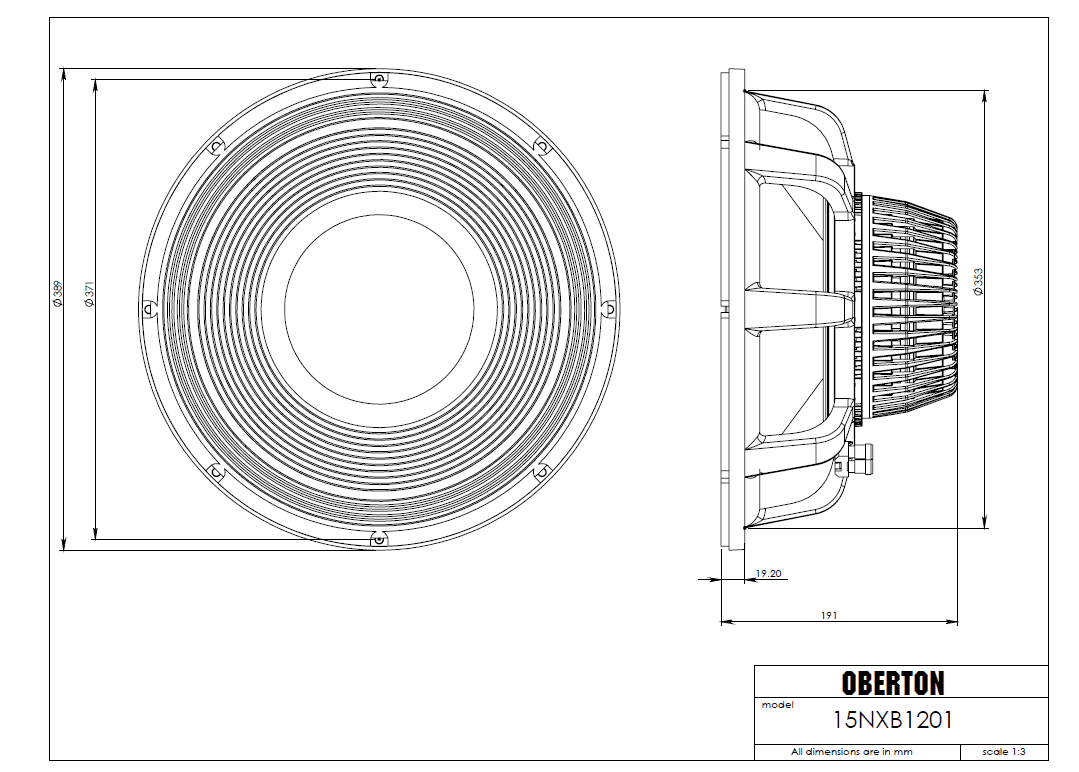

Size and mounting

Diameter: 389mm
Cutout: 353mm
Bolt circle: 371mm
Depth: 191mm
Weight: 8.8kg

Other published values

Cms: 0.12mm/N
Power Program: 2400

Sensitivity shows 94.8 dB, calculated from the T/S values. Oberton publishes 97.0 dB, 2.2 dB apart.

† Calculated by bits from the published values

What this validation status means

Everything else Oberton lists

LF · Primary · 15″

BL: 23.6T·m
Fs: 38Hz
Le: 0.71mH
Re: 5.3Ω
Sd: 830cm²
Cms: 0.12mm/N
Mms: 147g
Qes: 0.34
Qms: 8.3
Qts: 0.32
SPL: 94.8dB
Vas: 111.9L
Xmax: 12mm
Power: 1200W
Impedance: 8Ω
Flux density: 1.27T
Sensitivity: 97dB
Low limit: 38Hz
Power Program: 2400
Calculated sensitivity †: 94.8dB
High limit: 1000Hz
Manufacturer sensitivity: 97dB
Min. impedance: 6.5Ω
Weight: 8.8kg
Diameter: 389mm
Depth: 191mm
Cutout: 353mm
Bolt circle: 371mm

Compare

Same-size drivers, compared with the 15NXB1201. Clear differences are green when better and red when worse.

This driver15NXB1201

Best price

–

38 Hz

Qts

0.32

Vas

111.9 L

23.6 T·m

Xmax

12 mm

Sensitivity

94.8 dB

Power

1200 W

SB AudienceROSSO-15MW500

£173.91

Fs42 Hz +9%

Qts0.33 –

Vas121.3 L +8%

BL23.2 T·m –

Xmax8.4 mm −30%

Sensitivity96.1 dB +1.3

CelestionCF1540HD

£175.00

Fs41 Hz +6%

Qts0.30 −6%

Vas108.3 L −3%

BL24.4 T·m +3%

Xmax10.5 mm −13%

Sensitivity95.6 dB +0.8

Beyma15LEX1000FE

£210.85

Fs41 Hz +7%

Qts0.34 +5%

Vas116 L +4%

BL23.2 T·m –

Xmax11 mm −8%

Sensitivity95.4 dB +0.6

Beyma15MC700ND

£226.76

Fs49 Hz +27%

Qts0.31 −4%

Vas105 L −6%

BL22.6 T·m −4%

Xmax7 mm −42%

Sensitivity97.6 dB +2.8

Sica15 PF 3

£234.41

Fs45 Hz +17%

Qts0.31 −4%

Vas117.6 L +5%

BL21.9 T·m −7%

Xmax8 mm −33%

Sensitivity97.1 dB +2.3

B&C15TBW100

£246.65

Fs39 Hz –

Qts0.31 −4%

Vas96 L −14%

BL26.4 T·m +12%

Xmax12 mm –

Sensitivity94.4 dB –

EminenceLAB 15

£256.16

Fs28 Hz −27%

Qts0.35 +8%

Vas103.6 L −7%

BL26.7 T·m +13%

Xmax11.8 mm –

Sensitivity89.9 dB −4.9

Eighteen Sound15LW2400

£262.08

Fs40 Hz +4%

Qts0.30 −7%

Vas131 L +17%

BL24 T·m –

Xmax10 mm −17%

Sensitivity96.2 dB +1.4

FaitalPRO15HP1030

£263.75

Fs40 Hz +4%

Qts0.34 +5%

Vas95 L −15%

BL24.3 T·m –

Xmax12.4 mm +4%

Sensitivity94.4 dB –

Beyma15LEX1600FE

£276.10

Fs38 Hz –

Qts0.33 –

Vas106 L −5%

BL25.8 T·m +9%

Xmax13 mm +8%

Sensitivity94.4 dB –

FaitalPRO15HP1060

£287.20

Fs40 Hz +4%

Qts0.31 −4%

Vas100.3 L −10%

BL24.8 T·m +5%

Xmax12.4 mm +4%

Sensitivity95.1 dB –

Sica15 S 4 PL

£300.59

Fs40 Hz –

Qts0.32 –

Vas127.6 L +14%

BL22.5 T·m −5%

Xmax10 mm −17%

Sensitivity95.8 dB +1

Dayton AudioRSS390HO-4

£301.43

Fs22 Hz −44%

Qts0.32 –

Vas168 L +50%

BL19.8 T·m −16%

Xmax12 mm –

Sensitivity88.8 dB −6

SB AudienceNERO-15SW800

£309.76

Fs31 Hz −19%

Qts0.34 +5%

Vas137 L +22%

BL24.4 T·m +3%

Xmax14.3 mm +19%

Sensitivity92.6 dB −2.2

B&C15SW100

£317.34

Fs37 Hz −4%

Qts0.31 −4%

Vas110 L –

BL25.6 T·m +8%

Xmax12.5 mm +4%

Sensitivity94.2 dB −0.6

Beyma15LEX1200ND

£320.84

Fs36 Hz −6%

Qts0.30 −7%

Vas127 L +13%

BL26.4 T·m +12%

Xmax11 mm −8%

Sensitivity94.7 dB –

BMS15N840

£360.08

Fs36 Hz −8%

Qts0.30 −7%

Vas145.7 L +30%

BL24.6 T·m +4%

Xmax11 mm −8%

Sensitivity95.2 dB –

FaitalPRO15XL1400

£367.58

Fs38 Hz –

Qts0.33 –

Vas91.2 L −19%

BL26.7 T·m +13%

Xmax12.9 mm +8%

Sensitivity93.7 dB −1.1

Eighteen Sound15NCX910

£497.18

Fs55 Hz +43%

Qts0.33 –

Vas107 L −4%

BL21 T·m −11%

Xmax7 mm −42%

Sensitivity99.2 dB +4.4

Oberton15XB1200

No current price

Fs40 Hz +3%

Qts0.31 −5%

Vas108.5 L −3%

BL23.9 T·m –

Xmax12 mm –

Sensitivity95.3 dB +0.5

Oberton15XB1201

No current price

Fs40 Hz +3%

Qts0.31 −5%

Vas108.5 L −3%

BL23.9 T·m –

Xmax12 mm –

Sensitivity95.3 dB +0.5

CelestionFTR15-4080HDX

No current price

Fs40 Hz +4%

Qts0.32 –

Vas111.2 L –

BL23.1 T·m –

Xmax10.1 mm −16%

Sensitivity95 dB –

P.Audio15FT-115XB

No current price

Fs35 Hz −9%

Qts0.33 –

Vas103.8 L −7%

BL26.8 T·m +13%

Xmax9.5 mm −21%

Sensitivity93.2 dB −1.6

BMS15N850V2

No current price

Fs36 Hz −8%

Qts0.30 −7%

Vas145.7 L +30%

BL24.6 T·m +4%

Xmax11 mm −8%

Sensitivity95.2 dB –

CIARECSD154-22

No current price

Fs31 Hz −19%

Qts0.33 –

Vas129 L +15%

BL18.4 T·m −22%

Xmax13 mm +8%

Sensitivity92.4 dB −2.4

RCFMB15X351

No current price

Fs46 Hz +20%

Qts0.31 −4%

Vas114 L –

BL22.8 T·m −3%

Xmax7 mm −42%

Sensitivity97.3 dB +2.5

Eighteen Sound15NCX910BE

No current price

Fs55 Hz +43%

Qts0.33 –

Vas107 L −4%

BL21 T·m −11%

Xmax7 mm −42%

Sensitivity99.2 dB +4.4

Eighteen Sound15NCX910N

No current price

Fs55 Hz +43%

Qts0.33 –

Vas107 L −4%

BL21 T·m −11%

Xmax7 mm −42%

Sensitivity99.2 dB +4.4

PeerlessNCP-1540R01-08

No current price

Fs54 Hz +40%

Qts0.32 –

Vas86.5 L −23%

BL23.9 T·m –

Xmax8.2 mm −32%

Sensitivity98.2 dB +3.4

P.AudioP150/2227

No current price

Fs45 Hz +17%

Qts0.34 +5%

Vas117.9 L +5%

BL22.5 T·m −5%

Xmax5.5 mm −54%

Sensitivity96.9 dB +2.1
