B&C15TBX100
£221.05 · 22% less, betterFs35 Hz −8%
Qts0.28 +4%
Vas113 L −12%, better
BL25.5 T·m +10%
Xmax9 mm −20%, worse
Sensitivity94.1 dB −1.9
15-inch LF driver · FX series · 700 W
FaitalPRO 15FX600 8Ω
8 Ω · 40–3150 Hz
No price for delivery to the UK
- Fs
- 38Hz
- Xmax
- 11.3mm
- SPL
- 96dB
- Pe
- 700W
- BL
- 23.2T·m
- Vd
- 972cm³
- Qts
- 0.27
- Vas
- 128L
Manufacturer response and impedance data, with source and trace details below. The left and right arrow keys read every shown curve at a frequency, a twelfth of an octave at a time, or an octave with Shift. Escape clears the reading.
Curve provenanceInspect 3 traces
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
0 degrees
Frequency response
240 plotted pointsMedium confidence1,092 selected pixels of 1,373 - Trace datasheet-response-trace-poc/v1
45 degrees
Frequency response
240 plotted pointsMedium confidence1,595 selected pixels of 1,595 - Trace datasheet-response-trace-poc/v1
impedance
Impedance response
240 plotted pointsMedium confidence1,474 selected pixels of 1,474

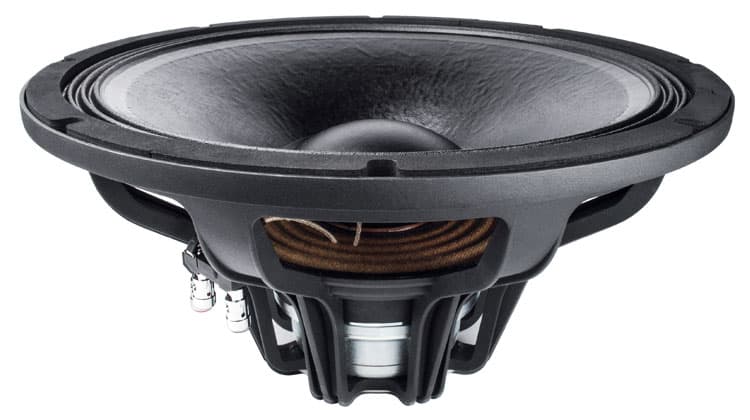

FaitalPRO 15FX600 is a 15-inch 8 ohm LF driver rated at 700 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.27, Vas 128.3 L, Xmax 11.3 mm, sensitivity 96 dB, plus 972 cm³ Vd and 136 EBP. bits tracks UK, EU and US shop prices, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £283.85.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.27
- Qes
- 0.28
- Qms
- 6.9
- Vas
- 128.3L
- Re
- 5Ω
- Le
- 1.26mH
Motor and cone
- BL
- 23.2T·m
- Sd
- 864cm²
- Mms
- 143g
- Xmax
- 11.3mm
- Vd †
- 972cm³
Power and response
- Sensitivity †
- 96dB
- Manufacturer sensitivity
- 98dB
- Power
- 700W
- Impedance
- 8Ω
- Range
- 40–3150Hz
- EBP †
- 136 · Leans vented
Size and mounting
- Diameter
- 393mm
- Cutout
- 354mm
- Bolt circle
- 374mm
- Depth
- 194.3mm
- Weight
- 5.9kg
Other published values
- Cms
- 0.12mm/N
- Rms
- 4.90kg/s
- Power Program
- 1400
Sensitivity shows 96.0 dB, calculated from the T/S values. FaitalPRO publishes 98.0 dB, 2.0 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else FaitalPRO lists
LF · Primary · 15″
- BL
- 23.2T·m
- Fs
- 38Hz
- Le
- 1.26mH
- Re
- 5Ω
- Sd
- 864cm²
- Cms
- 0.12mm/N
- Mms
- 143g
- Qes
- 0.28
- Qms
- 6.9
- Qts
- 0.27
- Rms
- 4.90kg/s
- SPL
- 96dB
- Vas
- 128.3L
- Xmax
- 11.3mm
- Power
- 700W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 40Hz
- Power Program
- 1400
- Calculated sensitivity †
- 96dB
- High limit
- 3150Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 5.9kg
- Diameter
- 393mm
- Depth
- 194.3mm
- Cutout
- 354mm
- Bolt circle
- 374mm
02
Compare
Same-size drivers, compared with the 15FX600. Clear differences are green when better and red when worse.
This driver15FX600
Best price
£283.85
Fs
38 Hz
Qts
0.27
Vas
128.3 L
BL
23.2 T·m
Xmax
11.3 mm
Sensitivity
96 dB
Power
700 W
RCFLF15G401
£238.26 · 16% less, betterFs36 Hz −5%
Qts0.26 −4%
Vas150 L +17%, worse
BL24.6 T·m +6%
Xmax9 mm −20%, worse
Sensitivity96.2 dB –
RCFLF15X401
£240.00 · 15% less, betterFs34 Hz −11%, better
Qts0.29 +7%
Vas146 L +14%, worse
BL26.5 T·m +14%, better
Xmax12 mm +7%
Sensitivity94.8 dB −1.2
Oberton15XB1000
£250.00 · 12% less, betterFs37 Hz –
Qts0.28 +5%
Vas111.0 L −13%, better
BL25.6 T·m +11%, better
Xmax9 mm −20%, worse
Sensitivity94.9 dB −1.1
Eighteen Sound15ND940
£253.20 · 11% less, betterFs38 Hz –
Qts0.28 +4%
Vas174 L +36%, worse
BL21.9 T·m −6%
Xmax9.5 mm −16%, worse
Sensitivity97.2 dB +1.2
Eighteen Sound15LW1401
£254.65 · 10% less, betterFs42 Hz +11%, worse
Qts0.27 –
Vas131 L –
BL24.2 T·m +4%
Xmax9 mm −20%, worse
Sensitivity97.4 dB +1.4
Eighteen Sound15LW2400
£262.08 · 8% less, betterFs40 Hz +5%
Qts0.30 +11%, worse
Vas131 L –
BL24 T·m +3%
Xmax10 mm −11%, worse
Sensitivity96.2 dB –
FaitalPRO15HP1020
£263.08 · 7% less, betterFs40 Hz +5%
Qts0.27 –
Vas126.6 L –
BL24.2 T·m +4%
Xmax9 mm −20%, worse
Sensitivity96.6 dB +0.6
B&C15NBX100
£267.25 · 6% less, betterFs36 Hz −5%
Qts0.29 +7%
Vas125 L –
BL25 T·m +8%
Xmax10 mm −11%, worse
Sensitivity94.8 dB −1.2
Eighteen Sound15NLW9401
£288.50 · 2% moreFs39 Hz –
Qts0.26 −4%
Vas134 L +4%
BL25.4 T·m +9%
Xmax10 mm −11%, worse
Sensitivity96.6 dB +0.6
B&C15NA100
£299.76 · 6% more, worseFs47 Hz +24%, worse
Qts0.28 +4%
Vas88 L −31%, better
BL26.3 T·m +13%, better
Xmax10 mm −11%, worse
Sensitivity97 dB +1
BMS15S435
£317.34 · 12% more, worseFs38 Hz –
Qts0.28 +4%
Vas129 L –
BL24.4 T·m +5%
Xmax8 mm −29%, worse
Sensitivity95.9 dB –
Beyma15LEX1200ND
£320.84 · 13% more, worseFs36 Hz −5%
Qts0.30 +11%, worse
Vas127 L –
BL26.4 T·m +14%, better
Xmax11 mm –
Sensitivity94.7 dB −1.3
BMS15N840
£360.08 · 27% more, worseFs36 Hz −6%
Qts0.30 +11%, worse
Vas145.7 L +14%, worse
BL24.6 T·m +6%
Xmax11 mm –
Sensitivity95.2 dB −0.8
FaitalPRO15HX500
£426.19 · 50% more, worseFs40 Hz +5%
Qts0.28 +4%
Vas150.1 L +17%, worse
BL22.2 T·m −4%
Xmax9.4 mm −16%, worse
Sensitivity97.2 dB +1.2
No photo
PHL Audio6201MND
No current priceFs36 Hz −5%
Qts0.27 –
Vas140 L +9%
BL25 T·m +8%
Xmax10.5 mm −7%
Sensitivity95.6 dB –
No photo
PHL Audio6301MND
No current priceFs36 Hz −5%
Qts0.26 −4%
Vas140 L +9%
BL25.5 T·m +10%
Xmax10.5 mm −7%
Sensitivity95.7 dB –
RCFMB15N405
No current priceFs46 Hz +21%, worse
Qts0.27 –
Vas124 L −3%
BL23.5 T·m –
Xmax7 mm −38%, worse
Sensitivity98.4 dB +2.4, better
Oberton15XL700
No current priceFs45 Hz +19%, worse
Qts0.28 +4%
Vas117.0 L −9%
BL23.1 T·m –
Xmax8.8 mm −22%, worse
Sensitivity97.8 dB +1.8
Oberton15XL701
No current priceFs45 Hz +19%, worse
Qts0.28 +4%
Vas117.0 L −9%
BL23.1 T·m –
Xmax8.8 mm −22%, worse
Sensitivity97.8 dB +1.8
No current price
Fs45 Hz +18%, worse
Qts0.27 –
Vas127 L –
BL24.5 T·m +6%
Xmax7.5 mm −33%, worse
Sensitivity98 dB +2, better
BMS15N850V2
No current priceFs36 Hz −6%
Qts0.30 +11%, worse
Vas145.7 L +14%, worse
BL24.6 T·m +6%
Xmax11 mm –
Sensitivity95.2 dB −0.8
Oberton15B500
No current priceFs38 Hz –
Qts0.27 –
Vas145.8 L +14%, worse
BL22.9 T·m –
Xmax7.3 mm −36%, worse
Sensitivity96.8 dB +0.8
No photo
PHL Audio5241MNDU-7
No current priceFs45 Hz +18%, worse
Qts0.26 −4%
Vas120.5 L −6%
BL24.3 T·m +5%
Xmax7.5 mm −33%, worse
Sensitivity98 dB +2, better
Oberton15MB701
No current priceFs44 Hz +16%, worse
Qts0.27 –
Vas100.2 L −22%, better
BL26.1 T·m +12%, better
Xmax9.3 mm −18%, worse
Sensitivity97 dB +1
Oberton15XB700
No current priceFs37 Hz –
Qts0.28 +5%
Vas111.0 L −13%, better
BL25.6 T·m +11%, better
Xmax9 mm −20%, worse
Sensitivity94.9 dB −1.1
Oberton15XB1200
No current priceFs40 Hz +5%
Qts0.31 +14%, worse
Vas108.5 L −15%, better
BL23.9 T·m +3%
Xmax12 mm +7%
Sensitivity95.3 dB −0.7
Oberton15XB1201
No current priceFs40 Hz +5%
Qts0.31 +14%, worse
Vas108.5 L −15%, better
BL23.9 T·m +3%
Xmax12 mm +7%
Sensitivity95.3 dB −0.7
RCFCX15N351
No current priceFs55 Hz +45%, worse
Qts0.26 −4%
Vas110 L −14%, better
BL23.5 T·m –
Xmax6 mm −47%, worse
Sensitivity100.3 dB +4.3, better
Oberton15NXL701
No current priceFs43 Hz +14%, worse
Qts0.30 +11%, worse
Vas127.1 L –
BL21.7 T·m −6%
Xmax9.3 mm −18%, worse
Sensitivity97.3 dB +1.3
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
| Shop | Price | Against the lowest | Stock | Link |
|---|---|---|---|---|
Blue Aran 9-11 weeks | £277.72 | Usually available in 9-11 weeks | Visit shop at Blue Aran | |
Lean Audio | £277.72 | Back order | Visit shop at Lean Audio | |
Audio Video Parts Import VAT and duty may apply | £256.00 | Special order | Visit shop at Audio Video Parts |
