Overview
LF Driver
Eighteen Sound
Eighteen Sound 15NCX1000
Eighteen Sound 15NCX1000 is a 15" 8 ohm LF driver. The validated T/S data includes Fs 53Hz, Qts 0.31, Vas 75L, Xmax 7.5mm, sensitivity 97.5dB, plus 661cm³ Vd and 166 EBP. bits tracks UK vendor pricing, price movement, datasheet links, simulator import data, and similar drivers, with a current best price of £799.87.
Size
15"
Impedance
8Ω
Sensitivity
97.5dB
EBP
166
Vented alignment
Vd
661cm³
Datasheet traces
Frequency and impedance curves traced from the manufacturer PDF.
frequency response240 ptsp2medium
Curve provenanceInspect 2 tracesHide details
These plotted lines are Bits digitizations of manufacturer evidence, not new measurements. How provenance works
- Trace datasheet-response-trace-poc/v1
frequency response

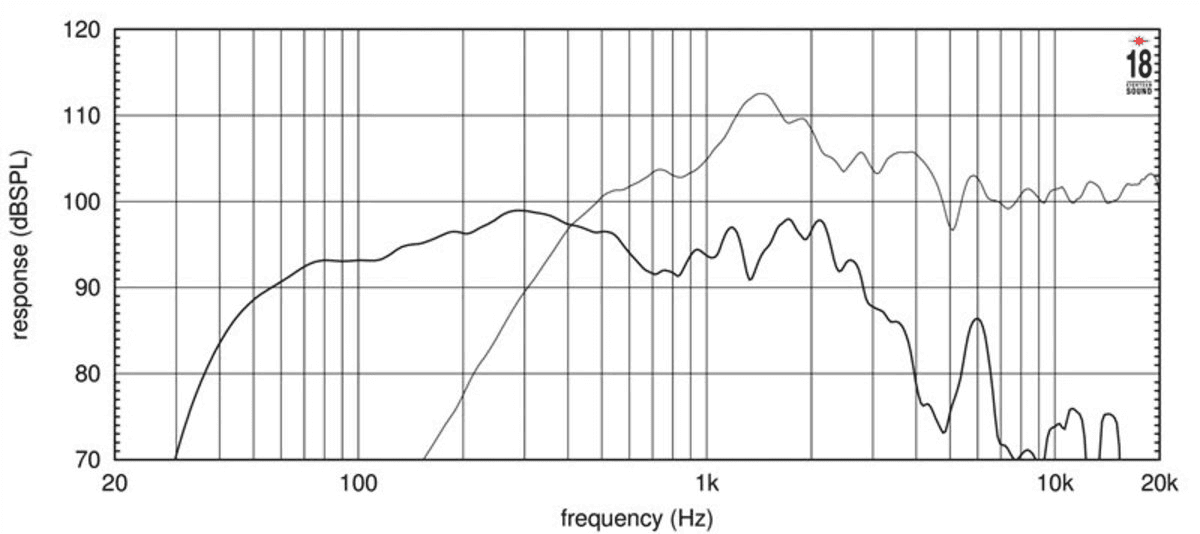

Frequency response
240 plotted pointsMedium confidence2,065 selected pixels of 2,238 - Trace datasheet-response-trace-poc/v1
impedance

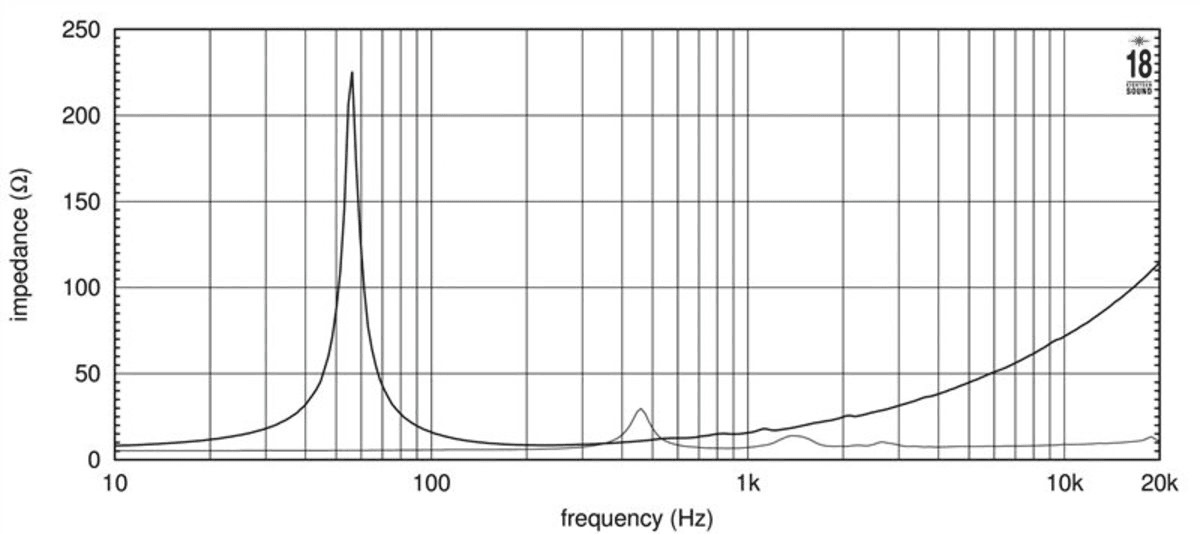

Impedance response
240 plotted pointsMedium confidence1,904 selected pixels of 2,047
T/S Parameters
Valid
Fs53Hz
Qts0.31
Qes0.32
Qms10.4
Vas75.0L
Re6.3Ω
Le1.40mH
BL27.5Tm
Sd881cm²
Mms110g
Xmax7.5mm
SPL98dB
Impedance8Ω
F Low44Hz
F High3600Hz
Pricing & availability
Price definitionsPrice movement
Best current price
£799.87
inc VAT·Vendor hidden
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Not enough T/S data
Missing RMS power
BASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Not enough T/S data
Missing RMS power
VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Not enough T/S data
Missing RMS power
00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.
Dimensions & Physical
Weight8.5kg
Diameter393.0mm
Overall Depth197.0mm
Cutout Diameter354.0mm
Bolt Circle Diameter371.0mm
Similar Drivers
Size stays fixed. Tune the T/S ranges to change what counts as a match, or add a specific driver to compare it directly.
Reference
Eighteen Sound
15NCX1000
15"
Best current price
£799.87
Compare on
Matches sit inside every range. Size stays fixed automatically.
5 active T/S params, plus size.
12 matches
Compare a specific driver
Added drivers stay at the front of the list, whatever the ranges say.
42%
Similarity
80% cheaper£161.93
FaitalPRO
15HP1010
15"
Lower price
Xmax9.8mm+30%
Qts0.37+19%
BL22Tm-20%
Vas107.5L+43%
Qes0.38+19%
74%
Similarity
75% cheaper£199.99
B&C
15PZB100
15"
Lower price
Xmax8mm+7%
Qts0.29-6%
BL25.8Tm-6%
Vas110L+47%
Qes0.3-6%
63%
Similarity
71% cheaper£228.26
B&C
15TBX100
15"
Lower price
Xmax9mm+20%
Qts0.28-10%
BL25.5Tm-7%
Vas113L+51%
Qes0.3-6%
60%
Similarity
71% cheaper£229.73
Beyma
14MC700ND
14"
Lower price
Xmax7mm-7%
Qts0.28-10%
BL22Tm-20%
Vas78L+4%
Qes0.3-6%
72%
Similarity
70% cheaper£238.26
RCF
MB15X351
15"
Lower price
Xmax7mm-7%
Qts0.310%
BL22.8Tm-17%
Vas114L+52%
Qes0.33+3%
63%
Similarity
69% cheaper£250.00
Oberton
15XB1000
15"
Lower price
Xmax9mm+20%
Qts0.28-9%
BL25.6Tm-7%
Vas111L+48%
Qes0.29-9%
52%
Similarity
43% cheaper£453.72
RCF
CX15N351
15"
Lower price
Xmax6mm-20%
Qts0.26-16%
BL23.5Tm-15%
Vas110L+47%
Qes0.27-16%
66%
Similarity
38% cheaper£497.18
Eighteen Sound
15NCX910
15"
Lower price
Xmax7mm-7%
Qts0.33+6%
BL21Tm-24%
Vas107L+43%
Qes0.34+6%
91%
Similarity
Beyma
115P10FEV28
15"
Xmax8mm+7%
Qts0.3-3%
BL27.4Tm0%
Vas80.7L+8%
Qes0.31-3%
81%
Similarity
Peerless
NCP-1540R01-08
15"
Xmax8.2mm+9%
Qts0.32+3%
BL23.9Tm-13%
Vas86.5L+15%
Qes0.33+3%
77%
Similarity
Sica
15 K 4 PL
15"
Xmax8mm+7%
Qts0.3-3%
BL23.9Tm-13%
Vas102.3L+36%
Qes0.31-3%
72%
Similarity
Sica
15 F 4 CP
15"
Xmax7mm-7%
Qts0.27-13%
BL26Tm-5%
Vas97L+29%
Qes0.28-12%
