BMS 15S430V2 8Ω
8 Ω · 35–2500 Hz
No price for delivery to the UK
- Fs
- 40Hz
- Xmax
- 7.5mm
- SPL
- 97dB
- Pe
- 1200W
- BL
- 25.0T·m
- Vd
- 673cm³
- Qts
- 0.26
- Vas
- 135L

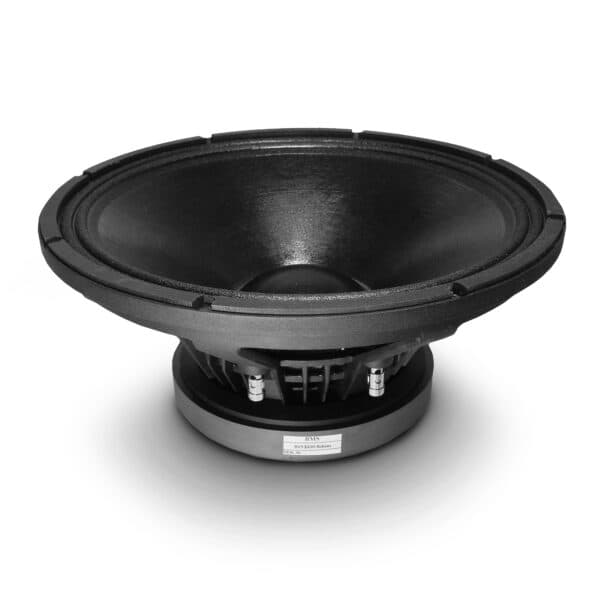

BMS 15S430V2 is a 15-inch 8 ohm LF driver rated at 1200 W RMS. The validated T/S data includes Fs 40 Hz, Qts 0.26, Vas 135 L, Xmax 7.5 mm, sensitivity 97 dB, plus 673 cm³ Vd and 147 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 40Hz
- Qts
- 0.26
- Qes
- 0.27
- Qms
- 6.6
- Vas
- 135L
- Re
- 5Ω
- Le
- 0.73mH
Motor and cone
- BL
- 25.0T·m
- Sd
- 897cm²
- Mms
- 132g
- Xmax
- 7.5mm
- Vd †
- 673cm³
- Voice coil
- 102mm
Power and response
- Sensitivity †
- 97dB
- Manufacturer sensitivity
- 97dB
- Power
- 1200W
- Impedance
- 8Ω
- Range
- 35–2500Hz
- EBP †
- 147 · Leans vented
Size and mounting
- Diameter
- 388mm
- Cutout
- 358mm
- Bolt circle
- 371mm
- Depth
- 189mm
- Weight
- 10.7kg
Other published values
- Cms
- 0.12mm/N
† Calculated by bits from the published values
What this validation status means
Everything else BMS lists
LF
- BL
- 25.0T·m
- Fs
- 40Hz
- Le
- 0.73mH
- Re
- 5Ω
- Sd
- 897cm²
- Cms
- 0.12mm/N
- Mms
- 132g
- Qes
- 0.27
- Qms
- 6.6
- Qts
- 0.26
- SPL
- 97dB
- Vas
- 135L
- Xmax
- 7.5mm
- Power
- 1200W
- Impedance
- 8Ω
- Sensitivity
- 97dB
- Low limit
- 35Hz
- Calculated sensitivity †
- 97dB
- High limit
- 2500Hz
- Manufacturer sensitivity
- 97dB
- Voice coil
- 102mm
- 10. basket
- Cast Aluminum
- 20. bl factor
- BL 24.96 Tesla m
- 1. application
- Subwoofer
- 18. moving mass
- Mms 0.132 kg
- 13. dc resistance
- Re 5 Ohm
- 9. magnet gap depth
- 10 mm
- 17. equivalent volume
- Vas 135 L
- 2. nominal impendance
- 8 Ohm
- 5. frequency response
- 35 – 2500 Hz
- 6. voice coil diameter
- 101.6 (4″) mm
- 7. voice coil material
- Cu
- 12. resonance frequency
- Fs 39.8 Hz
- 14. mechanical q factor
- Qms 6.60
- 15. electrical q factor
- Qes 0.27
- 16. total quality factor
- Qts 0.26
- 19. mechanical complience
- Cms 0.12 mm / N
- 21. effective piston area
- Sd 0.0897 m²
- 22. max. linear excursion
- Xmax +/- 7.5 mm
- 23. voice coil inductance
- Le1k 0.73 mH
- 4. sensitivity (1 w / 1 m)
- 97 dB
- 3. power handling aes noise
- 1200 W
- 8. voice coil winding depth
- 25 mm
- 11. effect. diaphragm diameter d
- 335 mm
