- Net volume
- 100L
- Tuning
- 45Hz
Eighteen Sound gives the volume and tuning; the port is sized for the driver when you open it.

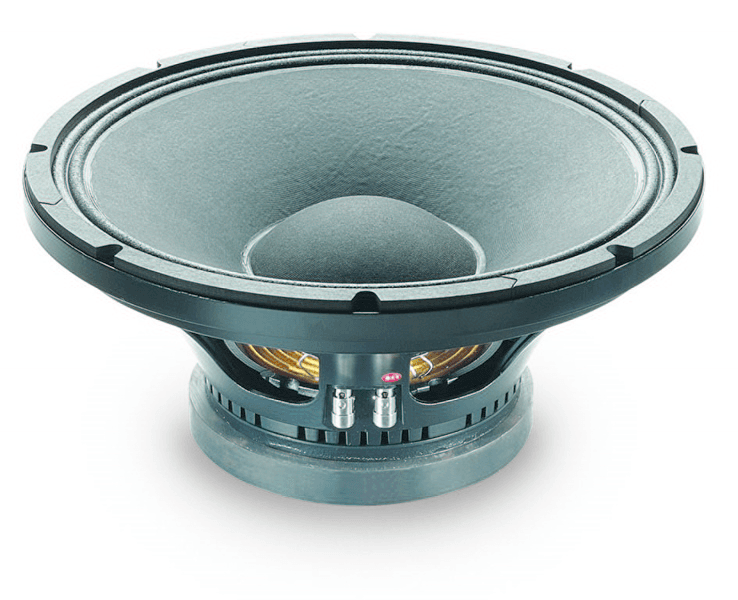

15-inch LF driver · 500 W
Eighteen Sound 15W600 8Ω
8 Ω · 38–4400 Hz
No current price
- Fs
- 38Hz
- Xmax
- 6.5mm
- SPL
- 97dB
- Pe
- 500W
- BL
- 20.5T·m
- Vd
- 585cm³
- Qts
- 0.29
- Vas
- 183L

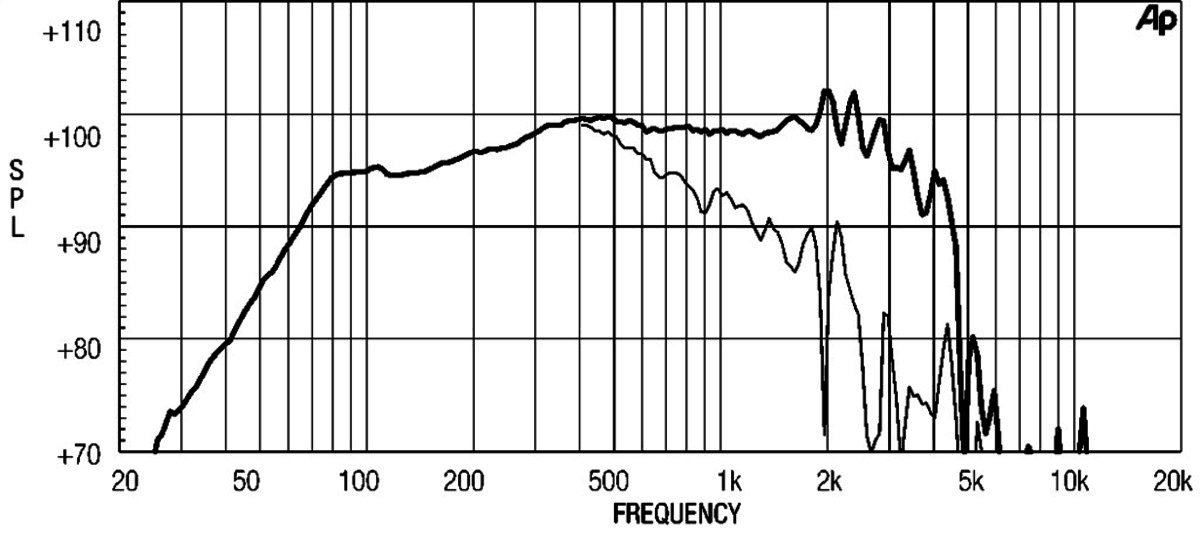

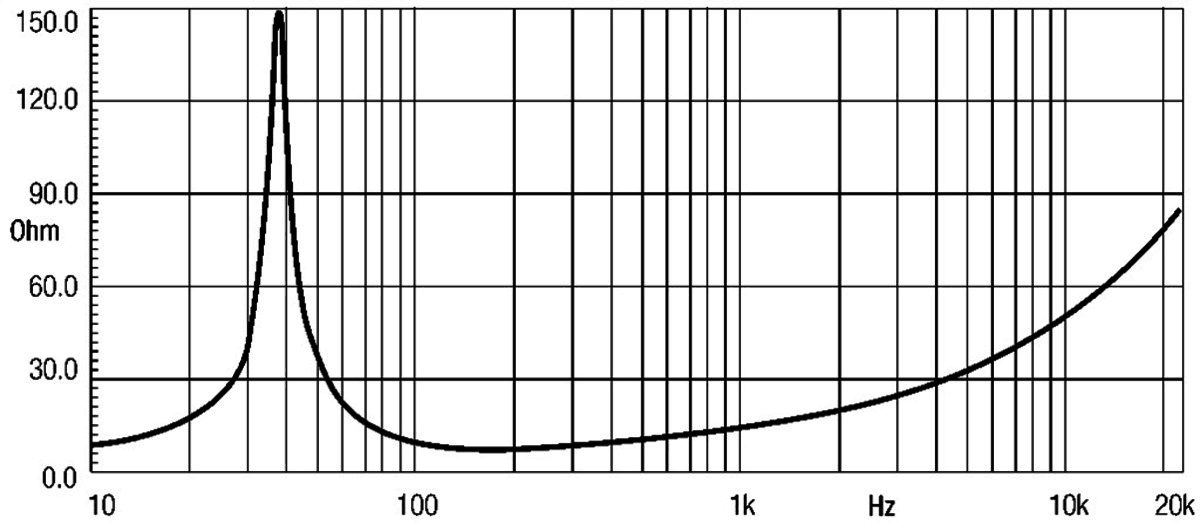

Published graphs
Eighteen Sound 15W600 is a 15-inch 8 ohm LF driver rated at 500 W RMS. The validated T/S data includes Fs 38 Hz, Qts 0.29, Vas 183 L, Xmax 6.5 mm, sensitivity 97.3 dB, plus 585 cm³ Vd and 127 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 38Hz
- Qts
- 0.29
- Qes
- 0.30
- Qms
- 7.2
- Vas
- 183L
- Re
- 5.6Ω
- Le
- 1.85mH
Motor and cone
- BL
- 20.5T·m
- Sd
- 900cm²
- Mms
- 93g
- Xmax
- 6.5mm
- Vd †
- 585cm³
Power and response
- Sensitivity †
- 97.3dB
- Manufacturer sensitivity
- 98dB
- Power
- 500W
- Nominal power
- 500W
- Impedance
- 8Ω
- Range
- 38–4400Hz
- EBP †
- 127 · Leans vented
Size and mounting
- Diameter
- 387mm
- Cutout
- 353mm
- Bolt circle
- 370mm
- Depth
- 168mm
- Weight
- 8.6kg
Other published values
- Power Program
- 600
† Calculated by bits from the published values
What this validation status means
Everything else Eighteen Sound lists
LF · Primary · 15″
- BL
- 20.5T·m
- Fs
- 38Hz
- Le
- 1.85mH
- Re
- 5.6Ω
- Sd
- 900cm²
- Mms
- 93g
- Qes
- 0.30
- Qms
- 7.2
- Qts
- 0.29
- SPL
- 97.3dB
- Vas
- 183L
- Xmax
- 6.5mm
- Power
- 500W
- Impedance
- 8Ω
- Sensitivity
- 98dB
- Low limit
- 38Hz
- Nominal power
- 500W
- Power Program
- 600
- Calculated sensitivity †
- 97.3dB
- High limit
- 4400Hz
- Manufacturer sensitivity
- 98dB
- Weight
- 8.6kg
- Diameter
- 387mm
- Depth
- 168mm
- Cutout
- 353mm
- Bolt circle
- 370mm
02
Designs
What Eighteen Sound suggests for the 15W600. No published designs name it yet.
How we find designsEighteen Sound’s suggested box
From Eighteen Sound’s 15W600 page
Open this box in 00 Simulator
Modelling the box in 00 Simulator…
03
Compare
Same-size drivers, compared with the 15W600. Clear differences are green when better and red when worse.
This driver15W600
Best price
–
Fs
38 Hz
Qts
0.29
Vas
183 L
BL
20.5 T·m
Xmax
6.5 mm
Sensitivity
97.3 dB
Power
500 W
CelestionTF1530
£119.96Fs42 Hz +11%, worse
Qts0.28 −3%
Vas162.2 L −11%, better
BL21.2 T·m +4%
Xmax4 mm −38%, worse
Sensitivity97.9 dB +0.6
MonacorTF1530/8
£134.32Fs42 Hz +11%, worse
Qts0.28 −3%
Vas162.2 L −11%, better
BL21.2 T·m +4%
Xmax4 mm −38%, worse
Sensitivity97.9 dB +0.6
Beyma15WR400
£165.43Fs36 Hz −5%
Qts0.30 +3%
Vas236 L +29%, worse
BL19.2 T·m −6%
Xmax6.3 mm −3%
Sensitivity97.5 dB –
B&C15CLA76
£165.58Fs40 Hz +5%
Qts0.30 +3%
Vas176 L −4%
BL19.8 T·m −3%
Xmax5.5 mm −15%, worse
Sensitivity97.6 dB –
EminenceKAPPA PRO-15LF
£166.34Fs35 Hz −8%
Qts0.30 +3%
Vas198.8 L +9%
BL21.6 T·m +5%
Xmax6.7 mm +3%
Sensitivity96.3 dB −1
Eighteen Sound15MB700
£174.30Fs42 Hz +11%, worse
Qts0.29 –
Vas202 L +10%, worse
BL17.6 T·m −14%, worse
Xmax5.5 mm −15%, worse
Sensitivity98.9 dB +1.6
Eighteen Sound15W700
£179.10Fs38 Hz –
Qts0.30 +3%
Vas217 L +19%, worse
BL18.4 T·m −10%, worse
Xmax6.5 mm –
Sensitivity97.6 dB –
B&C15PS76
£185.00Fs38 Hz –
Qts0.26 −10%, better
Vas164 L −10%, better
BL22.1 T·m +8%
Xmax7.5 mm +15%, better
Sensitivity97.1 dB –
Beyma14MC700ND
£229.73Fs51 Hz +34%, worse
Qts0.28 −3%
Vas78 L −57%, better
BL22 T·m +7%
Xmax7 mm +8%
Sensitivity97.4 dB –
Eighteen Sound15ND830
£239.90Fs39 Hz –
Qts0.32 +10%, worse
Vas213 L +16%, worse
BL18 T·m −12%, worse
Xmax6.5 mm –
Sensitivity97.6 dB –
FaitalPRO15FX560
£245.00Fs38 Hz –
Qts0.30 +3%
Vas159 L −13%, better
BL21.5 T·m +5%
Xmax9.4 mm +45%, better
Sensitivity96.5 dB −0.8
Eighteen Sound15ND940
£255.47Fs38 Hz –
Qts0.28 −3%
Vas174 L −5%
BL21.9 T·m +7%
Xmax9.5 mm +46%, better
Sensitivity97.2 dB –
Eighteen Sound15MB1000
£259.50Fs48 Hz +26%, worse
Qts0.31 +7%
Vas132.5 L −28%, better
BL21 T·m –
Xmax6 mm −8%
Sensitivity98.6 dB +1.3
Sica15 K 3 PL
£274.56Fs40 Hz +5%
Qts0.27 −7%
Vas166.1 L −9%
BL21.4 T·m +4%
Xmax6.5 mm –
Sensitivity97.8 dB +0.5
Eighteen Sound15ND730
£274.91Fs44 Hz +16%, worse
Qts0.29 –
Vas156 L −15%, better
BL21 T·m –
Xmax6.5 mm –
Sensitivity98.5 dB +1.2
Eighteen Sound15NMB420
£291.97Fs42 Hz +11%, worse
Qts0.29 –
Vas225 L +23%, worse
BL19 T·m −7%
Xmax6.5 mm –
Sensitivity99.5 dB +2.2, better
Eighteen Sound15LW1500
£318.00Fs34 Hz −11%, better
Qts0.28 −3%
Vas195 L +7%
BL22.1 T·m +8%
Xmax9 mm +38%, better
Sensitivity96.2 dB −1.1
MonacorFTX1530/8
£359.03Fs43 Hz +12%, worse
Qts0.28 −5%
Vas172.1 L −6%
BL20.2 T·m –
Xmax6 mm −8%
Sensitivity98.5 dB +1.2
B&C15CXN76
£396.97Fs38 Hz –
Qts0.28 −3%
Vas246 L +34%, worse
BL17.8 T·m −13%, worse
Xmax6 mm −8%
Sensitivity98.6 dB +1.3
B&C15HCX76
£399.49Fs38 Hz –
Qts0.28 −3%
Vas246 L +34%, worse
BL17.8 T·m −13%, worse
Xmax6 mm −8%
Sensitivity98.6 dB +1.3
Oberton15B450 / 15B450A / 15B450A2
No current priceFs45 Hz +19%, worse
Qts0.29 –
Vas146.8 L −20%, better
BL20.4 T·m –
Xmax6.8 mm +4%
Sensitivity98.6 dB +1.3
CelestionFTX1530
No current priceFs43 Hz +12%, worse
Qts0.28 −5%
Vas172.1 L −6%
BL20.2 T·m –
Xmax6 mm −8%
Sensitivity98.5 dB +1.2
Beyma15XA38ND
No current priceFs38 Hz –
Qts0.30 +3%
Vas238 L +30%, worse
BL20.4 T·m –
Xmax6 mm −8%
Sensitivity98.3 dB +1
CelestionNTR15-3018E
No current priceFs35 Hz −8%
Qts0.28 –
Vas207.3 L +13%, worse
BL21.1 T·m –
Xmax5 mm −23%, worse
Sensitivity96.7 dB −0.6
No photo
PHL Audio5021M
No current priceFs32 Hz −16%, better
Qts0.30 +3%
Vas169 L −8%
BL24 T·m +17%, better
Xmax7 mm +8%
Sensitivity94.4 dB −2.9, worse
Oberton15NMB500
No current priceFs45 Hz +18%, worse
Qts0.29 –
Vas128.0 L −30%, better
BL21.3 T·m +4%
Xmax7.8 mm +19%, better
Sensitivity97.9 dB +0.6
Eighteen Sound15NTLW2500
No current priceFs45 Hz +18%, worse
Qts0.30 +3%
Vas143 L −22%, better
BL21.2 T·m +3%
Xmax8 mm +23%, better
Sensitivity98.3 dB +1
Oberton15NMB35
No current priceFs39 Hz –
Qts0.34 +16%, worse
Vas177.5 L −3%
BL18.5 T·m −10%
Xmax6.8 mm +4%
Sensitivity96.8 dB −0.5
Oberton15B500
No current priceFs38 Hz –
Qts0.27 −8%
Vas145.8 L −20%, better
BL22.9 T·m +12%, better
Xmax7.3 mm +12%, better
Sensitivity96.8 dB −0.5
Oberton15HCX
No current priceFs41 Hz +7%
Qts0.30 +3%
Vas205.5 L +12%, worse
BL17.1 T·m −17%, worse
Xmax7.8 mm +19%, better
Sensitivity98.5 dB +1.2
Tune the match
Choose the published values that matter to your design. Size stays matched to this driver.
Qts
Qes
VasL
Xmaxmm
BLTm
No current price found. Pricing may appear after the next vendor refresh.
