15-inch LF driver · 15NMB series · 88 mm voice coil · 600 W
Oberton 15NMB35 8Ω
8 Ω · 45–3000 Hz
No price for delivery to the UK
- Fs
- 39Hz
- Xmax
- 6.8mm
- SPL
- 97dB
- Pe
- 600W
- BL
- 18.5T·m
- Vd
- 560cm³
- Qts
- 0.34
- Vas
- 177L

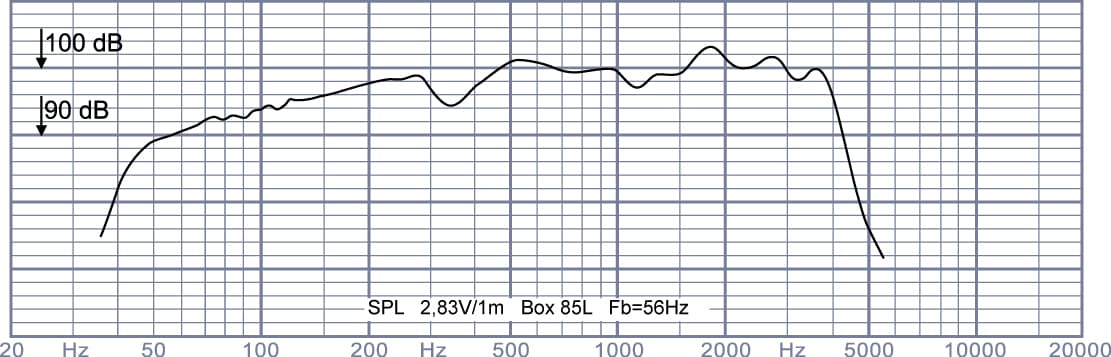

Published graphs
Oberton 15NMB35 is a 15-inch 8 ohm LF driver rated at 600 W RMS. The validated T/S data includes Fs 39 Hz, Qts 0.34, Vas 177.5 L, Xmax 6.8 mm, sensitivity 96.8 dB, plus 560 cm³ Vd and 112 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
The published T/S values agree with each other
Thiele/Small
- Fs
- 39Hz
- Qts
- 0.34
- Qes
- 0.35
- Qms
- 8.9
- Vas
- 177.5L
- Re
- 5.4Ω
- Le
- 0.88mH
Motor and cone
- BL
- 18.5T·m
- Sd
- 830cm²
- Mms
- 91g
- Xmax
- 6.8mm
- Vd †
- 560cm³
- Voice coil
- 88mm
- Flux density
- 1.05T
Power and response
- Sensitivity †
- 96.8dB
- Manufacturer sensitivity
- 200dB
- Power
- 600W
- Impedance
- 8Ω
- Min. impedance
- 6.3Ω
- Range
- 45–3000Hz
- EBP †
- 112 · Leans vented

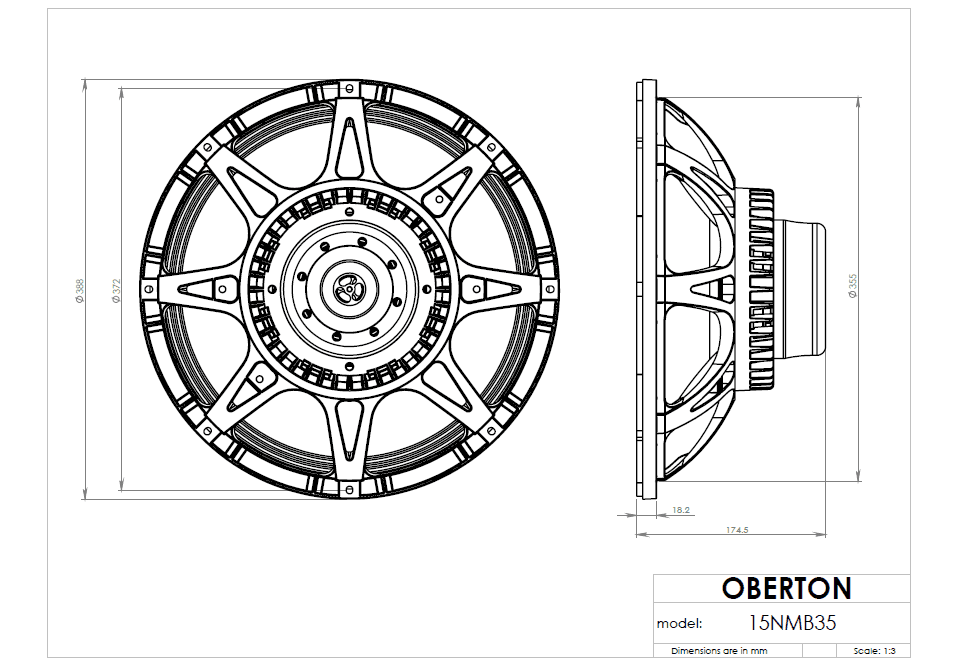

Size and mounting
- Diameter
- 388mm
- Cutout
- 355mm
- Bolt circle
- 372mm
- Depth
- 174.5mm
- Weight
- 5.3kg
Other published values
- Cms
- 0.18mm/N
- Power Program
- 1200
Sensitivity shows 96.8 dB, calculated from the T/S values. Oberton publishes 200.0 dB, 103.2 dB apart.
† Calculated by bits from the published values
What this validation status means
Everything else Oberton lists
LF · Primary · 15″
- BL
- 18.5T·m
- Fs
- 39Hz
- Le
- 0.88mH
- Re
- 5.4Ω
- Sd
- 830cm²
- Cms
- 0.18mm/N
- Mms
- 91g
- Qes
- 0.35
- Qms
- 8.9
- Qts
- 0.34
- SPL
- 96.8dB
- Vas
- 177.5L
- Xmax
- 6.8mm
- Power
- 600W
- Impedance
- 8Ω
- Flux density
- 1.05T
- Sensitivity
- 200dB
- Low limit
- 45Hz
- Power Program
- 1200
- Calculated sensitivity †
- 96.8dB
- High limit
- 3000Hz
- Manufacturer sensitivity
- 200dB
- Min. impedance
- 6.3Ω
- Voice coil
- 88mm
- Weight
- 5.3kg
- Diameter
- 388mm
- Depth
- 174.5mm
- Cutout
- 355mm
- Bolt circle
- 372mm
