LF Driver15CX series
Oberton
Oberton 15CX
Oberton 15CX is a 15" 8 ohm LF driver rated at 450W RMS. The validated T/S data includes Fs 38Hz, Qts 0.35, Vas 163.8L, Xmax 7mm, sensitivity 95.9dB, plus 580cm³ Vd and 103 EBP. bits tracks vendor pricing, datasheet links, simulator import data, and similar drivers from the same loudspeaker database.
Size
15"
Impedance
8Ω
RMS Power
450W
Sensitivity
95.9dB
EBP
103
Vented alignment
Vd
580cm³
T/S Parameters
Valid
Fs38Hz
Qts0.35
Qes0.37
Qms5.6
Vas163.8L
Re5.2Ω
Le0.69mH
BL18.4Tm
Sd829cm²
Mms102g
Xmax7.0mm
SPL96dB
Power450W
Impedance8Ω
F Low50Hz
F High16000Hz
Voice Coil77mm
Flux Density1.15T
Pricing & availability
Price definitionsNo current price found
Pricing may appear after the next vendor refresh.
Use this driver
Open it in 00 Simulator, download it for your enclosure tool, or copy the specification values.
Files use canonical values. Required mechanical fields are derived only where the target format needs them.
WinISD
.wdr · WinISD driver editor
Native WinISD driver record with the required SI conversions.
Download for WinISDBASTA!
.bastaelement · BASTA! loudspeaker simulator
Native BASTA! element file using its documented SI-unit fields.
Download for BASTA!VituixCAD
.wdr · VituixCAD 2 Enclosure
A WinISD driver file that VituixCAD imports directly.
Download for VituixCAD00 Simulator
Direct import · Web app
Start a new enclosure simulation with this driver already loaded.
Open in 00 SimulatorCopy spec sheet
Plain text · Clipboard
Copy the available values as a clean label-and-value list.

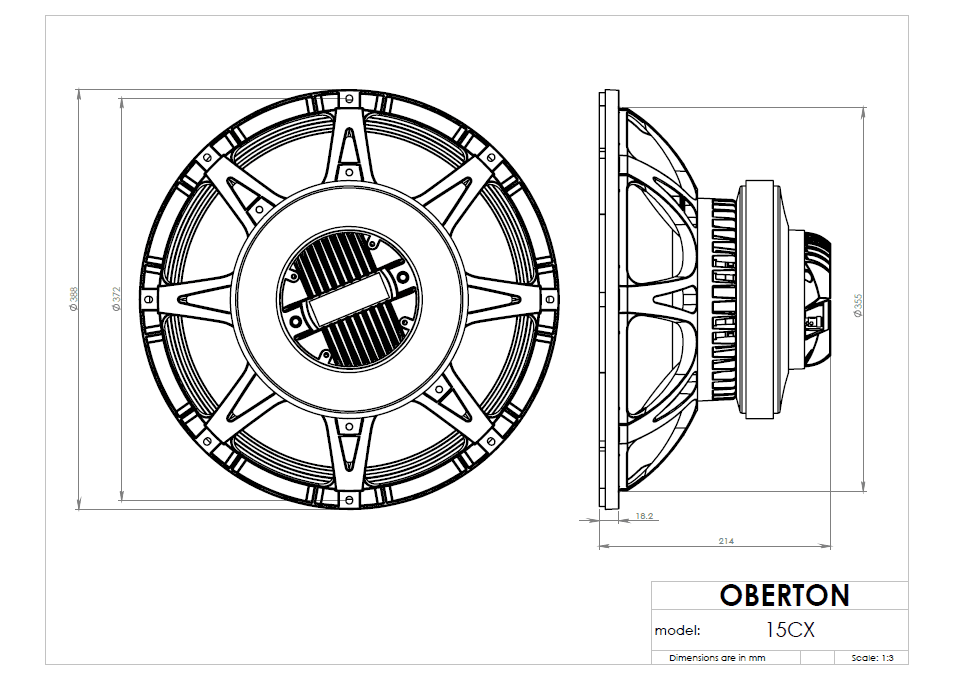

Dimensions & Physical
Weight10.9kg
Diameter388.0mm
Overall Depth214.0mm
Cutout Diameter355.0mm
Bolt Circle Diameter372.0mm
